METAL(COUNTER)SYSTEM(1782-122-0100)

METAL(COUNTER)SYSTEM(1782-122-0100) assembly details for Iseki CHASSIS SXG15(F2 & C TYPE)(1782-095-200-00) SXG15 model

Parts list

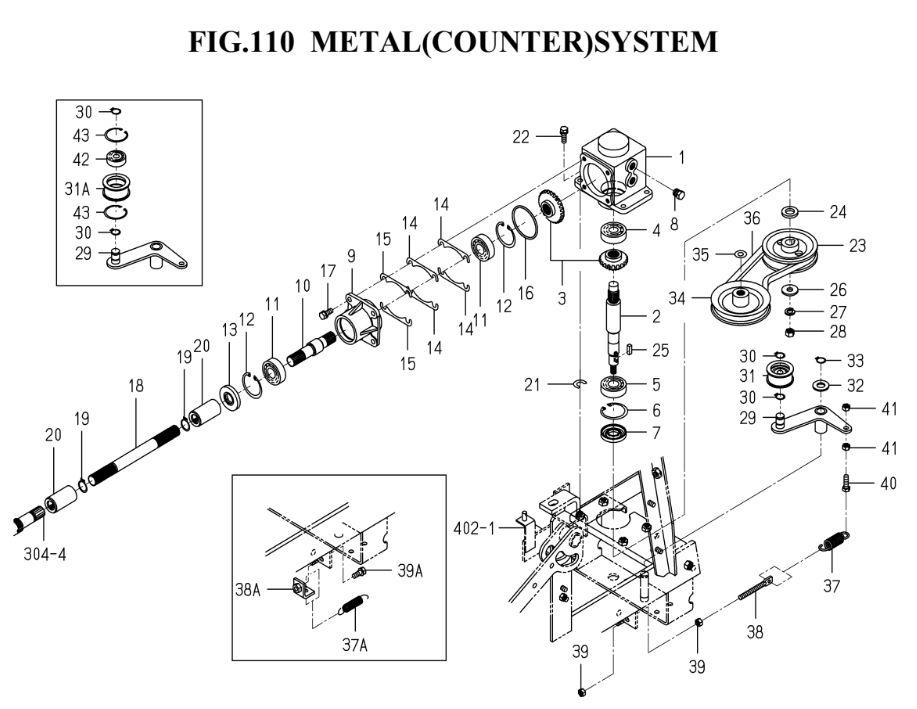

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001178212200100METAL/COUNTERN/A POA
002178212200210SHAFT/OUTPUT£164.00 Add to
003867020122000GEAR/BEVEL/23-1 SET£153.02 Add to
004V60011063030BEARING,RB/6303£11.16 Add to
005V60011062040BEARING,RB/6204£14.87 Add to
006V70514004700RING,SNAP/47 C£2.98 Add to
007V74412047070SEAL,OIL/TC20477£7.48 Add to
008795520102600PLUG,DRAIN (1/4)£7.42 Add to
009867020100600METAL/CASE£73.89 Add to
010867020100700SHAFT/CASE£92.67 Add to
011V60011062040BEARING,RB/6204£14.87 Add to
012V70514004700RING,SNAP/47 C£2.98 Add to
013V74412047070SEAL,OIL/TC20477£7.48 Add to
01486632020500SHIM/0.1N/A POA
015866320205600SHIM/0.2£2.86 Add to
016V72110310600O-RING/G60£3.49 Add to
018867020100800SHAFT/JOINT£69.15 Add to
019V70414002000RING,SNAP/20C£1.92 Add to
020160232100400COUPLING/18X30X55£23.68 Add to
021382254400900SHIM/13X25X0.5N/A POA
022V21166080250BOLT,SP/M8X25/7TN/A POA
023178212200300PULLEY/VB097£55.58 Add to
024178212201300WASHER/17X30X05N/A POA
025375012101100KEY£7.58 Add to
026365917000300WASHER/11X30X3£2.89 Add to
027V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
028V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
029178212222000ARM/TENSION/HST COMP£41.65 Add to
030V70414001500RING,SNAP/15 C£1.76 Add to
031A178212201400PULLEY/FT045X020£35.03 Add to
032V41126001400WASHER,PL/M14 (SSM60 100001-)£1.91 Add to
033V70414001500RING,SNAP/15 C£1.76 Add to
034178212221010PULLEY/VB101 COMP£47.48 Add to
035V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
036178212201200BELT/VB027£43.16 Add to
037A110441000700SPRING/HE074£9.15 Add to
038A178212231000PLATE/L/25X35 COMP£4.69 Add to
039AV21166080200BOLT,SP/M8X20/7T£2.69 Add to
040V20146080250BOLT/M 8X25 (100545-)N/A POA
041V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
042V60035062020BEARING,RB/6202SSN/A POA
043V70514003500RING,SNAP/35 C (-100295)£2.64 Add to
