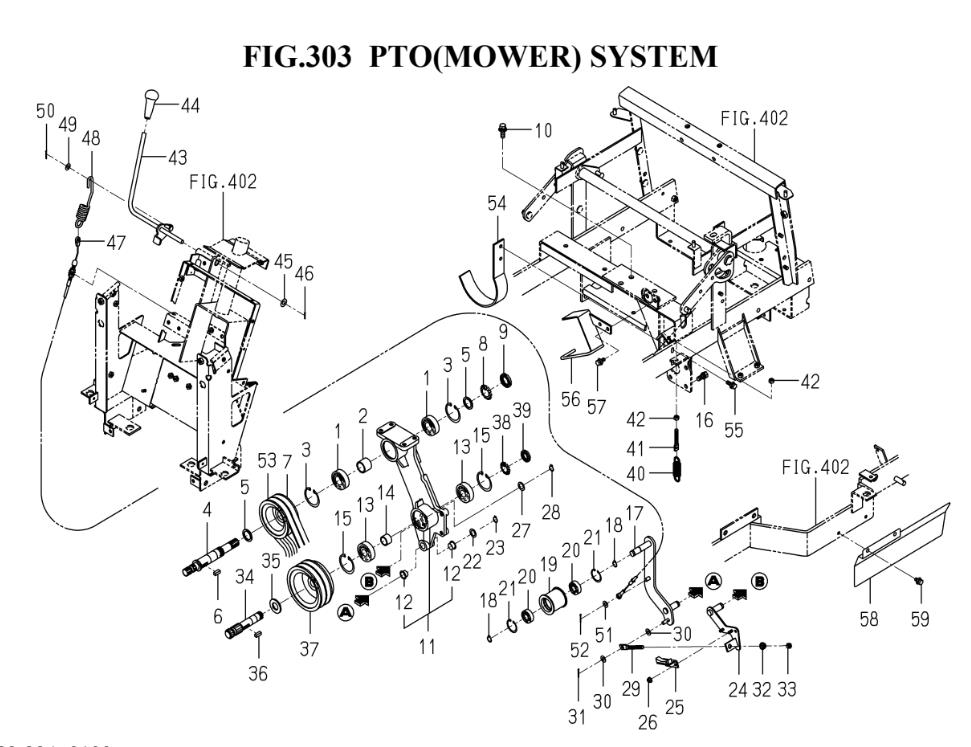

PTO(MOWER)SYSTEM(1782-334-0100) assembly details for Iseki CHASSIS SXG15 (1782-095-100-00) SXG15 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | V60015062050 | BEARING,RB/6205SS | £23.24 | Add to |
002 | 178233400300 | COLLAR/26X32X25 | £5.48 | Add to |
003 | V70514005200 | RING,SNAP/52C (SXG19 -6253) (SXG22 -2066) | £3.96 | Add to |
004 | 178233402300 | SHAFT/INPUT | £108.38 | Add to |
005 | 367052000800 | WASHER/25X34X02 | N/A | POA |
006 | 251220500300 | KEY/07X07X19 | £2.32 | Add to |
007 | 178233402100 | PULLEY/V2B104 | £104.30 | Add to |
008 | V67140000500 | WASHER, ADAPTOR/AW05 | £3.78 | Add to |
009 | V67020000500 | NUT,ADAPTER/AN05 | £6.56 | Add to |
010 | V21166100300 | BOLT,SP/M10X30/7T (470-) | £2.65 | Add to |
011 | 178233431010 | METAL/PTO ASSY | £211.44 | Add to |
012 | 250240700110 | BUSH/15X17X11 | £10.96 | Add to |
013 | V60015063040 | BEARING,RB/6304SS | £13.28 | Add to |
014 | 178233400600 | COLLAR/21X25X18 | £4.82 | Add to |
015 | V70514005200 | RING,SNAP/52C (SXG19 -6253) (SXG22 -2066) | £3.96 | Add to |
016 | V21156100250 | BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050) | £3.49 | Add to |
017 | 178233441000 | ARM/TENSION COMP | £54.59 | Add to |
018 | V70414001500 | RING,SNAP/15 C | £1.76 | Add to |
019 | 866320106200 | PULLEY/TENSION/50X46 | £68.20 | Add to |
020 | V60035062020 | BEARING,RB/6202SS | N/A | POA |
021 | V70514003500 | RING,SNAP/35 C (-100295) | £2.64 | Add to |
022 | 351720500700 | WASHER | £2.18 | Add to |
023 | V70414001500 | RING,SNAP/15 C | £1.76 | Add to |
024 | 178233427010 | ARM/PTO/BRAKE COMP | £27.02 | Add to |
025 | 172833428000 | LINING/PTOBRAKE COMP | £18.32 | Add to |
026 | V36026000600 | NUT/WASHER/M6 | £1.47 | Add to |
027 | 351720500700 | WASHER | £2.18 | Add to |
028 | V70414001500 | RING,SNAP/15 C | £1.76 | Add to |
029 | 381411400100 | ROD/M8X92 | N/A | POA |
031 | V50016250200 | PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-) | £1.64 | Add to |
032 | V36226000800 | NUT/WASHER/M8 | £1.77 | Add to |
033 | V30426000800 | NUT/M8 (SSM54 -100000) | £1.64 | Add to |
034 | 178233402400 | SHAFT/PTO | £87.73 | Add to |
035 | V41126002000 | WASHER,PL/M20 | £2.73 | Add to |
036 | 251220500300 | KEY/07X07X19 | £2.32 | Add to |
037 | 178233402200 | PULLEY/V2B123 | £122.77 | Add to |
038 | V67140000400 | WASHER,ADAPTER/AW04 | £4.57 | Add to |
039 | V67020000400 | NUT,ADAPTER/AN04 | £5.21 | Add to |
040 | 156040400230 | SPRING (SXG19 -1520) (SXG22 -581) | £4.84 | Add to |
041 | 383820300100 | ROD/08X057 | £8.86 | Add to |
042 | V30426000800 | NUT/M8 (SSM54 -100000) | £1.64 | Add to |
043 | 178233433000 | LEVER/PTO COMP | £33.16 | Add to |
044 | 170533300100 | GRIP/PTO | £7.70 | Add to |
045 | V41126001000 | WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-) | £1.52 | Add to |
046 | V50016250150 | PIN,SPLIT/2.5X15 (-194) (100545-) | £1.60 | Add to |
047 | 178233428020 | CABLE/PTO ASSY | £41.23 | Add to |
048 | 170533200600 | SPRING/HE138 | £15.02 | Add to |
050 | V50016250200 | PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-) | £1.64 | Add to |
052 | V50016250200 | PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-) | £1.64 | Add to |
053 | 178233402500 | BELT/VB031 | £69.35 | Add to |
054 | 178233445000 | GUIDE/BELT/LOWER COMP | £33.98 | Add to |
055 | V21136080250 | BOLT,SP/M8X25 | £1.90 | Add to |
056 | 178233444000 | STOPPER/BELT COMP | N/A | POA |
057 | V21136080200 | BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049) | £2.10 | Add to |
058 | 178233401410 | COVER/JOINT | £26.71 | Add to |
059 | V21136080160 | BOLT,SP/M8X16 | £2.10 | Add to |
