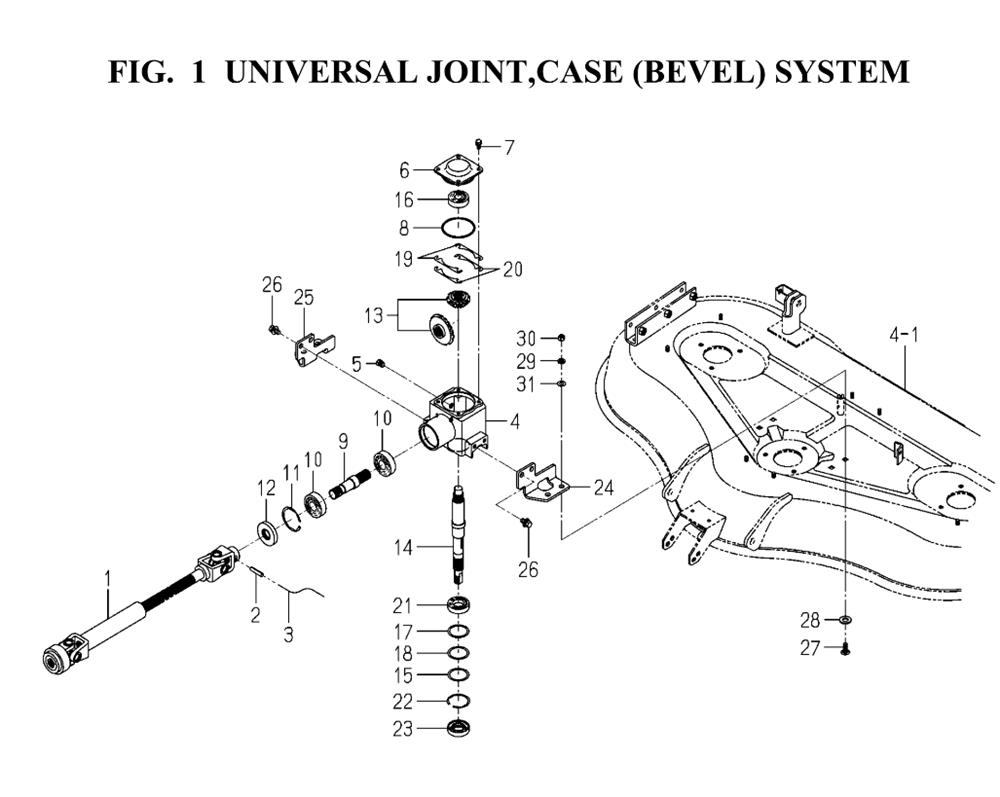

UNIVERSAL JOINT, CASE(BEVEL)SYSTEM(8658-101D-0100,8658-201F-0100)

UNIVERSAL JOINT, CASE(BEVEL)SYSTEM(8658-101D-0100,8658-201F-0100) assembly details for Iseki PC SMM54 FOR SXG22 (8658-097-120-00) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001865810131010JOINT/UNIVERSAL SET£412.23 Add to
002V58014080400PIN,SPRING/8X40 W (-200000)£2.95 Add to
004859520101110CASE/BEVEL WAS 859520101100£546.67 Add to
005795520102600PLUG,DRAIN (1/4)£7.42 Add to
006859520101200COVER/CASE£96.09 Add to
007V21126080160BOLT,S/M8X16£2.09 Add to
008V72110310800O-RING/1A,G80£3.66 Add to
009859520101300SHAFT/INPUT£106.26 Add to
010159421800100BEARING/BALL 6305SH2£23.24 Add to
011V70714006200RING,SNAP/R62£5.06 Add to
012859520102500SEAL/OIL£11.39 Add to
013859520141000GEAR/BEVEL/28-1 SET£339.76 Add to
014865820103100SHAFT/OUTPUT£291.11 Add to
015859520101500WASHER/45X55X01£6.26 Add to
016V60011063040BEARING,RB/6304£16.94 Add to
017859520101600SHIM/0.1£6.67 Add to
018859520101700SHIM/0.2£6.26 Add to
019859520102100SHIM/0.1£7.23 Add to
020859520102200SHIM/0.2£7.23 Add to
021V60011060060BEARING/BALL RB 6006£15.95 Add to
022V70514005500RING/SNAP£3.96 Add to
023V74413055120SEAL,OIL/TC305512£14.40 Add to
024865920100200BRACKET/CASE/LH£106.26 Add to
025865920100300BRACKET/CASE/RH£106.26 Add to
026V21166100200BOLT,SP/M10X207T£2.86 Add to
027859730100200BOLT/M10X25£3.86 Add to
028V41126001400WASHER,PL/M14 (SSM60 100001-)£1.91 Add to
029V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
030V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
031V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
