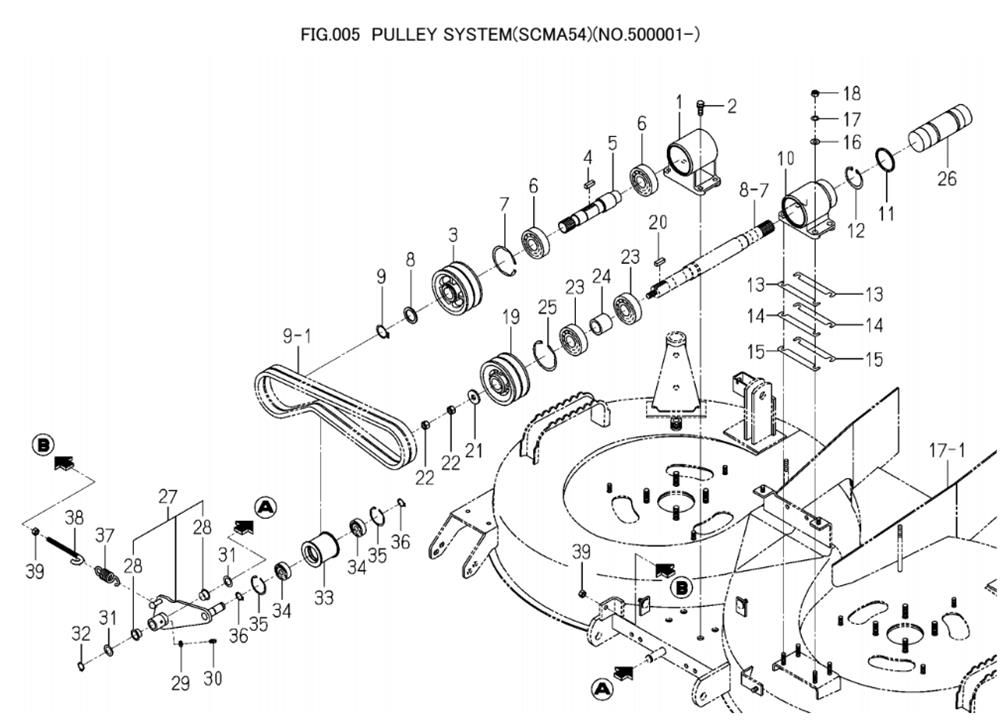

PULLEY SYSTEM (SCMA54)(NO.500001-))

PULLEY SYSTEM (SCMA54)(NO.500001-)) assembly details for Iseki PC SCMA54SXG22E4BF DECK (8663-097-130-10 SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001867420100100METAL/INPUT£217.49 Add to
002V21156080250BOLT,S/M8X25/7T (SXG19 -6253) (SXG22 -2066)£2.59 Add to
003866520105100PULLEY/V2B93£105.04 Add to
004866320105400KEY/07X07X22£2.72 Add to
005867420100200SHAFT/INPUT£69.02 Add to
006V60015063050BEARING,RB/6305SSN/A POA
007V70714006200RING,SNAP/R62£5.06 Add to
008141521660200WASHER/26X35X2£1.93 Add to
009V70414002500RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)£2.10 Add to
010867420100310METAL/PULLEY£454.01 Add to
011V72010350440O-RING/P44£6.56 Add to
012V70514004500RING,SNAP/45 CN/A POA
013867420100700SHIM/0.2N/A POA
014866320106600SHIM/0.5£2.73 Add to
015866320106800SHIM/1.0£2.44 Add to
017V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
018V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
019866320105710PULLEY V2B90£105.04 Add to
020866320105400KEY/07X07X22£2.72 Add to
021866320106300WASHER/11X30X03£2.15 Add to
022V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
023V60015063050BEARING,RB/6305SSN/A POA
024867420100400COLLAR/25X34X30£11.80 Add to
025V70714006200RING,SNAP/R62£5.06 Add to
026866520107100TUBE/137N/A POA
027866320151050TENSION ARM£64.39 Add to
028250240700110BUSH/15X17X11£10.96 Add to
029V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
030V76015000000NIPPLE, GREASE£3.96 Add to
031351720500700WASHER£2.18 Add to
032V70414001500RING,SNAP/15 C£1.76 Add to
033866320106210PULLY/FT050X046£84.02 Add to
034V60035062020BEARING,RB/6202SSN/A POA
035V70514003500RING,SNAP/35 C (-100295)£2.64 Add to
036V70414001500RING,SNAP/15 C£1.76 Add to
037133740100600SPRING£13.04 Add to
038373734100700ROD,CHAIN TENSION£7.04 Add to
039V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
