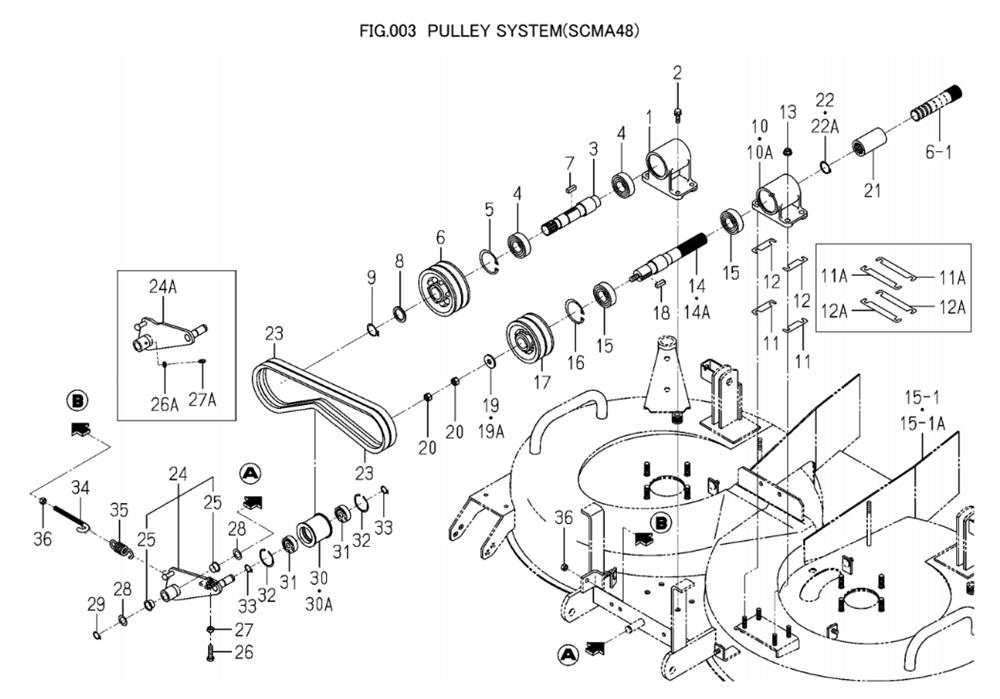

PULLEY SYSTEM (SCMA48)

PULLEY SYSTEM (SCMA48) assembly details for Iseki PC SCMA54SXG22E4BF DECK (8663-097-130-10 SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001866320105100METAL/INPUT£98.48 Add to
002V21126080250BOLT,S/M8X25 (SRM48 200001-)£1.94 Add to
003866320105200SHAFT/INPUT£91.18 Add to
004V60015062050BEARING,RB/6205SS£23.24 Add to
005V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
006866320105300PULLEY/V2B102£108.82 Add to
007866320105400KEY/07X07X22£2.72 Add to
008141521660200WASHER/26X35X2£1.93 Add to
009V70414002500RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)£2.10 Add to
010866320105500METAL/OUTPUT£103.99 Add to
010A866320105510METAL/OUTPUT£89.01 Add to
011866320105900SHIM/1.0£2.76 Add to
011A866320106600SHIM/0.5£2.73 Add to
012866320106100SHIM/0.5£2.76 Add to
012A866320106800SHIM/1.0£2.44 Add to
013V36326000800NUT/WASHER/M8 (SSM60 -100000)£2.30 Add to
014866320105610SHAFT/48/LH/FRONT£134.37 Add to
014A866320105610SHAFT/48/LH/FRONT£134.37 Add to
015V60015062050BEARING,RB/6205SS£23.24 Add to
016V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
017866320105710PULLEY V2B90£105.04 Add to
018866320105400KEY/07X07X22£2.72 Add to
019365917000300WASHER/11X30X3£2.89 Add to
019A866320106300WASHER/11X30X03£2.15 Add to
020V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
021156022000410COUPRING/21X36X65£66.54 Add to
022V70414002500RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)£2.10 Add to
022A172521800600RING/SNAP/CS25£1.77 Add to
023866320105810BELT/VB036£74.80 Add to
024866320151030ARM/TENSION ASSY£74.59 Add to
024A866320151050TENSION ARM£64.39 Add to
025250240700110BUSH/15X17X11£10.96 Add to
026V20126080300BOLT/M 8X30 (SSM54 -100000)£1.85 Add to
026AV40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
027V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
027AV76015000000NIPPLE, GREASE£3.96 Add to
028351720500700WASHER£2.18 Add to
029V70414001500RING,SNAP/15 C£1.76 Add to
030866320106200PULLEY/TENSION/50X46£68.20 Add to
030A866320106210PULLY/FT050X046£84.02 Add to
031V60015062020BEARING,RB/6202SS£16.42 Add to
032V70514003500RING,SNAP/35 C (-100295)£2.64 Add to
033V70414001500RING,SNAP/15 C£1.76 Add to
034373734100700ROD,CHAIN TENSION£7.04 Add to
035133740100600SPRING£13.04 Add to
036V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
