CASE(BEVEL)SYSTEM(SCMA54)(NO.500001-))

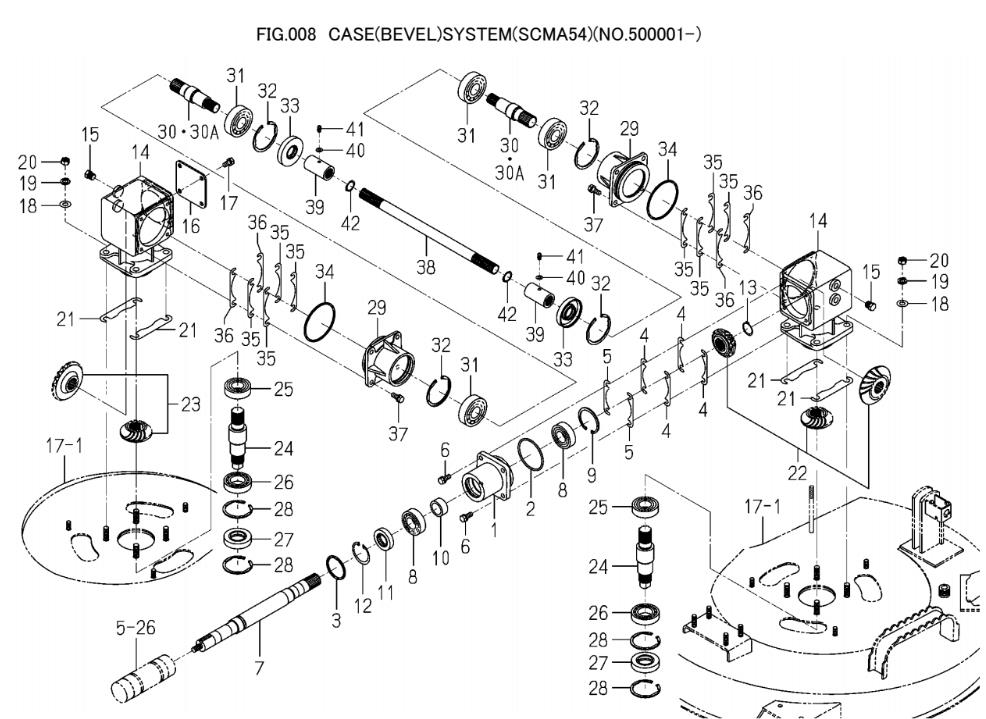

CASE(BEVEL)SYSTEM(SCMA54)(NO.500001-)) assembly details for Iseki PC SCMA54SXG22E4BF DECK (8663-097-130-10 SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	867420200120	METAL/CASE	£138.63	Add to
002	V72110310650	O-RING/1A,G65	£4.79	Add to
003	V72010350440	O-RING/P44	£6.56	Add to
004	866320205500	SHIM/0.1	£2.86	Add to
005	866320205600	SHIM/0.2	£2.86	Add to
006	V21156080200	BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)	£2.69	Add to
007	866520207100	SHAFT/LH/54	£132.26	Add to
008	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
009	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
010	867420200300	COLLAR/25X34X15	£14.77	Add to
011	V74412845110	SEAL,OIL/TC284511 (SXG19 -6253) (SXG22 -2066)	£8.40	Add to
012	V70514004500	RING,SNAP/45 C	£3.60	Add to
013	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
014	867420200400	CASE/BEVEL	£528.01	Add to
015	795520102600	PLUG,DRAIN (1/4)	£7.42	Add to
016	867420200600	COVER/CASE	N/A	POA
017	V21126080160	BOLT,S/M8X16	£2.09	Add to
018	V41126001000	WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)	£1.52	Add to
019	V40116001000	WASHER,SP/M10 (100545-)	£1.64	Add to
020	V30426001000	NUT/M10 (SXG19 3624-) (SXG22 1179-)	£2.10	Add to
021	867020100510	SHIM/0.2	£3.45	Add to
022	867420221000	GEAR/B/21-25-21 SET	£249.12	Add to
023	867420222000	GEAR/BEVEL/25-2 SET	£174.98	Add to
024	867420200700	SHAFT/BLADE	£82.19	Add to
025	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
026	V60011060060	BEARING/BALL RB 6006	£15.95	Add to
027	V74413055120	SEAL,OIL/TC305512	£14.40	Add to
028	V70514005500	RING/SNAP	£3.96	Add to
029	866720100202	METAL/INPUT	£155.94	Add to
030	867420200910	SHAFT/CASE	£57.81	Add to
030A	867420200910	SHAFT/CASE	£57.81	Add to
031	159421800100	BEARING/BALL 6305SH2	£23.24	Add to
032	V70714006200	RING,SNAP/R62	£5.06	Add to
033	859520102500	SEAL/OIL	£11.39	Add to
034	V72110310800	O-RING/1A,G80	£3.66	Add to
035	859520102100	SHIM/0.1	£7.23	Add to
036	859520102200	SHIM/0.2	£7.23	Add to
037	V21156080200	BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)	£2.69	Add to
038	866520207300	SHAFT/JOINT/54	£51.57	Add to
039	178212205100	COUPLING/18X30X55	£26.10	Add to
040	V41126000600	WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)	£1.64	Add to
041	V76015000000	NIPPLE, GREASE	£3.96	Add to
042	867420201200	RING/SNAP/CS20	£2.04	Add to
