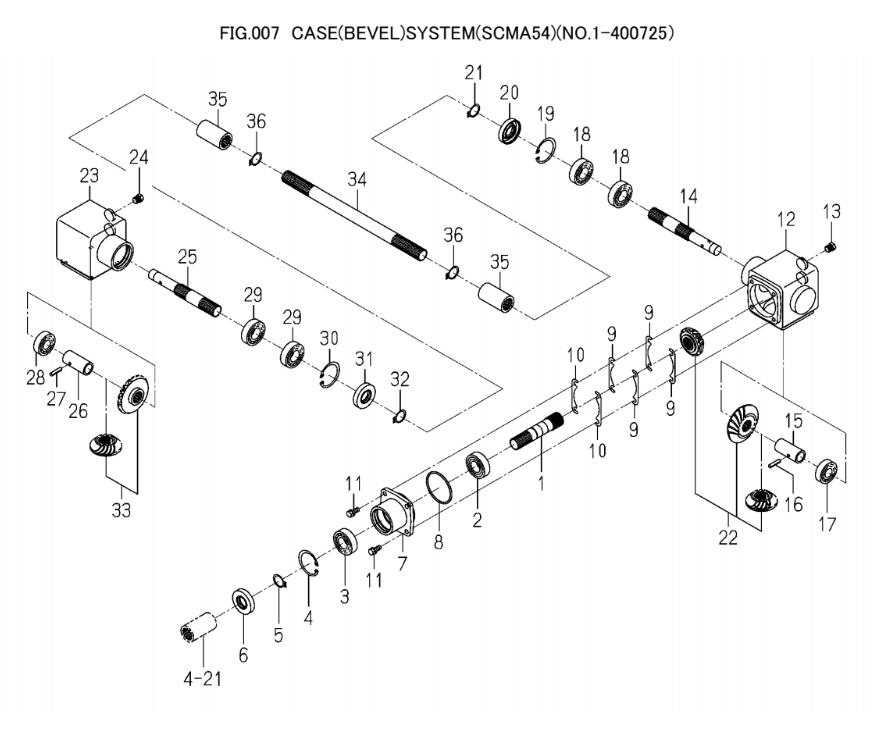

CASE(BEVEL)SYSTEM(SCMA54)(NO.1-400725)

CASE(BEVEL)SYSTEM(SCMA54)(NO.1-400725) assembly details for Iseki PC SCMA54SXG22E4BF DECK (8663-097-130-10 SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	866320205100	SHAFT/LH/REAR	£82.67	Add to
002	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
003	V60011062050	BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)	£16.47	Add to
004	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
005	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
006	V74412552100	SEAL,OIL/TC255210	£8.87	Add to
007	866320205210	METAL/BEVELCASE	£95.53	Add to
008	V72110310650	O-RING/1A,G65	£4.79	Add to
009	866320205500	SHIM/0.1	£2.86	Add to
010	866320205600	SHIM/0.2	£2.86	Add to
012	866320205710	CASE/BEVEL/LH	£210.89	Add to
013	795520102600	PLUG,DRAIN (1/4)	£7.42	Add to
014	866320205800	SHAFT/CASE	£133.23	Add to
015	866320205900	HUB/SPACER	£10.03	Add to
016	V58014060280	PIN,SPRING/6X28 W	£2.12	Add to
017	V60011062040	BEARING,RB/6204	£14.87	Add to
018	V60011062050	BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)	£16.47	Add to
019	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
020	V74412552100	SEAL,OIL/TC255210	£8.87	Add to
021	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
022	8663202061000	GEAR/B/21-25-21 SET	N/A	POA
023	866320206210	CASE/BEVEL/RH	£193.06	Add to
024	795520102600	PLUG,DRAIN (1/4)	£7.42	Add to
025	866320205800	SHAFT/CASE	£133.23	Add to
026	866320205900	HUB/SPACER	£10.03	Add to
027	V58014060280	PIN,SPRING/6X28 W	£2.12	Add to
028	V60011062040	BEARING,RB/6204	£14.87	Add to
029	V60011062050	BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)	£16.47	Add to
030	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
031	V74412552100	SEAL,OIL/TC255210	£8.87	Add to
032	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
033	866320262000	GEAR/BEVEL/25-2 SET	£268.45	Add to
034	866520205100	SHAFT/CENTER/54	£90.76	Add to
035	156022000410	COUPRING/21X36X65	£66.54	Add to
036	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
