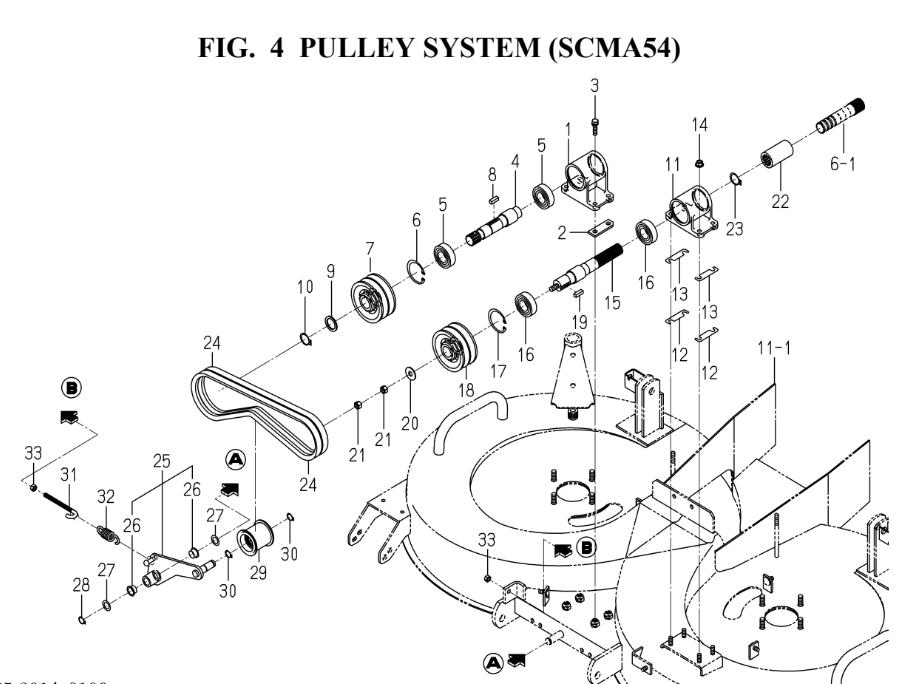

PULLEY SYSTEM (SCMA54)(8665-201A-0100)

PULLEY SYSTEM (SCMA54)(8665-201A-0100) assembly details for Iseki PC SCMA48-54 (B-TYPE)DECK (8663-097-120-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001866320105100METAL/INPUT£98.48 Add to
002866520105300PLATE/I/22X64N/A POA
003V21126080300BOLT,S/M8X30£1.85 Add to
004866320105200SHAFT/INPUT£91.18 Add to
005V60015062050BEARING,RB/6205SS£23.24 Add to
006V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
007866520105100PULLEY/V2B93£105.04 Add to
008866320105400KEY/07X07X22£2.72 Add to
009141521660200WASHER/26X35X2£1.93 Add to
010V70414002500RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)£2.10 Add to
011866320105500METAL/OUTPUT£103.99 Add to
012866320105900SHIM/1.0£2.76 Add to
013866320106100SHIM/0.5£2.76 Add to
014V36326000800NUT/WASHER/M8 (SSM60 -100000)£2.30 Add to
015866320105610SHAFT/48/LH/FRONT£134.37 Add to
016V60015062050BEARING,RB/6205SS£23.24 Add to
017V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
018866320105710PULLEY V2B90£105.04 Add to
019866320105400KEY/07X07X22£2.72 Add to
020144411600700WASHER/11X30X2£2.19 Add to
021V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
022156022000410COUPRING/21X36X65£66.54 Add to
023V70414002500RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)£2.10 Add to
024866520105210BELT/VB038£75.50 Add to
025866320151050TENSION ARM£64.39 Add to
026250240700110BUSH/15X17X11£10.96 Add to
027351720500700WASHER£2.18 Add to
028V70414001500RING,SNAP/15 C£1.76 Add to
029330452101500PULLEY/FT50X49£22.05 Add to
030V70414001500RING,SNAP/15 C£1.76 Add to
031373734100700ROD,CHAIN TENSION£7.04 Add to
032133740100600SPRING£13.04 Add to
033V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
