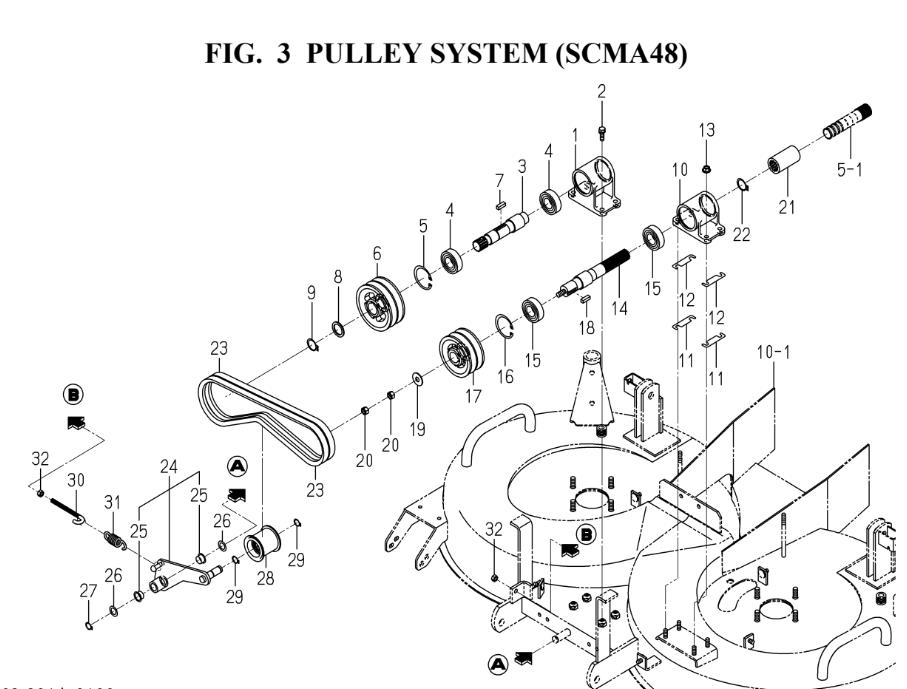

PULLEY SYSTEM (SCMA48)(8663-201A-0100)

PULLEY SYSTEM (SCMA48)(8663-201A-0100) assembly details for Iseki PC SCMA48-54 (B-TYPE)DECK (8663-097-120-10) SXG 19 - SXG 22 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	866320105100	METAL/INPUT	£98.48	Add to
002	V21126080250	BOLT,S/M8X25 (SRM48 200001-)	£1.94	Add to
003	866320105200	SHAFT/INPUT	£91.18	Add to
004	V60015062050	BEARING,RB/6205SS	£23.24	Add to
005	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
006	866320105300	PULLEY/V2B102	£108.82	Add to
007	866320105400	KEY/07X07X22	£2.72	Add to
008	141521660200	WASHER/26X35X2	£1.93	Add to
009	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
010	866320105500	METAL/OUTPUT	£103.99	Add to
011	866320105900	SHIM/1.0	£2.76	Add to
012	866320106100	SHIM/0.5	£2.76	Add to
013	V36326000800	NUT/WASHER/M8 (SSM60 -100000)	£2.30	Add to
014	866320105610	SHAFT/48/LH/FRONT	£134.37	Add to
015	V60015062050	BEARING,RB/6205SS	£23.24	Add to
016	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
017	866320105710	PULLEY V2B90	£105.04	Add to
018	866320105400	KEY/07X07X22	£2.72	Add to
019	144411600700	WASHER/11X30X2	£2.19	Add to
020	V30426001000	NUT/M10 (SXG19 3624-) (SXG22 1179-)	£2.10	Add to
021	156022000410	COUPRING/21X36X65	£66.54	Add to
022	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
023	866320105810	BELT/VB036	£74.80	Add to
024	866320151050	TENSION ARM	£64.39	Add to
025	250240700110	BUSH/15X17X11	£10.96	Add to
026	351720500700	WASHER	£2.18	Add to
027	V70414001500	RING,SNAP/15 C	£1.76	Add to
028	330452101500	PULLEY/FT50X49	£22.05	Add to
029	V70414001500	RING,SNAP/15 C	£1.76	Add to
030	373734100700	ROD,CHAIN TENSION	£7.04	Add to
031	133740100600	SPRING	£13.04	Add to
032	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
