PISTON (6004-340I-0100)

PISTON (6004-340I-0100) assembly details for Iseki ENGINE (E3112G03) SXG22 (1728-097-100-20) SXG 19 - SXG 22 model

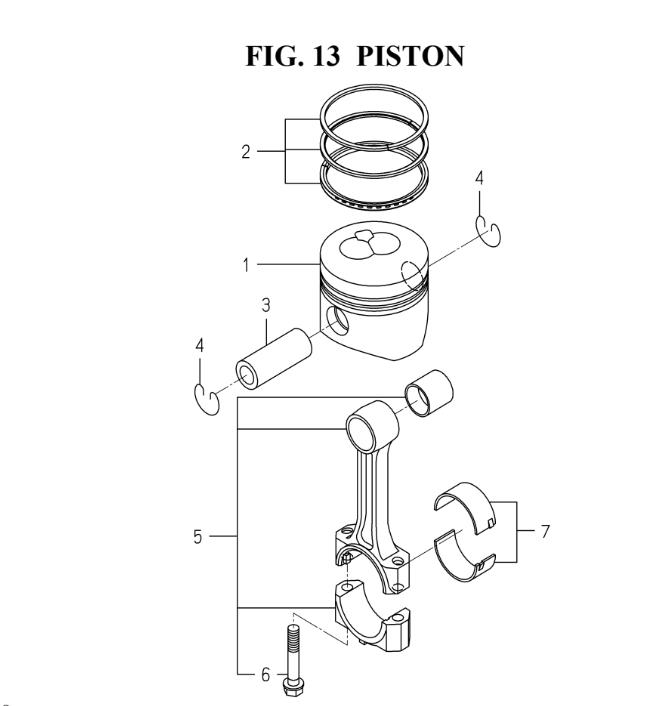

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	621211109410	PISTON	£129.85	Add to
002	621212101420	RING/PISTON SET	£116.67	Add to
003	621221100110	PIN, PISTON	£22.09	Add to
004	620958600100	RING,SNAP	N/A	POA
005	621223000410	CONNECTINGROD ASSY	£244.40	Add to
006	621223500500	BOLT/CONNECTINGROD	£4.70	Add to
007	621227100600	BEARING/CONNECTING R	N/A	POA
