INJECTION PUMP (6004-511-0100)

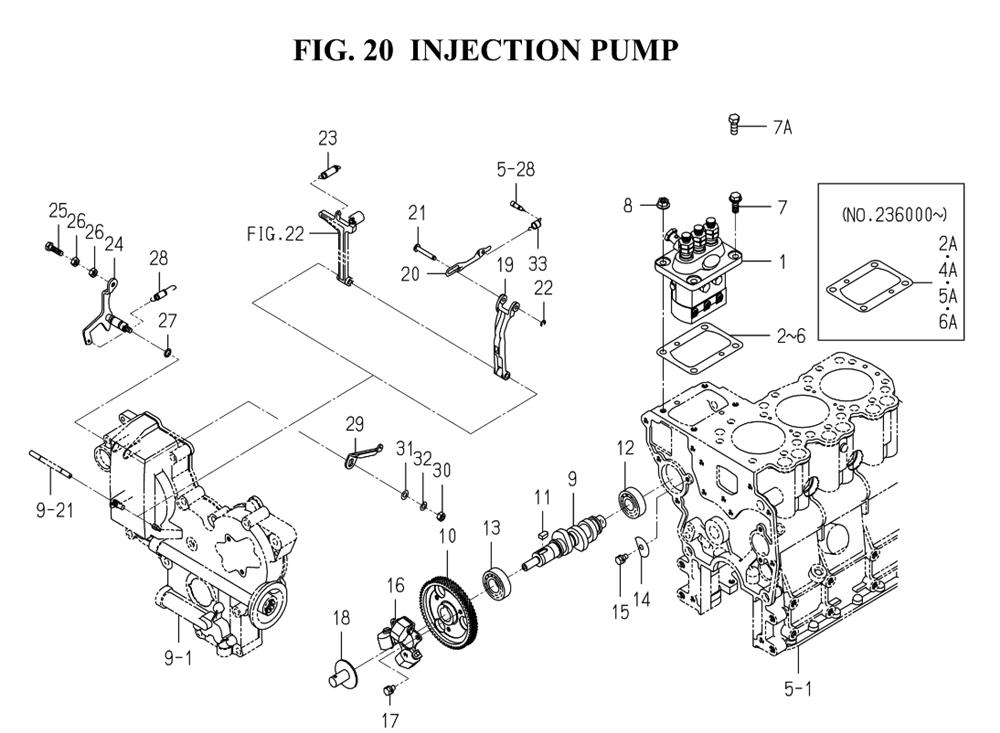

INJECTION PUMP (6004-511-0100) assembly details for Iseki ENGINE (E3100G01) SXG19 (1728-097-100-20) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621560010310INJECTION PUMP ASSY (FIG 028)£843.82 Add to
002621975200600SHIM/INJECTION P/0.3 (-235999)£15.11 Add to
002A621975204500SHIM/INJECTIONPUMP (236000-)£3.17 Add to
003621975200700SHIM/INJECTION P/0.1 (-235999)£15.11 Add to
004621975200800SHIM/INJECTION P/0.2 (-235999)£15.11 Add to
004A621975204400SHIM/INJECTIONPUMP (236000-)£2.99 Add to
005621975200900SHIM/INJECTION P/0.4 (-235999)£10.23 Add to
005A621975204600SHIM/INJECTIONPUMP (236000-)£3.17 Add to
006621975201000SHIM/INJECTION P/0.5 (-229516)£10.23 Add to
006A621975204700SHIM/INJECTIONPUMP (236000-)£3.32 Add to
007V23136080200FLANGEBOLT/M8X20£1.66 Add to
007AV20136080200BOLT/M8X20/7T( 240939-)N/A POA
008381740100100NUT/M08 (206026-)£1.53 Add to
009621562101620CAMSHAFT/INJECTION P£214.19 Add to
010621252400220GEAR/INJECTIONPUMP£93.87 Add to
011620973000500KEY/07X05X09 (20508)£4.04 Add to
012V60011062030BEARING,RB/6203£13.01 Add to
013V60011060040BEARING,RB/6004 (-211434)£12.59 Add to
014621253500200PLATE,THRUST INJPUMPN/A POA
015690191061200BOLT,SEMS/M6X12£3.96 Add to
016621552000100FLYWEIGHTN/A POA
017620903004300BOLT/M6X10N/A POA
018621552600400THRUSTPIECE£41.10 Add to
019621554100110ARM/FLOATING COMP£32.58 Add to
020621554300210RINK/CONTROL£13.02 Add to
021621554200600PIN,CONTROL£9.12 Add to
022V71014000400RING, SNAP/4 E£1.43 Add to
023621553100100SPRING GOVERNORN/A POA
024621554100310LEVER,CONTROL£19.78 Add to
025620904400100BOLT/M6X18£3.03 Add to
026690911140600LOCKNUT M6£3.13 Add to
027V72010190080O-RING/1A,P8£3.06 Add to
028620958000210SPRING,RETURN£3.37 Add to
029621554900710ARM/CONTROL (-180997)N/A POA
030690911040600NUT (-178958)£2.60 Add to
031V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
032V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
033621554901200SPRING,STARTING£12.02 Add to
