GEAR CASE(6004-240P-0100,6004-240P-0200)

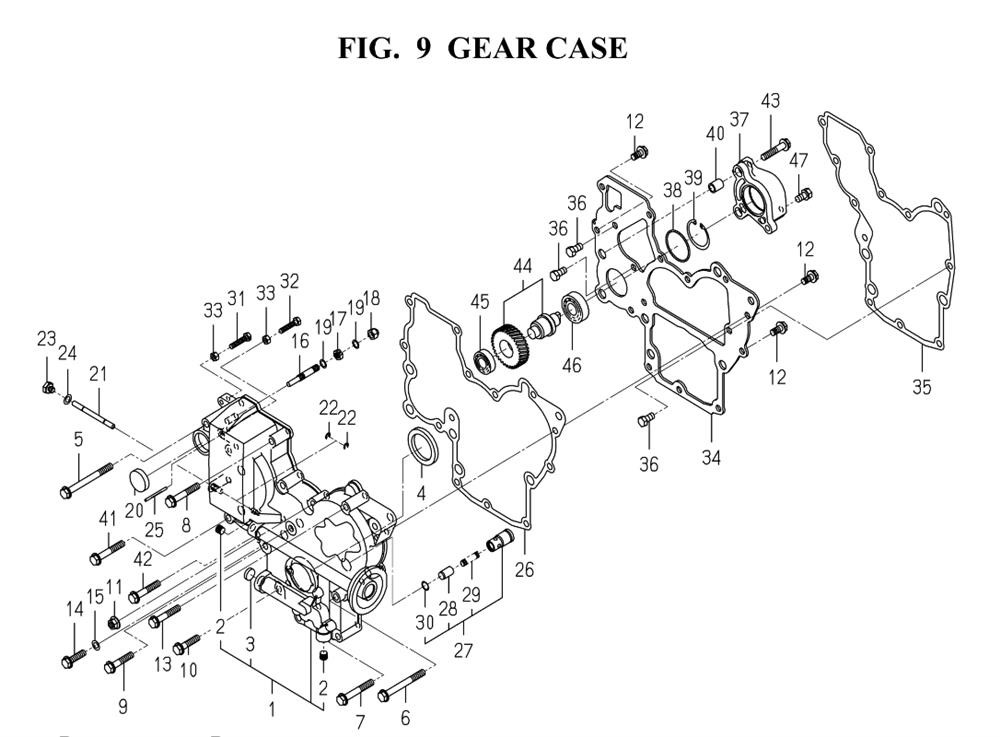

GEAR CASE(6004-240P-0100,6004-240P-0200) assembly details for Iseki ENGINE (E3100G01) SXG19 (1728-097-100-20) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621131003800GEARCASE ASSY£347.87 Add to
002650960501910PLUG (-183859)£8.54 Add to
003620961000210CUP/SEALING/16N/A POA
004620962500200SEAL,OIL£10.05 Add to
005V23136080850FLANGEBOLT/M8X85£2.38 Add to
006V23136080750FLANGEBOLT/M8X75£2.38 Add to
007V23136080550FLANGEBOLT/M8X55 (206026-)£2.06 Add to
008V23136080500FLANGEBOLT/M8X50£2.28 Add to
009V23136080400FLANGEBOLT/M8X40£2.28 Add to
010V23136080350FLANGEBOLT/M8X35£2.26 Add to
011381740100100NUT/M08 (206026-)£1.53 Add to
012V23136080160FLANGEBOLT/M8X16 (SXG19 9114-) (SXG22 3050-)£1.67 Add to
013V23136080450FLANGEBOLT/M8X45£2.45 Add to
014V23136080300FLANGEBOLT/M8X30£1.52 Add to
015620950000300WASHER/08X14X01£2.09 Add to
016621554600100STOPPER/FULL-LOADN/A POA
017620940900100NUT/M8£2.38 Add to
018V34112000800NUT, CAP/M8 (104713-)(-630)£2.57 Add to
019620992000200PACKING£1.87 Add to
020362554000400CAP, BLANK/30 (-180997)£5.60 Add to
021621554200110PIN/ARM£6.06 Add to
022V71014000400RING, SNAP/4 E£1.43 Add to
023620960000400PLUG/SCREWN/A POA
024620950000300WASHER/08X14X01£2.09 Add to
025620974000100PIN, GROOVE (-181931)N/A POA
026621131200130GASKET/GEARCASE£46.81 Add to
027621316000220VALVE/RELIEF ASSY£50.46 Add to
028621316100120PISTON/VALVE/RELIEFN/A POA
029621316400100SPRING/RELIEF VALVEN/A POA
030V70514001200RING, SNAP/12 C£1.76 Add to
031620905000100BOLT/M6£2.51 Add to
032620905000200BOLT/M6£2.58 Add to
033690911040600NUT (-178958)£2.60 Add to
034621131104320PLATE/FRONTN/A POA
035621131200420GASKET/PLATE£43.37 Add to
036690205081600BOLTN/A POA
037621131900200SPACER,HYD,REAR£39.65 Add to
038V72310200420O-RING/1A,S42£2.07 Add to
039V70514004000RING,SNAP/40 C£2.98 Add to
040620974900120PIN/TUBE (-277472)N/A POA
041V23136080500FLANGEBOLT/M8X50£2.28 Add to
042V23136080450FLANGEBOLT/M8X45£2.45 Add to
043V23136080400FLANGEBOLT/M8X40£2.28 Add to
044621253000410SHAFT/HYDRAULIC ASSYN/A POA
045V60011060020BEARING,RB/6002£12.82 Add to
046V60011062030BEARING,RB/6203£13.01 Add to
047V21126080160BOLT,S/M8X16£2.09 Add to
