LINK SYSTEM(H TYPE)(8664-455-0100)

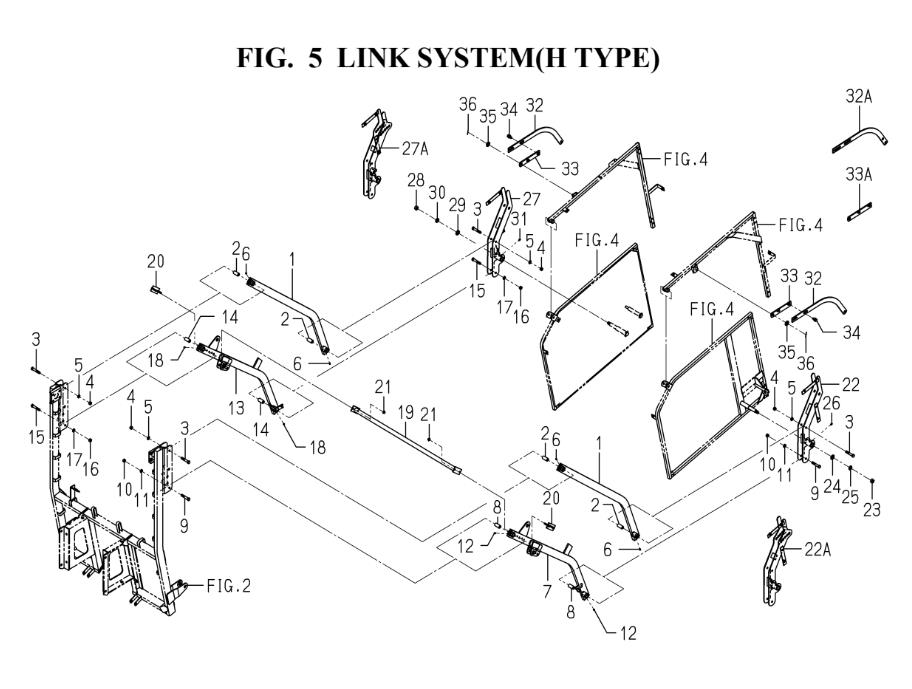

LINK SYSTEM(H TYPE)(8664-455-0100) assembly details for Iseki COLLECTOR SBC550XM(8664-097-110-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001866445521010LINK/A COMP£201.78 Add to
002866445500100COLLAR/12X20X41£7.80 Add to
003V20136120650BOLT£3.20 Add to
004V30426001200NUT/M12 (SSM60 -100000)£3.02 Add to
005V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
006V76015000000NIPPLE, GREASE£3.96 Add to
007866445522000LINK/B/LH COMPN/A POA
008866445500100COLLAR/12X20X41£7.80 Add to
009V20136120650BOLT£3.20 Add to
010V30426001200NUT/M12 (SSM60 -100000)£3.02 Add to
011V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
012V76015000000NIPPLE, GREASE£3.96 Add to
013866445500100COLLAR/12X20X41£7.80 Add to
014866445500100COLLAR/12X20X41£7.80 Add to
015V20136120650BOLT£3.20 Add to
016V30426001200NUT/M12 (SSM60 -100000)£3.02 Add to
017V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
018V76015000000NIPPLE, GREASE£3.96 Add to
019866445523000BAR COMP£53.64 Add to
020866445524000PLATE/I/38X80 COMP£9.68 Add to
021V36226000800NUT/WASHER/M8£1.77 Add to
022866445525010BRACKET/LINK/LH COMP (-103760)N/A POA
022A866445525020BRACKET/LINK/LH COMP (103761-)N/A POA
023V30426001600NUT/M16£2.86 Add to
024V41126001600WASHER,PL/M16£1.67 Add to
025V40116001600WASHER,SP/M16£1.64 Add to
026V76015000000NIPPLE, GREASE£3.96 Add to
027866445526010BRACKET/LINK/RH COMP (-103760)N/A POA
027A866445526020BRACKET/LINK/RH COMP (103761-)N/A POA
028V30426001600NUT/M16£2.86 Add to
029V41126001600WASHER,PL/M16£1.67 Add to
030V40116001600WASHER,SP/M16£1.64 Add to
031V76015000000NIPPLE, GREASE£3.96 Add to
032866445500210LINK/C (-103760)£50.36 Add to
032A866445500220LINK/C (103761-)£31.70 Add to
033866445527000PLATE/IR/32X192 COMP (-103760)N/A POA
033A866445527010PLATE/IR/32X227 COMP£26.10 Add to
034V21136100250BOLT,SP/M10X25£2.18 Add to
035V41126001600WASHER,PL/M16£1.67 Add to
036V50016300300PIN,SPLIT/3X30 (-511)£1.64 Add to
