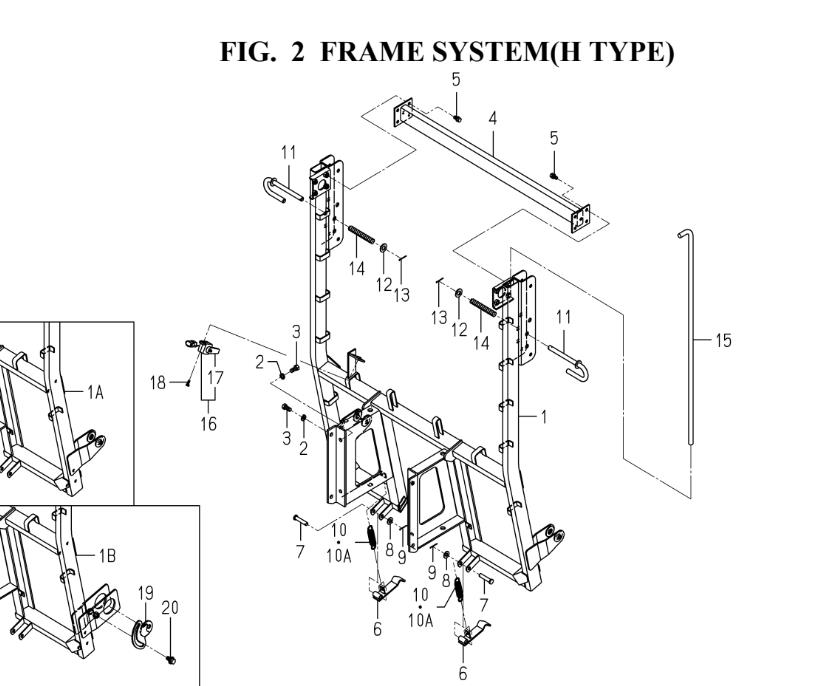

FRAME SYSTEM(H TYPE)(8664-155-0100)

FRAME SYSTEM(H TYPE)(8664-155-0100) assembly details for Iseki COLLECTOR SBC550XM(8664-097-110-10) SXG 19 - SXG 22 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	866415521090	FRAME/COLLECTOR COMP(-100846)	£1,076.27	Add to
001A	866415531000	FRAME/COLLECTOR COMP	£1,076.27	Add to
001B	866415531010	FRAME/COLLECTOR COMP	N/A	POA
002	V20136120250	BOLT/M12X25/7T (-100414)	£2.30	Add to
003	V40116001200	WASHER,SP/M12 (SSM60 -100000)	£1.64	Add to
004	866415525000	TUBE/927 COMP	£100.09	Add to
005	V21126100200	BOLT,SEMS	£2.30	Add to
006	866415523000	HOOK COMP	£44.47	Add to
007	866415500100	PIN/12X56	£5.22	Add to
008	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
009	V50016300250	PIN,SPLIT/3X25 (SSM60 100001-)	£1.64	Add to
010	250021001600	SPRING/HE108 (SXG22 -35)	£8.87	Add to
010A	374623500200	SPRING,ROD F.	£7.53	Add to
011	866415524000	PIN COMP	£26.39	Add to
012	V41126001600	WASHER,PL/M16	£1.67	Add to
013	V50016300300	PIN,SPLIT/3X30 (-511)	£1.64	Add to
014	866415500200	SPRING/HC120	£4.43	Add to
015	866410500100	BAR	N/A	POA
016	171668033000	SWITCH/LEVER ASSY (-100531)	£93.10	Add to
017	171668022200	ARM	£6.13	Add to
018	V21036060200	BOLT,SP/M6X20 (-622) (623-)	£1.76	Add to
019	866415526000	CAM COMP	N/A	POA
020	V21136120250	BOLT/SP	N/A	POA
