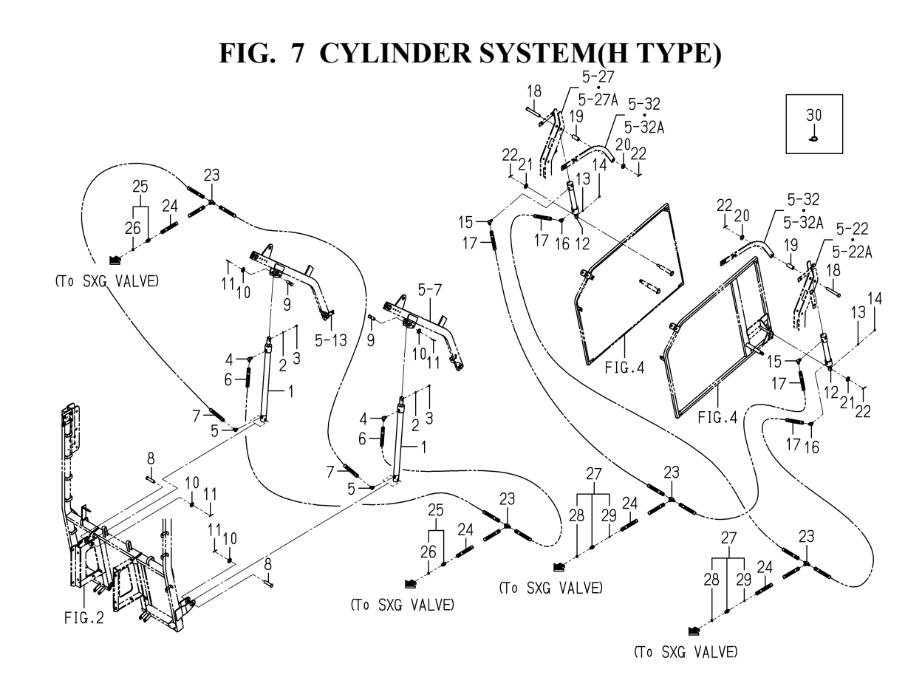

CYLINDER SYSTEM(H TYPE)(8664-555-0100)

CYLINDER SYSTEM(H TYPE)(8664-555-0100) assembly details for Iseki COLLECTOR SBC550XM(8664-097-110-10) SXG 19 - SXG 22 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	866455591000	CYLINDER/LIFT ASSY	£855.54	Add to
002	V40116000600	WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)	£1.64	Add to
003	V76015000000	NIPPLE, GREASE	£3.96	Add to
004	376818502210	ADAPTER/90DEG/PUMP(-100638)	£15.93	Add to
005	363135020110	ADAPTER/45B	£9.84	Add to
006	866455532000	HOSE/HYDRO/1100 ASSY	N/A	POA
007	866455535000	HOSE/HYDRO/850 ASSY	N/A	POA
008	866455500100	PIN16X66	£9.05	Add to
009	866455500900	PIN/16X46	£6.97	Add to
010	V41126001600	WASHER,PL/M16	£1.67	Add to
011	V50016300300	PIN,SPLIT/3X30 (-511)	£1.64	Add to
012	K18507800010	CYLINDER ASSY	£825.58	Add to
013	V40116000600	WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)	£1.64	Add to
014	V76015000000	NIPPLE, GREASE	£3.96	Add to
015	376818502210	ADAPTER/90DEG/PUMP(-100638)	£15.93	Add to
016	363135020110	ADAPTER/45B	£9.84	Add to
017	866455534000	HOSE/HYDRO/2700 ASSY	£158.75	Add to
018	866455500500	PIN/16X120	£9.94	Add to
019	866455500200	COLLAR/17X22X53	£4.90	Add to
020	V41126001600	WASHER,PL/M16	£1.67	Add to
021	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
022	V50016300300	PIN,SPLIT/3X30 (-511)	£1.64	Add to
023	866455500300	ADAPTER/T	£20.58	Add to
024	866450523000	HOSE/HYDRO/650 ASSY	£64.89	Add to
025	866455535000	HOSE/HYDRO/850 ASSY	N/A	POA
026	V72011240110	O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)	£3.64	Add to
027	866455527000	ADAPTER/ORIFICE ASSY	£23.90	Add to
028	V72011240110	O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)	£3.64	Add to
029	K21100401400	SCREW,ORIFICE	N/A	POA
030	134240200600	BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)	£7.43	Add to
