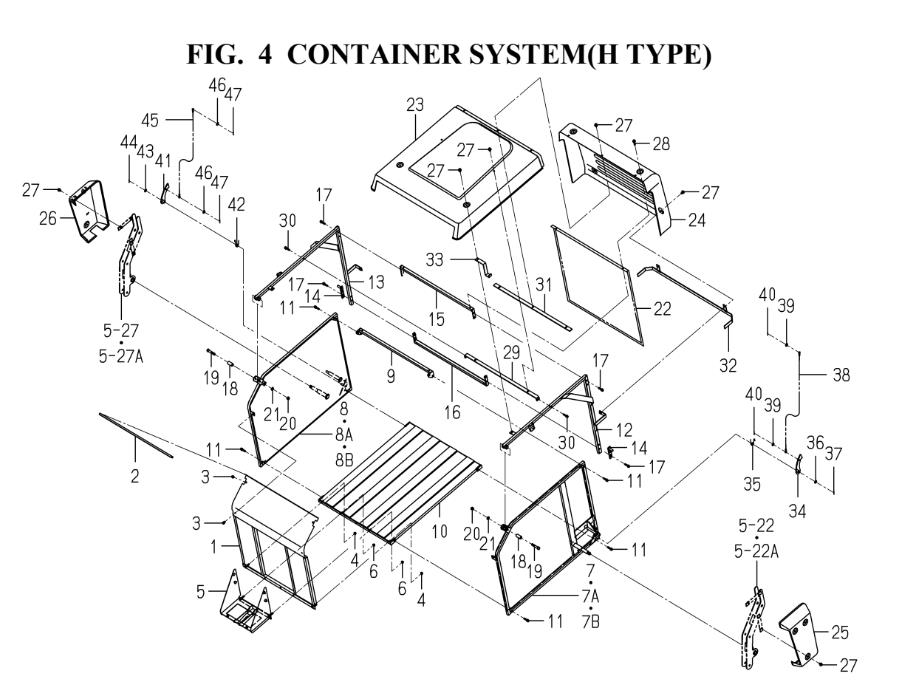

CONTAINER SYSTEM(H TYPE)(8664-355A-0100)

CONTAINER SYSTEM(H TYPE)(8664-355A-0100) assembly details for Iseki COLLECTOR SBC550XM(8664-097-110-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001866435541000CONTAINER/FRONT COMP£174.11 Add to
002866435503100INSULATOR/756£14.69 Add to
003V21136980160BOLT,SEMS (SP)N/A POA
004V36226000800NUT/WASHER/M8£1.77 Add to
005866435531040PLATE/LOWER/FRONT£93.32 Add to
006V36226000800NUT/WASHER/M8£1.77 Add to
007866435522020FRAME/SIDE/LH COMP (-101833)N/A POA
007A866435522030FRAME/SIDE/LH COMP (-103760)N/A POA
007B866435522040FRAME/SIDE/LH COMP£506.96 Add to
008866435523020FRAME/SIDE/RH COMP (-101833)N/A POA
008A866435523030FRAME/SIDE/RH COMP (-103760)N/A POA
008B866435523040FRAME/SIDE/RH COMP£506.96 Add to
009866430523000FRAME/REAR COMP£87.21 Add to
010866435524010FRAME/LOWER COMP£241.72 Add to
011V21166080450BOLT/SP£2.34 Add to
012866435525010FRAME/COVER/LH COMP£232.46 Add to
013866435526010FRAME/COVER/RH COMP£232.46 Add to
014866435533000PIN COMP£17.13 Add to
015866435527000FRAME/REAR/UPPER COMP£82.67 Add to
016866435528000FRAME/REAR/LOWER COMP£97.20 Add to
017V21166080450BOLT/SP£2.34 Add to
018866445500100COLLAR/12X20X41£7.80 Add to
019V20136120650BOLT£3.20 Add to
020V30426001200NUT/M12 (SSM60 -100000)£3.02 Add to
021V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
022866430500110NET/REAR£139.37 Add to
023866435500200COVER/CONTAINER/FRONT£268.17 Add to
024866430500300COVER/CONTAINER/REAR£301.49 Add to
026866435500400COVER/CONTAINER/SIDE£179.68 Add to
027866430500400BOLT/SP/M08X20£1.85 Add to
028866430500500BOLT/SP/M08X40£1.98 Add to
029866435532000PLATE/U/749X25 COMP£40.44 Add to
030V21166080450BOLT/SP£2.34 Add to
031866430533000PLATE/COVER/REAR COMP£46.22 Add to
032866430534000GUIDE/REAR COMP£64.62 Add to
033866435500900GUIDE/SIDE£17.72 Add to
034866435534000PLATE/LOCK/LH COMP£28.04 Add to
035866435500700SPRING/HT020 (195-) (100545-)£6.21 Add to
036V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
037V50016300250PIN,SPLIT/3X25 (SSM60 100001-)£1.64 Add to
038866435536000CABLE/LOCK COMP£8.22 Add to
039V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
040V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
041866435535000PLATE/LOCK/RH COMP£28.04 Add to
042866435500800SPRING/HT020£6.21 Add to
043V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
044V50016300250PIN,SPLIT/3X25 (SSM60 100001-)£1.64 Add to
045866435536000CABLE/LOCK COMP£8.22 Add to
046V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
047V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
