GEAR(DIFFERENTIAL)SYSTEM(G TYPE)(1728-204A-0100)

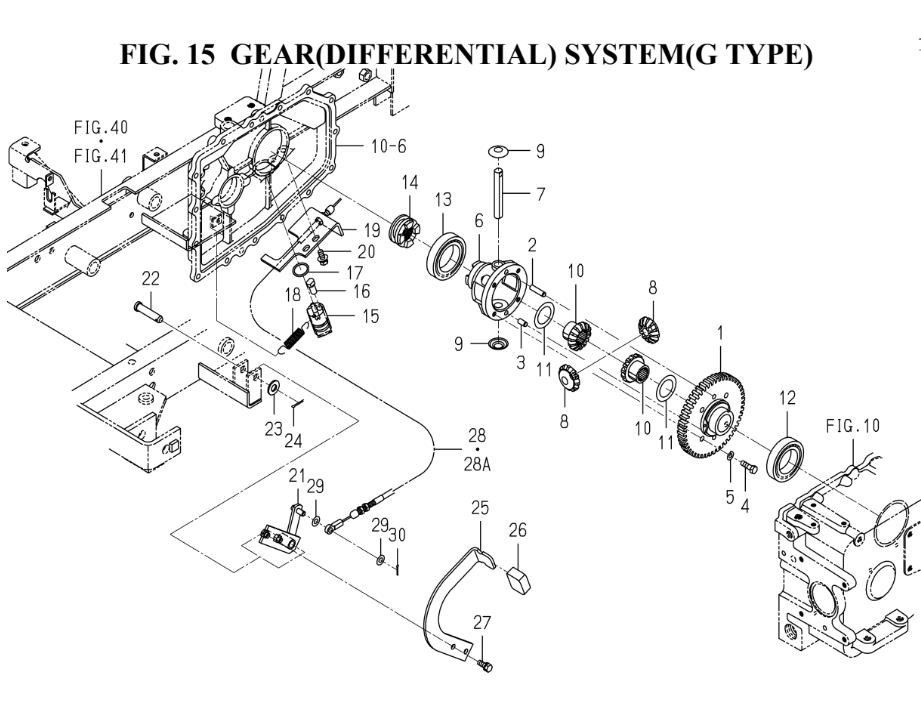

GEAR(DIFFERENTIAL)SYSTEM(G TYPE)(1728-204A-0100) assembly details for Iseki CHASSIS SXG19-22 (1728-097-100-20) SXG 19 - SXG 22 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	172820400100	GEAR/SPUR/48	N/A	POA
002	167230100200	PIN/PARALLEL/08X32	£3.07	Add to
003	V52310080160	PIN,ST,B/8X16	N/A	POA
004	154430400610	BOLT/M8X25	£2.59	Add to
005	V40116000800	WASHER,SP/M8 (100545-)	£1.60	Add to
006	142730100220	CASE,DIFF	£321.24	Add to
007	144441100600	SHAFT,DIFF.PINION	£36.62	Add to
008	167230100300	PINION/BEVEL/12	£50.75	Add to
009	142730100500	COLLAR,PINION THRUST	£8.20	Add to
010	167230100400	GEAR/BEVEL/14	£71.03	Add to
011	142730100700	COLLAR,THRUST	£5.60	Add to
012	V60011060090	BEARING,RB/6009	N/A	POA
013	V60011060100	BEARING,RB/6010	N/A	POA
014	172820400200	CLUTCH/DIFFLOCK	£42.01	Add to
015	172820420000	ARM/DIFF COMP	£44.30	Add to
016	168920500510	PIN/10X21	£14.49	Add to
017	V72010350240	O-RING/1A,P24	N/A	POA
018	110441000700	SPRING/HE074	£9.15	Add to
019	172820400300	STAY/DIFFCABLE	£12.21	Add to
020	V21136080200	BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)	£2.10	Add to
021	170520422000	PEDAL/DIFF COMP	N/A	POA
022	796361100300	PIN/12X48 (SXG19 1427-) (SXG22 580-)	£17.25	Add to
023	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
024	V50016300200	PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)	£1.52	Add to
025	170520400300	PEDAL/DIFF	N/A	POA
026	159310101200	STOPPER	£9.90	Add to
028	172820421000	CABLE/DIFF ASSY (SXG19 -7423) (SXG22 -2376)	£27.53	Add to
028A	172820421010	CABLE/DIFF ASSY (SXG19 7424-) (SXG22 2377-)	£28.91	Add to
030	V50016250150	PIN,SPLIT/2.5X15 (-194) (100545-)	£1.60	Add to
