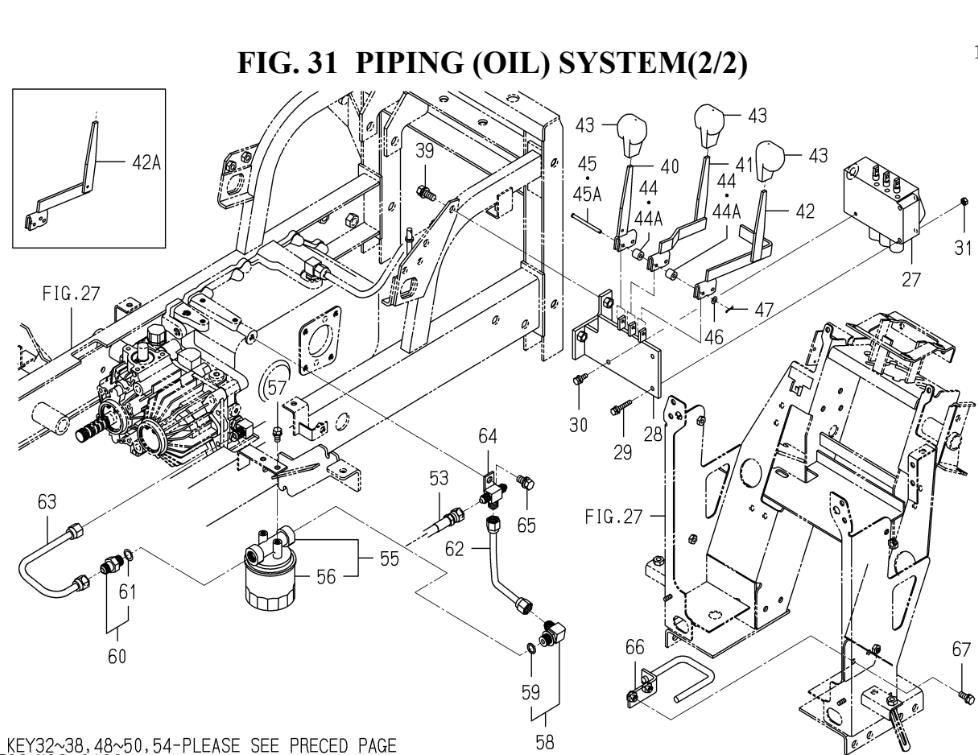

PIPING (OIL) SYSTEM (2/2)(1728-508-0100) assembly details for Iseki CHASSIS SXG19-22(1728-097-100-10) SXG 19 - SXG 22 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
030 | V21036060200 | BOLT,SP/M6X20 (-622) (623-) | £1.76 | Add to |
031 | V30126000600 | NUT/M6 | £1.64 | Add to |
032 | 173953029000 | ADAPTER/45DEG1/ASSY | £14.40 | Add to |
033 | V72011240110 | O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600) | £3.64 | Add to |
034 | 165650931010 | ADAPTER/L/PF1/4 ASSY (SXG19 -4766) (SXG22 -1600) | £26.02 | Add to |
035 | V72011240110 | O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600) | £3.64 | Add to |
036 | 172550926000 | ADAPTER/G1/4 ASSY | £13.79 | Add to |
037 | V72011240110 | O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600) | £3.64 | Add to |
038 | P11870203300 | PLUG | N/A | POA |
039 | V21126100250 | BOLT,S/M10X25 | £2.12 | Add to |
040 | 163650522000 | LEVER/125 COMP | £33.23 | Add to |
041 | 172850824000 | LEVER/VALVE/MID COMP | £36.60 | Add to |
042 | 172850826000 | LEVER/VALVE/SID COMP (SXG19 -3445) (SXG22 -1136) | £39.77 | Add to |
043 | 161426200300 | GRIP/SUB | £20.97 | Add to |
044 | 173953000210 | COLLAR/06X14X13 (SXG19 -388) (SXG22 -85) | £4.23 | Add to |
044A | 172850800200 | TUBE/15 (SXG19 389-)N (SXG22 86-) | £2.10 | Add to |
045 | 172850800100 | PIN/05X63 (SXG19 -3418) (SXG22 -1136) | N/A | POA |
045A | 172850800110 | PIN/05X63 (SXG19 3419-) (SXG22 1137-) | £10.36 | Add to |
046 | V41126000500 | WASHER,PL/M5 | N/A | POA |
047 | V56016000500 | PIN/SNAP | N/A | POA |
048 | 173953000400 | PIN/05X17 | £4.56 | Add to |
049 | V41126000500 | WASHER,PL/M5 | N/A | POA |
050 | V56016000500 | PIN/SNAP | N/A | POA |
051 | 172850832000 | HOSE/HYDRO/1450 ASSY | £110.61 | Add to |
052 | 172850831000 | HOSE/HYDRO/950 ASSY | £73.96 | Add to |
053 | 172850835000 | HOSE/HYDRO/750 ASSY | £88.02 | Add to |
054 | 172850843010 | PIPE/RETURN COMP | £24.37 | Add to |
055 | P10352130000 | FILTER/RETURN ASSY | N/A | POA |
056 | P10352130200 | CARTRIDGE | £48.69 | Add to |
057 | V21126080160 | BOLT,S/M8X16 | £2.09 | Add to |
058 | 380535428000 | ADAPTOR/G3/8XM16 ASSY | £27.87 | Add to |
059 | V72011240140 | O-RING/1B,P14 (-592) (593-) | N/A | POA |
060 | 170150929000 | ADAPTER/G3/8 ASSY | £14.69 | Add to |
061 | V72011240140 | O-RING/1B,P14 (-592) (593-) | N/A | POA |
062 | 172850841000 | PIPE/FILTER COMP | £25.92 | Add to |
063 | 172850842000 | PIPE/CHARGE COMP | N/A | POA |
064 | 172850844000 | ADAPTER/M16XG1/ COMP | £65.38 | Add to |
065 | V21126100200 | BOLT,SEMS | £2.30 | Add to |
066 | 172850845000 | GUIDE/HOSE | N/A | POA |
