HARNESS SYSTEM (G TYPE)(1728-690A-0100)

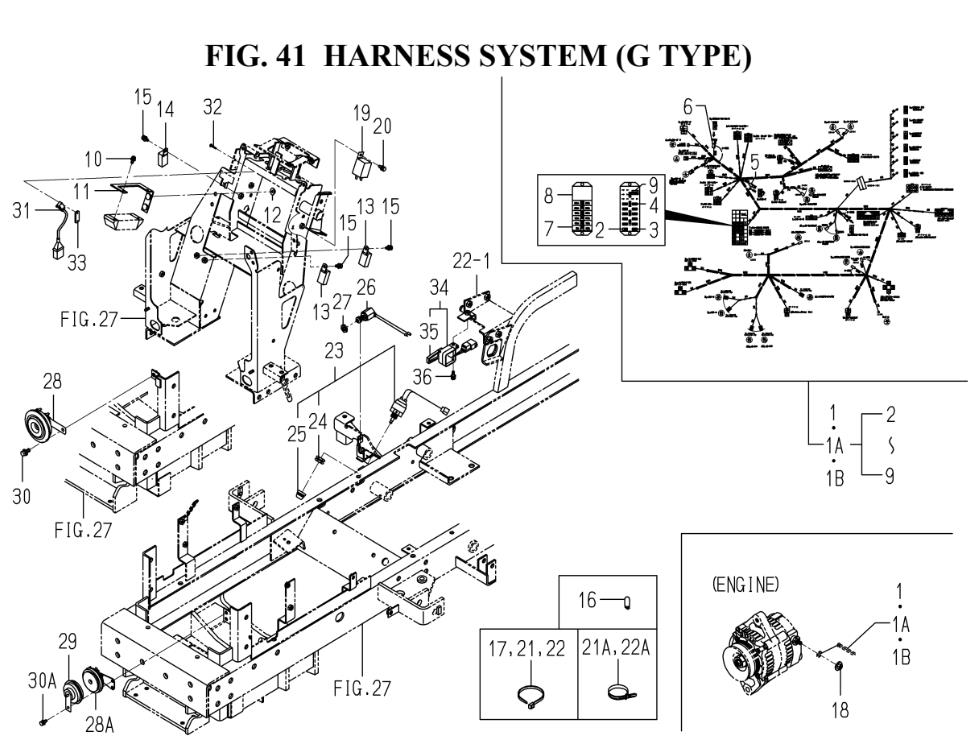

HARNESS SYSTEM (G TYPE)(1728-690A-0100) assembly details for Iseki CHASSIS SXG19-22(1728-097-100-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001172869050000HARNESS/MAIN/HM ASSY (SXG19 -56)(SXG22-35)N/A POA
001A172869050010HARNESS/MAIN/HM ASSY (SXG19 -1551) (SXG22 -589)£574.11 Add to
001B172869050020HARNESS/MAIN/G ASSY (SXG19 1552-) (SXG22 590-)£582.37 Add to
002382727000300FUSE/BLADE/32V03A£2.70 Add to
003382126220200FUSE/BLADE/32V10A£2.70 Add to
004382126220400FUSE/BLADE/32V20A£2.70 Add to
005365026220200DIODE/3.0A (-622) (623-)£24.13 Add to
006161469020200FUSE/SLOWBLOW/50A (-622) (623-)£9.39 Add to
007172869050200LABEL/FUSEN/A POA
008382727000100COVER/FUSE£11.78 Add to
009382727000200TOOL/FUSEN/A POA
010V12036600160SCREW,SP/M6X16£1.71 Add to
011172869051010STAY/FUSEBOX COMP£15.56 Add to
012V36026000600NUT/WASHER/M6£1.47 Add to
013165065827000RELAY/4P ASSY (-622) (623-)£23.75 Add to
014169065221000RELAY ASSY£20.53 Add to
016365027021400BULB/12V3.4W£6.31 Add to
017159362300300BAND (-171)N/A POA
018V36026000600NUT/WASHER/M6£1.47 Add to
019160062300200FLASHER ASSY£125.90 Add to
021373717201000BAND/202 (SXG19 -514) (SXG22 -101) (-100454) (100455-)N/A POA
021A134240200600BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)£7.43 Add to
022374618501400BAND,HOSE (SXG19 -514) (SXG22 -101) (-100287)N/A POA
022A137640200300BAND,WIRE/140 (SXG19 515-) (SXG22 102-) (-622) (623-)£5.34 Add to
023156066425000SWITCH/PUSH SET (623-) (-622)£37.26 Add to
024156066425200NUT (623-) (-622)£4.25 Add to
025156066425300BOOT (623-) (-622)£15.82 Add to
026151862132000SWITCH,STOP£82.70 Add to
027143262100610NUT,LOCK£6.12 Add to
028167466420000HORN ASSY (SXG19 -1190) (SXG22 -551)£32.49 Add to
028A174068053000HORN ASSY (SXG19 1191-) (SXG22 552-) (-622) (623-) (-100129)N/A POA
029169065032000HORN ASSY (SXG19 1552-) (SXG22 590-)£49.80 Add to
030V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
030AV21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
031159362352000SWITCH,MERIT (623-) (-622)£53.00 Add to
032161412900300SCREW/M03X20 (-622) (623-)£1.53 Add to
033366427600100PLATE/IRX13X35 (623-) (-469)£4.75 Add to
034171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
035171668022200ARM£6.13 Add to
036V21036060200BOLT,SP/M6X20 (-622) (623-)£1.76 Add to
