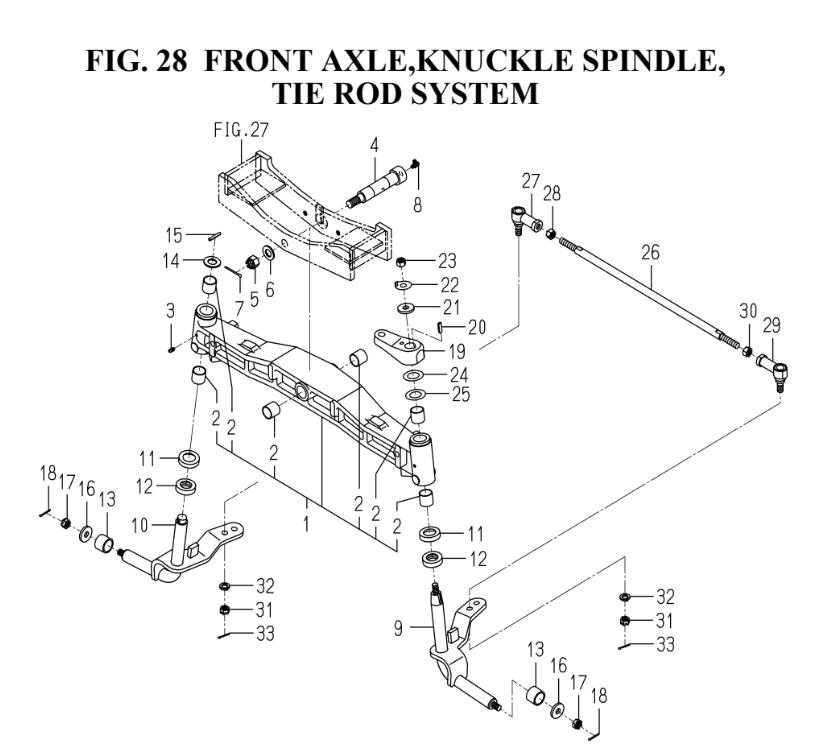

FRONT AXLE,KNUCKLE SPINDLE,TIE ROD SYSTEM(1728-433,434,436-0100)

FRONT AXLE,KNUCKLE SPINDLE,TIE ROD SYSTEM(1728-433,434,436-0100) assembly details for Iseki CHASSIS SXG19-22(1728-097-100-10) SXG 19 - SXG 22 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001172843320000AXLE/FRONT ASSYN/A POA
002159340205110BUSH/25X28X25£13.30 Add to
003V76015000000NIPPLE, GREASE£3.96 Add to
004172843300100PIN/PIVOT£96.44 Add to
005V32726121600NUT, CASTLE/M16 P=1.5£2.94 Add to
006V41126001600WASHER,PL/M16£1.67 Add to
007V50016400300PIN,SPLIT/4X30 (512-)£1.51 Add to
008V76315000000NIPPLE,GREASE/PT1/8 (-100295)N/A POA
009172843420000SPINDLE/KNUCKLE/LH£111.79 Add to
010172843421000SPINDLE/KNUCKLE/RH£107.11 Add to
011159340300410COVER/44X10£6.59 Add to
012159340300900THRUST£35.77 Add to
013170544100100COLLAR/26X32X24£4.25 Add to
014V41126001800WASHER,PL/M18£2.38 Add to
015V58014050320PIN,SPRING/5X32 W£2.09 Add to
016362170200300WASHER,PULLEY£2.65 Add to
017V32826211200NUT,CASTLE/M12 P1.25£3.96 Add to
018V50016300250PIN,SPLIT/3X25 (SSM60 100001-)£1.64 Add to
019172843400100ARM/KNUCKLE£75.40 Add to
020132670800500KEY,ROTARY TOP SHAFT£4.50 Add to
021142140300700WASHER,LOCK/M12£2.45 Add to
022142140300800WASHER/13X35X5£3.03 Add to
023V30426001200NUT/M12 (SSM60 -100000)£3.02 Add to
024142195100600SHIM,A/0.5£5.08 Add to
025142195100700SHIM,A/1.0£6.31 Add to
026172843600100ROD/TIE/M12X535£52.57 Add to
027159340300500JOINT,BALL£35.27 Add to
028V33426001200NUT/M12£2.59 Add to
029170543630000JOINT/BALL ASSY£26.21 Add to
030170313500200NUT/SM/LH/M12X1.25£5.55 Add to
031V32826211200NUT,CASTLE/M12 P1.25£3.96 Add to
032V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
033V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
