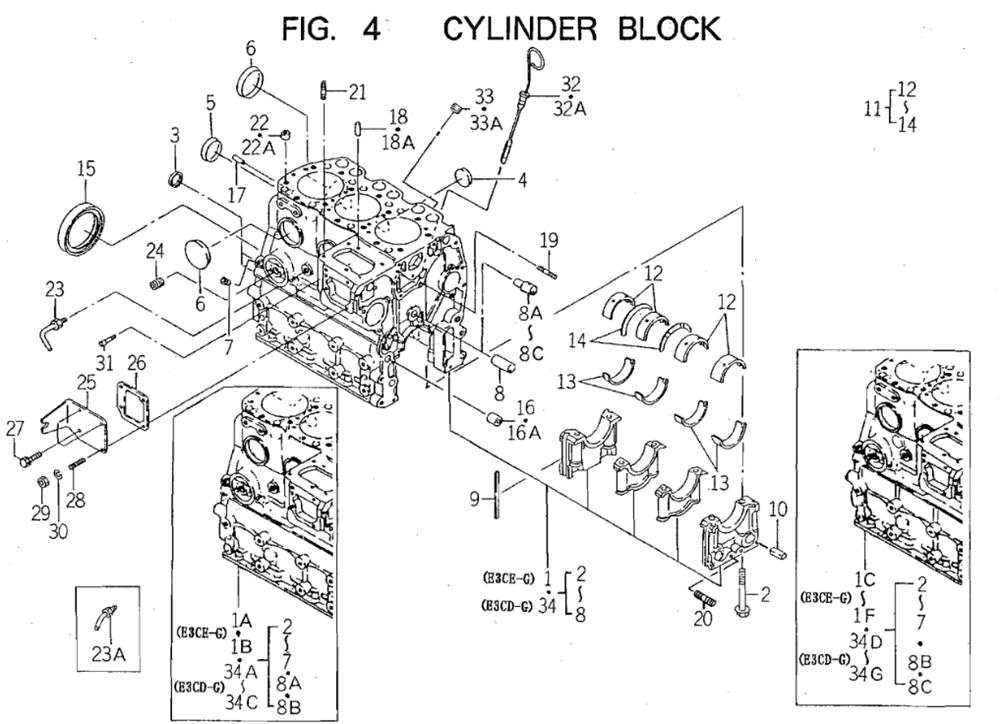

CYLINDER BLOCK(6005-2011)

CYLINDER BLOCK(6005-2011) assembly details for Iseki ENGINE(E3CE-G) SF300 ENGINE(E3CD-G) SF330(6005-097-120-10) SF300-330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621121003150CYLINDERBLOCK ASSY (E3CEG)£2,545.13 Add to
001A621121003160CYLINDERBLOCK ASSYN/A POA
001B621121003170CYLINDERBLOCK ASSYN/A POA
001C621121003190CYLINDERBLOCK ASSYN/A POA
001D621121005700CYLINDERBLOCK ASSYN/A POA
001E621121005710CYLINDERBLOCK ASSYN/A POA
001F621121005720CYLINDERBLOCK ASSYN/A POA
002620900000600BOLT£3.75 Add to
003691112908100CAP, SEALINGN/A POA
004620961000100CAP, SEALING£1.88 Add to
005691121919500CAP, SEALINGN/A POA
006620961000300CUP/SEALING/50£7.14 Add to
007650960501910PLUG (-183859)£8.54 Add to
008621253100500PIN, IDLE GEARN/A POA
008A621253100800PIN/ IDLEGEARN/A POA
008B621253100810PIN/IDLE GEARN/A POA
008C621253100820PIN/IDLE GEAR (-168830)N/A POA
009621125800100SEAL, BEARING CAP£10.56 Add to
010621125800200SEAL, BEARING CAP/7£13.05 Add to
011621151000800BEARING/CRANK SET£63.46 Add to
012621151100700BEARING/CRANK/UPPER£6.52 Add to
013621151100800BEARING/CRANK/LOWER£5.65 Add to
014621159900400BEARING/THRUST/CRANK£14.35 Add to
015620962500310OILSEALN/A POA
016620974900110PIN, TUBEN/A POA
016A620974900120PIN/TUBE (-277472)N/A POA
017690816081600PINN/A POA
018690816061200PIN/STRAINERN/A POA
018A620974000500PINN/A POA
019690411084000STUD/M8X40£2.80 Add to
020V25134080600STUD/M8X60/7TN/A POA
021690411082200STUD£2.95 Add to
022689445334400DOWELN/A POA
022A629445300200DOWEL£1.11 Add to
023651372104300PIPE, WATER DRAINN/A POA
023A621372100700PIPE/WATERDRAIN (23628)£18.07 Add to
024621331900100CONNECTOR, OIL FILTER£6.69 Add to
025621129100720COVER/INJECTION PUMPN/A POA
026621129200120GASKET/COVER£9.25 Add to
027690191061200BOLT,SEMS/M6X12£3.96 Add to
028620930000600STUDN/A POA
029V30146000600NUT/ M6N/A POA
030V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
031621554901300PINN/A POA
032621176001510LEVELGAGE£27.64 Add to
032A621176001520LEVELGAGE£45.91 Add to
033620960500500PLUG/PT3/4N/A POA
033A620960500510PLUG/ PT3/4 (-169851)N/A POA
034621121002850CYLINDERBLOCK ASSYN/A POA
034A621121002860CYLINDERBLOCK ASSYN/A POA
034B621121002870CYLINDERBLOCK ASSYN/A POA
034C621121002880CYLINDERBLOCK ASSYN/A POA
034D621121002890CYLINDERBLOCK ASSYN/A POA
034E621121005600CYLINDERBLOCK ASSY£3,087.35 Add to
034F621121005610CYLINDERBLOCK ASSYN/A POA
034G621121005620CYLINDERBLOCK ASSYN/A POA
