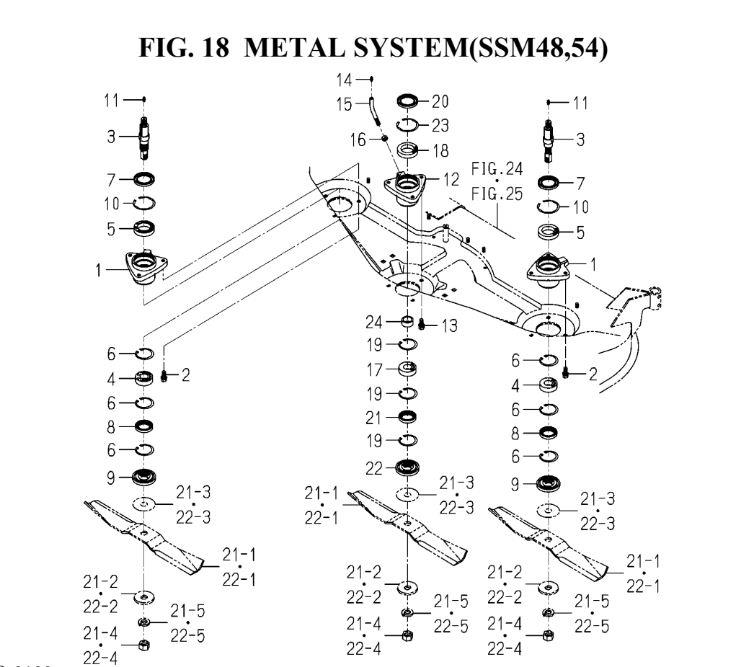

METAL SYSTEM(SSM48,54)(8595-301D-0100)

METAL SYSTEM(SSM48,54)(8595-301D-0100) assembly details for Iseki SSM48-54-60 & SMM54 TXG23F (8595-097-190-10) TXGS24 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	865730100400	METAL/SIDE	£197.58	Add to
002	V21126100250	BOLT,S/M10X25	£2.12	Add to
003	859530103100	SHAFT/BRADE	£211.46	Add to
004	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
005	V60011069080	BEARING,RB/6908	£21.75	Add to
006	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
007	865430100400	SEAL/OIL	£16.84	Add to
008	V74413552080	SEAL,OIL/TC35528	£9.16	Add to
009	865730100700	COLLAR/BRADE	£107.01	Add to
010	V70714006200	RING,SNAP/R62	£5.06	Add to
011	V76015000000	NIPPLE, GREASE	£3.96	Add to
012	865730100500	METAL/CENTER	£212.60	Add to
013	V21126100250	BOLT,S/M10X25	£2.12	Add to
014	V76015000000	NIPPLE, GREASE	£3.96	Add to
015	865730100900	PIPE/GREASE	£26.21	Add to
016	V30426001000	NUT/M10 (SXG19 3624-) (SXG22 1179-)	£2.10	Add to
017	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
018	V60011069080	BEARING,RB/6908	£21.75	Add to
019	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
020	865430100400	SEAL/OIL	£16.84	Add to
021	V74413552080	SEAL,OIL/TC35528	£9.16	Add to
022	865730100700	COLLAR/BRADE	£107.01	Add to
023	V70714006200	RING,SNAP/R62	£5.06	Add to
024	865730100800	COLLAR/26X34X15	£9.87	Add to
