CASE(BEVEL)SYSTEM(SSM60)(8654-201E-0100)

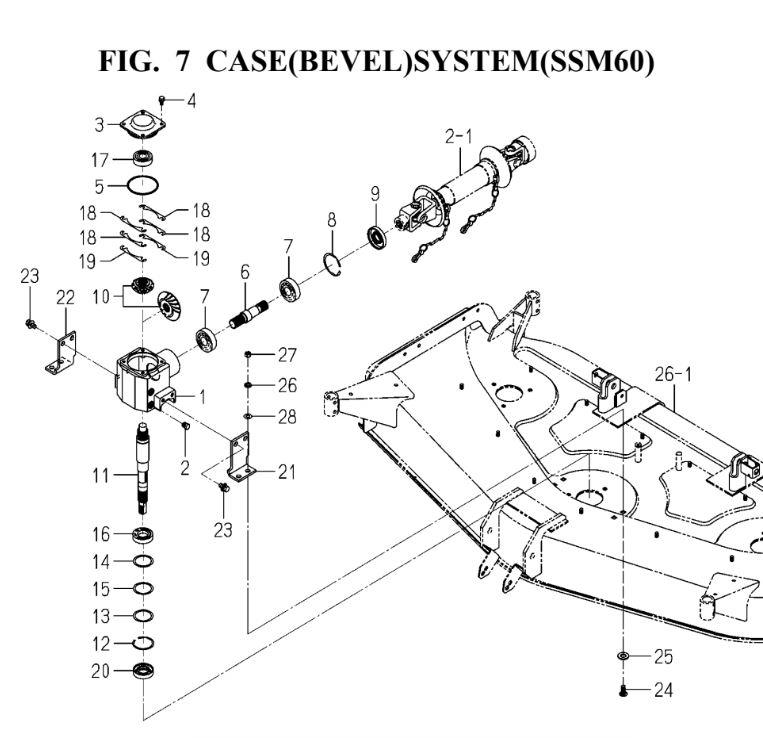

CASE(BEVEL)SYSTEM(SSM60)(8654-201E-0100) assembly details for Iseki SSM48-54-60 & SMM54 TXG23F (8595-097-190-10) TXGS24 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	859520101102	CASE/BEVEL	N/A	POA
002	795520102600	PLUG,DRAIN (1/4)	£7.42	Add to
003	859520101202	COVER/CASE	N/A	POA
004	V21126080160	BOLT,S/M8X16	£2.09	Add to
005	V72110310800	O-RING/1A,G80	£3.66	Add to
006	859520101300	SHAFT/INPUT	£106.26	Add to
007	159421800100	BEARING/BALL 6305SH2	£23.24	Add to
008	V70714006200	RING,SNAP/R62	£5.06	Add to
009	859520102500	SEAL/OIL	£11.39	Add to
010	859520125010	GEAR/BEVEL/25-1 SET	£250.98	Add to
011	865420107210	SHAFT/OUTPUT	£214.57	Add to
012	V70714005500	RING,SNAP/R55	N/A	POA
013	859520101500	WASHER/45X55X01	£6.26	Add to
014	859520101600	SHIM/0.1	£6.67	Add to
015	859520101700	SHIM/0.2	£6.26	Add to
016	V60011060060	BEARING/BALL RB 6006	£15.95	Add to
017	156021400300	BEARING/BALL/6304SH2	£20.07	Add to
018	859520102100	SHIM/0.1	£7.23	Add to
019	859520102200	SHIM/0.2	£7.23	Add to
020	V74413055120	SEAL,OIL/TC305512	£14.40	Add to
021	865420104201	PLATE/L/75X106	N/A	POA
022	865420104301	PLATE/L/75X106	N/A	POA
023	V21166100200	BOLT,SP/M10X207T	£2.86	Add to
024	859730100200	BOLT/M10X25	£3.86	Add to
025	V41126001400	WASHER,PL/M14 (SSM60 100001-)	£1.91	Add to
026	V30426001000	NUT/M10 (SXG19 3624-) (SXG22 1179-)	£2.10	Add to
027	V40116001000	WASHER,SP/M10 (100545-)	£1.64	Add to
028	V41126001000	WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)	£1.52	Add to
