INJECTION PUMP (6004-511O-0100)

INJECTION PUMP (6004-511O-0100) assembly details for Iseki ENGINE(E3112-XB01) PC TXGS24F (1845-097-100-0A) TXGS24 model

Parts list

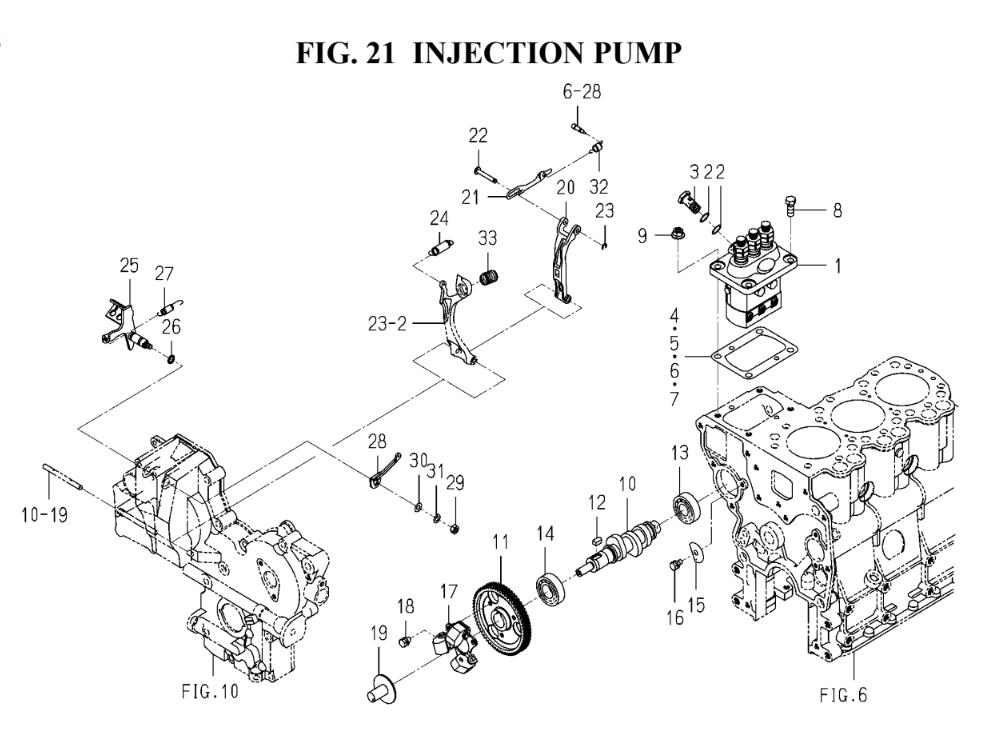

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621560017900INJECTIONPUMP ASSYN/A POA
002621561901000WASHER/AIR BLEEDER£2.99 Add to
003621561900900SCREW/HOLLOW£7.32 Add to
004621975204500SHIM/INJECTIONPUMP (236000-)£3.17 Add to
005621975204400SHIM/INJECTIONPUMP (236000-)£2.99 Add to
006621975204600SHIM/INJECTIONPUMP (236000-)£3.17 Add to
007621975204700SHIM/INJECTIONPUMP (236000-)£3.32 Add to
008V20136080200BOLT/M8X20/7T( 240939-)N/A POA
009381740100100NUT/M08 (206026-)£1.53 Add to
010621562104710CAMSHAFT/INJECTION PN/A POA
011621252400240GEAR/INJECTIONPUMPN/A POA
012620973000500KEY/07X05X09 (20508)£4.04 Add to
013V60011062030BEARING,RB/6203£13.01 Add to
014172920200100BEARING/BALL (211435-)N/A POA
015621253501010PLATE/THRUST/INJECTIONN/A POA
016V21056060120BOLT, S/M6X12/7T (20508)£1.53 Add to
017621552000100FLYWEIGHTN/A POA
018620903004300BOLT/M6X10N/A POA
019621552600400THRUSTPIECE£41.10 Add to
020621554100110ARM/FLOATING COMP£32.58 Add to
021621554300210RINK/CONTROL£13.02 Add to
022621554200600PIN,CONTROL£9.12 Add to
023V71014000400RING, SNAP/4 E£1.43 Add to
024621553100610SPRING/GOVERNOR£15.52 Add to
025621554104000LEVER/CONTROL COMPN/A POA
026V72010190080O-RING/1A,P8£3.06 Add to
027620958000210SPRING,RETURN£3.37 Add to
028621554900710ARM/CONTROL (-180997)N/A POA
029V30126000600NUT/M6£1.64 Add to
030V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
031V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
032621554901200SPRING,STARTING£12.02 Add to
033621553700100SPRING/IDLEN/A POA
