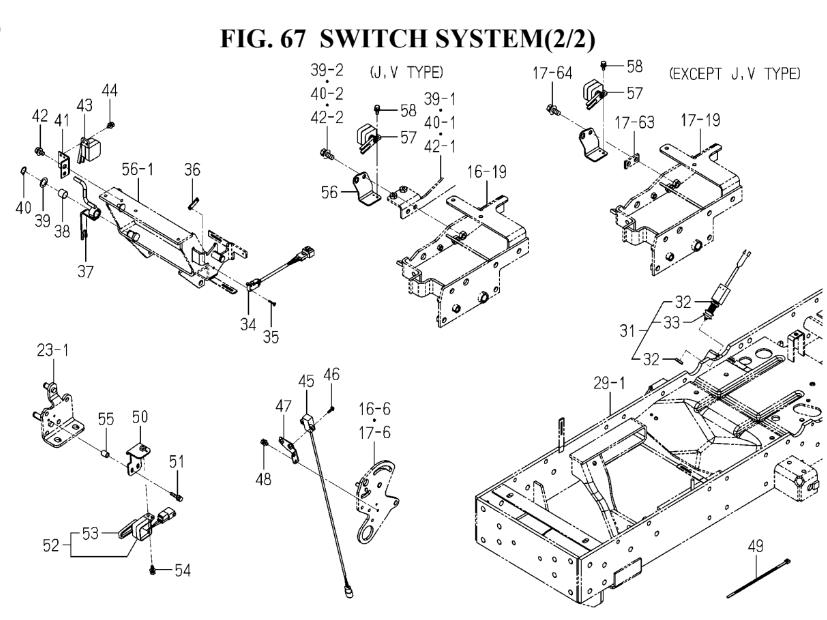

SWITCH SYSTEM(2/2)(1845-680-0100)

SWITCH SYSTEM(2/2)(1845-680-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
031	177265428010	SWITCH/PUSH ASSY	£39.62	Add to
032	177265428100	NUT	N/A	POA
033	177265428200	BOOT	N/A	POA
034	172568022010	SWITCH/LIMIT ASSY	£29.12	Add to
035	183668004400	SCREW/M03X20	N/A	POA
036	364249600710	PLATE,SWITCH (-622) (623-)	£4.85	Add to
037	183668041000	ARM/SENSOR COMP	N/A	POA
038	365010600600	BUSH/15X17X15	N/A	POA
039	351720500700	WASHER	£2.18	Add to
040	V70414001500	RING,SNAP/15 C	£1.76	Add to
041	172568000200	BRACKET/SENSOR/SUB	N/A	POA
042	V21136080160	BOLT,SP/M8X16	£2.10	Add to
043	174068052010	SWITCH/SENSOR ASSY	N/A	POA
044	V21036060160	BOLT,SP/M6X16 (-104713) (-236)	£1.92	Add to
045	172965222000	SWITCH ASSY	£48.37	Add to
046	V12036400160	SCREW,SP/M4X16	N/A	POA
047	184568021000	BRACKET/SWITCH COMP	N/A	POA
048	V21036060120	BOLT,SP/M6X12	£1.85	Add to
049	134240200600	BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)	£7.43	Add to
050	173968172000	BRACKET/SWITCH COMP	N/A	POA
051	V21036060300	BOLT,SP/M6X30	N/A	POA
052	171668033000	SWITCH/LEVER ASSY (-100531)	£93.10	Add to
053	171668022200	ARM	£6.13	Add to
054	V21036060160	BOLT,SP/M6X16 (-104713) (-236)	£1.92	Add to
055	173968107100	COLLAR/08X12X15	N/A	POA
056	184568000100	BRACKET/SWITCH/HST	N/A	POA
057	174068052010	SWITCH/SENSOR ASSY	N/A	POA
058	V21036060160	BOLT,SP/M6X16 (-104713) (-236)	£1.92	Add to
