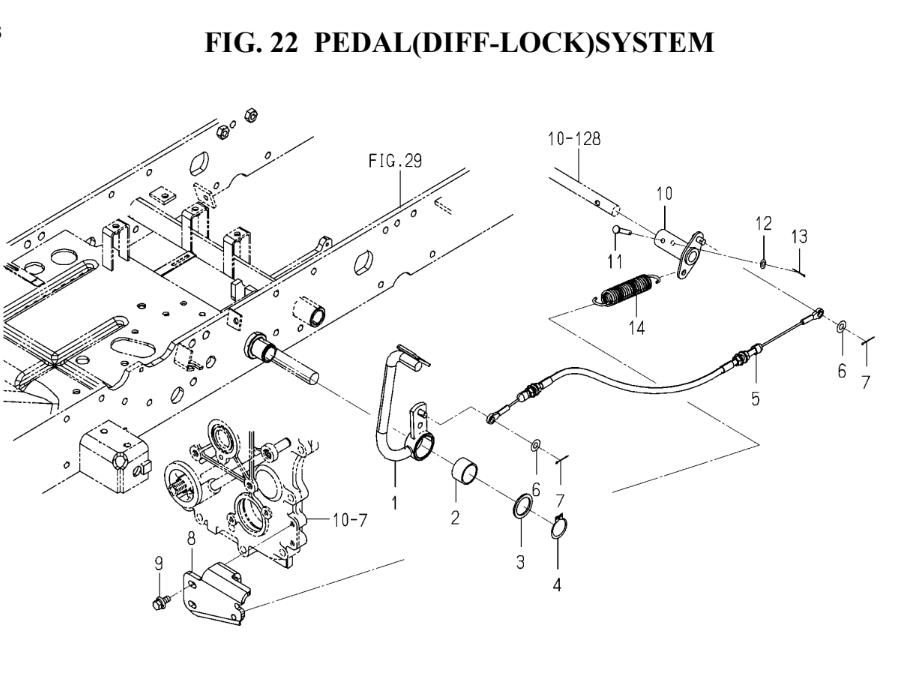

PEDAL(DIFF-LOCK)SYSTEM(1845-313-0100)

PEDAL(DIFF-LOCK)SYSTEM(1845-313-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184531321000PEDAL/DIFFLOCKCOMPN/A POA
002158131200100BUSH/28X32X20N/A POA
003183631304100WASHER/28X37X02N/A POA
004V70414002800RING,SNAP/28 CN/A POA
005183631320010CABLE/DIFF. ASSYN/A POA
007V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
008199931300100PLATE/DIFFN/A POA
009V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
010172531331000ARM/DIFF/24 COMPN/A POA
011172530500300PIN/06X32£2.77 Add to
012V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
013V50016200200PIN,SPLIT/2X20 (SXG19 -9441) (SXG22 -3148)N/A POA
014183627204500SPRING/HE108N/A POA
