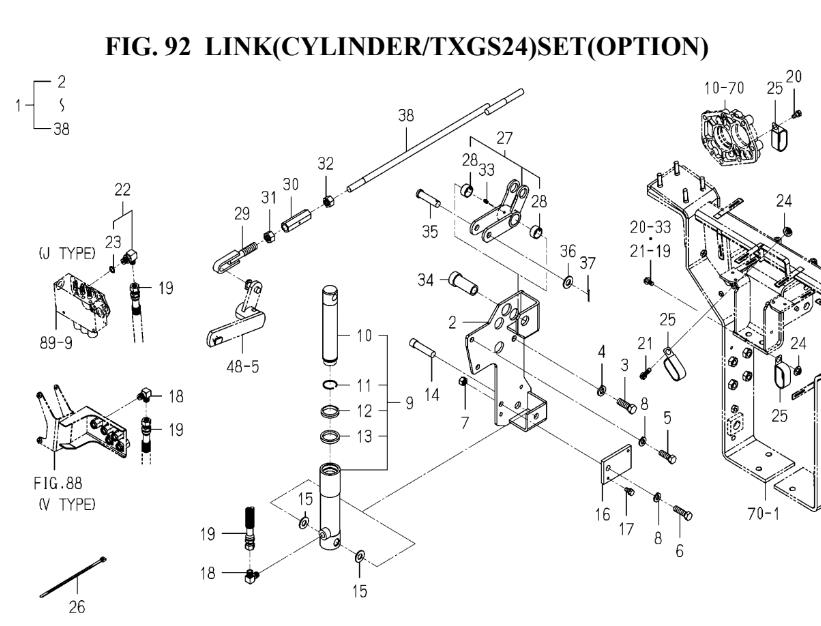

LINK(CYLINDER/TXGS24)SET(OPTION)(1739-555X-0100)

LINK(CYLINDER/TXGS24)SET(OPTION)(1739-555X-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001173955540000LINK/CYLINDER/TXGS24N/A POA
002173955521000BRACKET/CYLINDER COMPN/A POA
003169643400300BOLT£4.91 Add to
004V40116001400WASHER,SP/M14N/A POA
005V20136120350BOLT/M12X35/7T (SXG22 -35)£2.59 Add to
006V20136120400BOLT/M12X40/7T (SXG19 -6253) (SXG22 -2066)N/A POA
007V30446001200NUT/M12/7T£3.48 Add to
008V40116001200WASHER,SP/M12 (SSM60 -100000)£1.64 Add to
009173955422000CYLINDER/TXG ASSY£346.68 Add to
010K18203200100PISTONN/A POA
011K18200200200STOPPER,PISTONN/A POA
012K18203200200ROD PACKINGN/A POA
013K18203200300DUST/SEALN/A POA
014173955400110PIN/15X72N/A POA
015173955500200WASHER/15X30X02N/A POA
016173955500100SPACERN/A POA
017V21126080160BOLT,S/M8X16£2.09 Add to
018376818502220ADAPTER/90DEG/PUMP (100639-)N/A POA
019174051758010HOSE/1500 ASSY£95.92 Add to
020V21126080160BOLT,S/M8X16£2.09 Add to
021V21126080400BOLT,SEMS (SXG19 3267-) (SXG22 1073-)N/A POA
022170540823000ADAPTER/L/G1/4 ASSY£31.01 Add to
023V72011240110O-RING/1B,P11 (SXG19 -4766) (SXG22 -1600)£3.64 Add to
024V36326000800NUT/WASHER/M8 (SSM60 -100000)£2.30 Add to
025365026100100CLAMP/28X55 (508-)£3.73 Add to
026134240200600BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)£7.43 Add to
027173955522000ARM/LIFT ASSYN/A POA
028865420320100BUSH/25X28X15£12.53 Add to
029173955426000ROD/LINK COMPN/A POA
030156014000200BUCKLE/TURN/M16£24.37 Add to
031V30426001600NUT/M16£2.86 Add to
032365015200900NUT/M16 LHN/A POA
033V76015000000NIPPLE, GREASE£3.96 Add to
034173955400210PIN/25X71£17.16 Add to
035170550800200PIN/15X60 (SXG19 -1190) (SXG22 -524)£9.22 Add to
036V41126001400WASHER,PL/M14 (SSM60 100001-)£1.91 Add to
037V50016300250PIN,SPLIT/3X25 (SSM60 100001-)£1.64 Add to
038173955524000ROD/LINK COMPN/A POA
