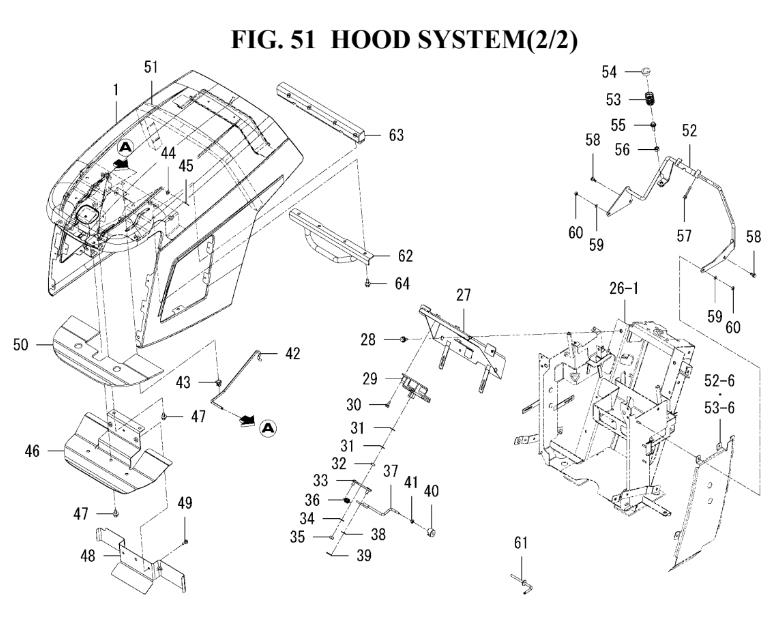

HOOD SYSTEM(2/2)(1845-601-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 184560121010 | HOOD COMP | N/A | POA |
027 | 183660149000 | BRACKET/PANEL COMP | N/A | POA |
028 | V21166080200 | BOLT,SP/M8X20/7T | £2.69 | Add to |
029 | 184560123000 | BRACKET/STOPPER COMP | N/A | POA |
030 | V21066060160 | BOLT,SP/M6X16/7T | N/A | POA |
032 | 183660146210 | COLLAR/9X14X5 | N/A | POA |
033 | 183660148000 | HOOK COMP | N/A | POA |
035 | 171931200100 | U-NUT (100136-) | £2.49 | Add to |
036 | 183660105600 | SPRING/HE036 | N/A | POA |
037 | 184560128000 | ROD/PUSH COMP | N/A | POA |
039 | V50016250200 | PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-) | £1.64 | Add to |
040 | 184560100310 | CAP/PUSH | N/A | POA |
041 | V30126000600 | NUT/M6 | £1.64 | Add to |
042 | 183660108800 | ROD/HOOD | N/A | POA |
043 | P10360100500 | HOLDER/ROD | N/A | POA |
044 | V41126000600 | WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-) | £1.64 | Add to |
045 | V50016200150 | PIN,SPLIT/2 X15 | N/A | POA |
046 | 184560122000 | BRACKET COMP | N/A | POA |
047 | V21136080160 | BOLT,SP/M8X16 | £2.10 | Add to |
048 | 184560109200 | COVER | N/A | POA |
049 | V21036060160 | BOLT,SP/M6X16 (-104713) (-236) | £1.92 | Add to |
050 | 184560100500 | INSULATOR/HEADLAMP | N/A | POA |
051 | 183660109110 | INSULATOR/30X30X920 | N/A | POA |
052 | 183660152000 | SUPPORT/BRACKET COMP | N/A | POA |
053 | 183660105500 | SPRING/HC053 | N/A | POA |
054 | 782150100500 | BUSH/19X30X14 | £8.46 | Add to |
055 | V21136080250 | BOLT,SP/M8X25 | £1.90 | Add to |
056 | V30426001000 | NUT/M10 (SXG19 3624-) (SXG22 1179-) | £2.10 | Add to |
057 | V21066060400 | BOLT,SP/M6X40/7T | N/A | POA |
058 | V23036060160 | FLANGEBOLT/M6X16 | £1.46 | Add to |
059 | V40116000600 | WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-) | £1.64 | Add to |
060 | V30126000600 | NUT/M6 | £1.64 | Add to |
061 | 173960187000 | N/A | £28.95 | Add to |
062 | 184560131000 | FRAME/HOOD/LOWER COMP | N/A | POA |
063 | 184560132000 | FRAME/HOOD/UPPER COMP | N/A | POA |
064 | V21166080200 | BOLT,SP/M8X20/7T | £2.69 | Add to |
