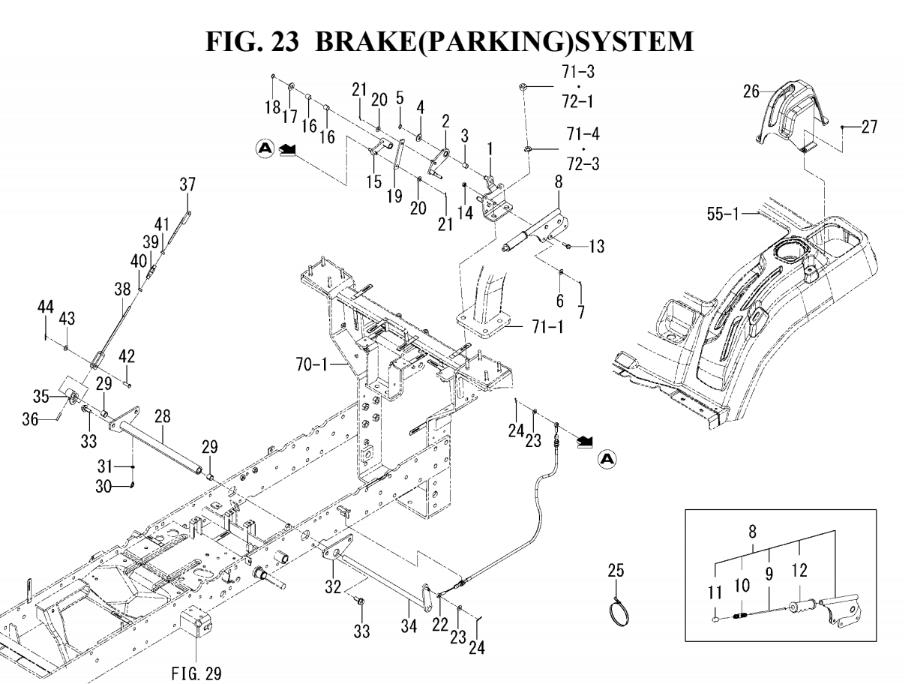

BRAKE(PARKING)SYSTEM(1845-314-0100)

BRAKE(PARKING)SYSTEM(1845-314-0100) assembly details for Iseki CHASSIS PC TXGS24 (1845-097-100-0A) TXGS24 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184531441000STAY/LEVER COMPN/A POA
002184531442000ARM/PARKING/A COMPN/A POA
003168927131100BUSH/12X14X15£5.82 Add to
004V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
005V70414001200RING,SNAP/12 C£1.76 Add to
007J93250000800PIN/COTTERN/A POA
008174031330010LEVER/PARKING ASSY£209.88 Add to
009144231320200ROD£2.52 Add to
010144432827300SPRING£3.72 Add to
011144432827200BUTTON£3.16 Add to
012174031330100GRIP/ORANGE£5.22 Add to
013V21126080250BOLT,S/M8X25 (SRM48 200001-)£1.94 Add to
014V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
015184531443000ARM/BRAKE COMPN/A POA
016169027131100BUSH/12X14X15N/A POA
017V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
018V70414001200RING,SNAP/12 C£1.76 Add to
019184531400800PLATE/I/19X106N/A POA
021J93250000800PIN/COTTERN/A POA
022184531444000CABLE/PARKING ASSYN/A POA
024V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
025134240200600BAND,WIRE/250 (SXG19 515-) (SXG22 102-) (-622) (623-)£7.43 Add to
026184531400100COVER/PARKINGN/A POA
027180760100300TAPPINGSCREW/TRUSSN/A POA
028184531422000PIPE/PARKING COMPN/A POA
029364011100110BUSH/16X18X15£4.57 Add to
030V76015000000NIPPLE, GREASE£3.96 Add to
031V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
032184531422200PLATEN/A POA
033V23136120250FLANGEBOLT/M12X25N/A POA
034184531424000ARM/PARKING COMPN/A POA
035184531427000ARM/PARKING/RH COMPN/A POA
036V53016060280PIN/GROOVEN/A POA
037184531432010ROD/124 COMPN/A POA
038183631244010ROD/230 COMPN/A POA
039183631204710BUCKLE/TURN/M08N/A POA
040183631204810NUT/SM/LH/M08N/A POA
041V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
042160855400200PIN/08X26£3.47 Add to
044V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
