METAL SYSTEM(8654-301D-0100)

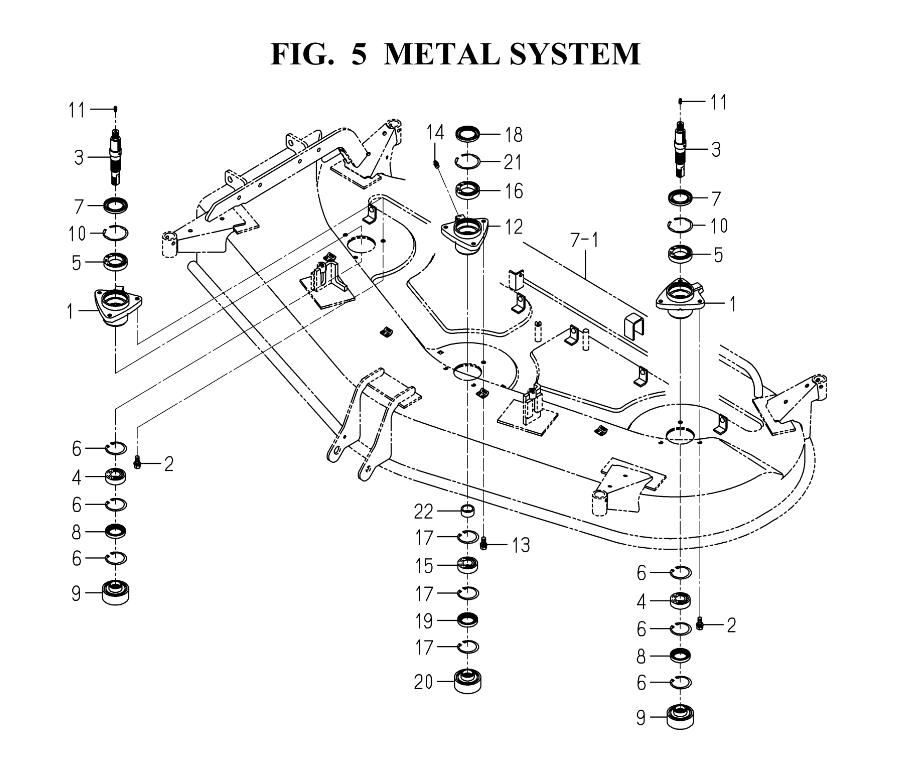

METAL SYSTEM(8654-301D-0100) assembly details for Iseki PC SSM72 FOR SZ330 (8655-097-200-00) SZ330 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	865730100400	METAL/SIDE	£197.58	Add to
002	V21126100250	BOLT,S/M10X25	£2.12	Add to
003	865430108110	SHAFT/SIDE	£194.58	Add to
004	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
005	V60011069080	BEARING,RB/6908	£21.75	Add to
006	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
007	865430100400	SEAL/OIL	£16.84	Add to
008	V74413552080	SEAL,OIL/TC35528	£9.16	Add to
009	865430108210	COLLAR/BRADE	£84.33	Add to
010	V70714006200	RING,SNAP/R62	£5.06	Add to
011	V76015000000	NIPPLE, GREASE	£3.96	Add to
012	865430107100	METAL/CENTER	£114.02	Add to
013	V21126100250	BOLT,S/M10X25	£2.12	Add to
014	V76115000000	NIPPLE/GREASE	N/A	POA
015	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
016	V60011069080	BEARING,RB/6908	£21.75	Add to
017	V70514005200	RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)	£3.96	Add to
018	865430100400	SEAL/OIL	£16.84	Add to
019	V74413552080	SEAL,OIL/TC35528	£9.16	Add to
020	865430108210	COLLAR/BRADE	£84.33	Add to
021	V70714006200	RING,SNAP/R62	£5.06	Add to
022	865730100800	COLLAR/26X34X15	£9.87	Add to
