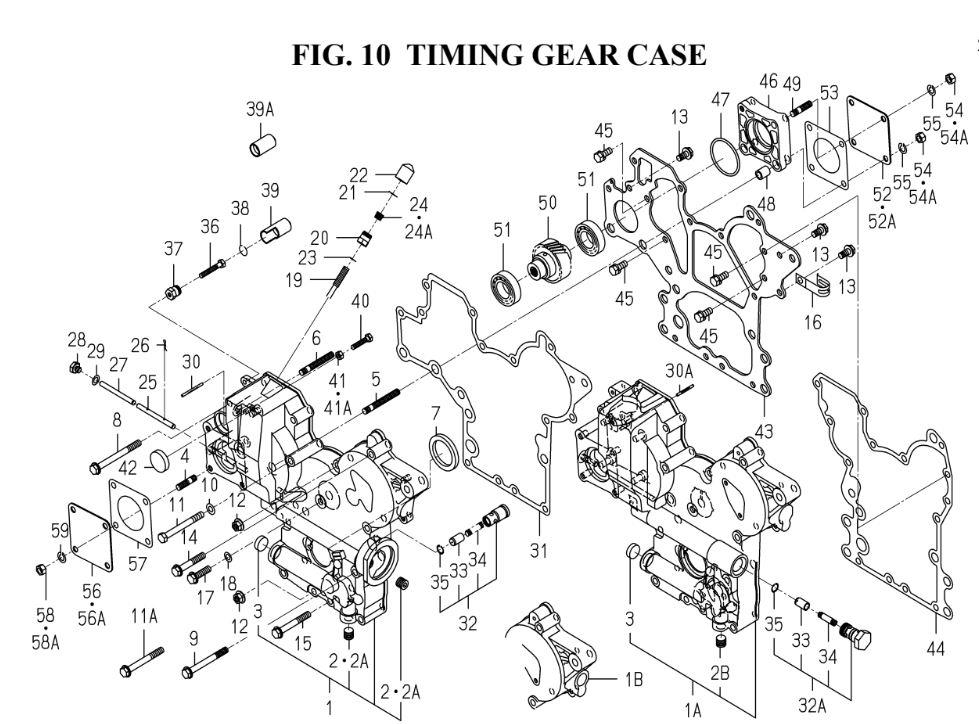

TIMING GEAR CASE(6005-241D-0100,6005-241D-0200)

TIMING GEAR CASE(6005-241D-0100,6005-241D-0200) assembly details for Iseki ENGINE(E3CDVG02) PC SZ330 (1752-097-110-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621131001360GEARCASE ASSY (-181086)N/A POA
001A621131001370GEARCASE ASSY (-192034)N/A POA
001B621131001380GEARCASE ASSY(-207032)N/A POA
002620960500300PLUG/PT1/4 (-160372)N/A POA
002A620960500310PLUG/PT1/4 (-205250)N/A POA
003620961000400CUP/SEALING/20£6.22 Add to
004690411082200STUD£2.95 Add to
005690411085500STUD£2.63 Add to
006690411085000STUD£2.63 Add to
007620962500200SEAL,OIL£10.05 Add to
008V23136080850FLANGEBOLT/M8X85£2.38 Add to
009V23136080750FLANGEBOLT/M8X75£2.38 Add to
010620950000600WASHER/08X1.2 (-180997)N/A POA
011V20136080750BOLT (-180997)N/A POA
011AV23136080700FLANGEBOLT/M8X75 (180998-)£1.72 Add to
012381740100100NUT/M08 (206026-)£1.53 Add to
013V23136080160FLANGEBOLT/M8X16 (SXG19 9114-) (SXG22 3050-)£1.67 Add to
014V23136080500FLANGEBOLT/M8X50£2.28 Add to
015V23136080600FLANGEBOLT/M8X60N/A POA
016142562100400HOLDER/JE/9-9£3.29 Add to
017V23136080300FLANGEBOLT/M8X30£1.52 Add to
018620950000300WASHER/08X14X01£2.09 Add to
019621554600600STOPPER/MAX POWER ST (-257518)N/A POA
020621554905700NUT/MAXPOWERSTOPPER (-276630)N/A POA
021620958700610RING/TAMPER REGISTANN/A POA
022621554905810CAP/MAXPOWERSTOPPER (-276887)N/A POA
023620992000200PACKING£1.87 Add to
024650960501910PLUG (-183859)£8.54 Add to
024AV7801400002BBOLT, RAPPING, PT1/8 (183860-)N/A POA
025621554200420PIN/ARMN/A POA
026P11730300300PIN/SNAPN/A POA
027621554200510PIN (-216031)N/A POA
028620960000400PLUG/SCREWN/A POA
029620950000300WASHER/08X14X01£2.09 Add to
030620974000100PIN, GROOVE (-181931)N/A POA
030A620974000600PIN/GROOVE (181932-)£2.16 Add to
031621131200510GASKET/GEARCASE£28.84 Add to
032621316000310VALVE/RELIEF ASSY (-180997)£46.42 Add to
032A621316000500VALVE/RELIEF ASSY (180998-)£57.75 Add to
033621316100310PISTON/VALVE/RELIEFN/A POA
034621316400100SPRING/RELIEF VALVEN/A POA
035V70514001200RING, SNAP/12 C£1.76 Add to
036620905000300BOLT/HI-EDLESTOPPERN/A POA
037621554905900NUT/HI-IDLESTOPPERN/A POA
038620958700610RING/TAMPER REGISTANN/A POA
039621554906810CAP/HI-IDLESTOPPER (-180997)N/A POA
039A621554906010CAP/MAXPOWERSTOPPER (180998-)N/A POA
040620905000200BOLT/M6£2.58 Add to
041690911040600NUT (-178958)£2.60 Add to
041AV30126000600NUT/M6£1.64 Add to
042362554000400CAP, BLANK/30 (-180997)£5.60 Add to
043621131101320PLATE/FRONT£208.98 Add to
044621131200610GASKET/PLATE£26.02 Add to
045690205081600BOLTN/A POA
046621131900300SPACERN/A POA
047V72310200500O-RING/1A,S50£2.71 Add to
048620974900120PIN/TUBE (-277472)N/A POA
049690411082200STUD£2.95 Add to
050621253000520SHAFT/HYDRAULIC ASSY£208.98 Add to
051V60011060050BEARING,RB/6005 (-211434)£15.46 Add to
052651132108300COVER (-199529)N/A POA
052A621132102200COVER/HYDRAULIC (199530-)N/A POA
053621132200200GASKET/COVER£16.02 Add to
054690911040800NUT/M8 (-178958)N/A POA
054AV30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
055V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
056651132108300COVER (-199529)N/A POA
056A621132102200COVER/HYDRAULIC (199530-)N/A POA
057621132200200GASKET/COVER£16.02 Add to
058690911040800NUT/M8 (-178958)N/A POA
058AV30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
059V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
