LEVER(HST)SYSTEM(1/2)(1752-272-0100)

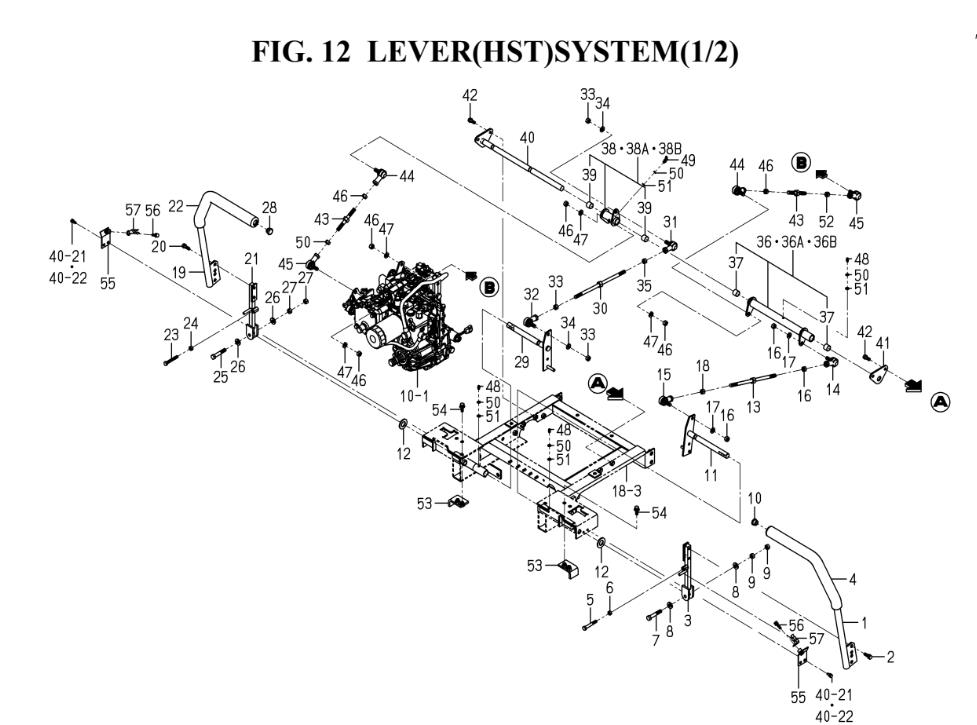

LEVER(HST)SYSTEM(1/2)(1752-272-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-300-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175227220020LEVER/RUNNING/L COMP£51.32 Add to
002V21166080250BOLT,SP/M8X25/7TN/A POA
003175227222000LEVER/NEUTRAL/L COMPN/A POA
004175227200200GRIP£18.86 Add to
005W20136080550BOLTN/A POA
006V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
007V20136100450BOLT/M10X55/9TN/A POA
008137612100100WASHER/11X22X3£4.84 Add to
009V30446001000NUT/M10/7T£3.21 Add to
010214073000100CAP/RUBBER/15AN/A POA
011175227223000ARM/HST/LHN/A POA
012V41126001800WASHER,PL/M18£2.38 Add to
013175227225000ROD/LH COMPN/A POA
014165666400200JOINT/BALL/RH ASSY£20.25 Add to
015175227200600JOINT/BALL/LH ASSY£26.10 Add to
016V33426001000NUT/M10£3.89 Add to
017V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
018175227200700NUT/LH/M10X1.25N/A POA
019175227221010LEVER/RUNNING/R COMPN/A POA
020V21166080250BOLT,SP/M8X25/7TN/A POA
021175227254000LEVER/NEUTRAL/R COMP (599-)N/A POA
022175227200200GRIP£18.86 Add to
023W20136080550BOLTN/A POA
024V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
025V20146100550BOLT/M10X55 (214-) (100551-)N/A POA
026137612100100WASHER/11X22X3£4.84 Add to
027V30446001000NUT/M10/7T£3.21 Add to
028214073000100CAP/RUBBER/15AN/A POA
029175227224000ARM/HST/RH COMPN/A POA
030175227226000ROD/RH COMPN/A POA
031165666400200JOINT/BALL/RH ASSY£20.25 Add to
032175227200600JOINT/BALL/LH ASSY£26.10 Add to
033V33426001000NUT/M10£3.89 Add to
034V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
035175227200700NUT/LH/M10X1.25N/A POA
036175227240000TUBE ASSY (-100077)£121.89 Add to
036A175227240010TUBE ASSY (-100634)N/A POA
036B175227240040TUBE ASSY (100635-)N/A POA
037365920320410BUSH/17X19X15N/A POA
038175227241000TUBE ASSY (-100077)£99.30 Add to
038A175227241010TUBE ASSY (-100634)N/A POA
038B175227241040TUBE ASSY (100635-)N/A POA
039365920320410BUSH/17X19X15N/A POA
040175227230000BAR COMPN/A POA
041175227200900PLATEN/A POA
043175227229000ROD/95 COMPN/A POA
044165666400200JOINT/BALL/RH ASSY£20.25 Add to
045175227200600JOINT/BALL/LH ASSY£26.10 Add to
046V33426001000NUT/M10£3.89 Add to
047V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
048V76015000000NIPPLE, GREASE£3.96 Add to
049V76215000000NIPPLE,GREASE/B-M6FN/A POA
050V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
051V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
052175227200700NUT/LH/M10X1.25N/A POA
053175227234010PLATE COMP (116-)N/A POA
054V21166080250BOLT,SP/M8X25/7TN/A POA
055175227245000PLATE COMP (237-)N/A POA
056V21036060250BOLT,SP/M6X25£1.83 Add to
057361063100200HANGER,SUPPORT£9.20 Add to
