JACK UP SYSTEM(1752-555-0100)

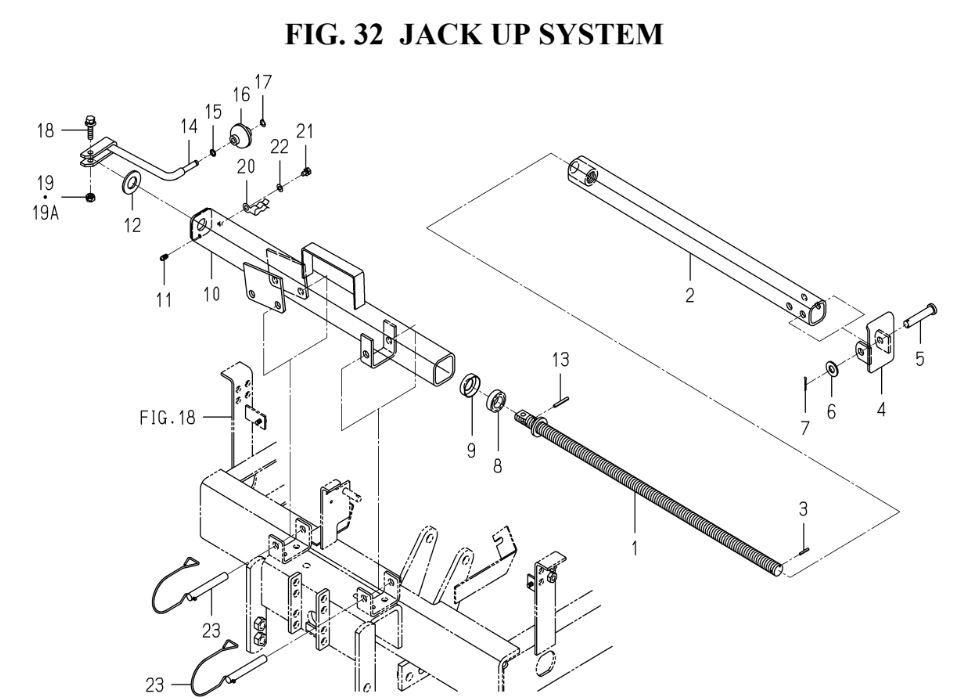

JACK UP SYSTEM(1752-555-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-300-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175255521000SCREW/LH/TR20 COMPN/A POA
002175255523000TUBE/LH/TR20 COMPN/A POA
003V58014030200PIN/SPRING/3X20 WN/A POA
004175255522000STAND/LIFT COMPN/A POA
005218612405710PIN/12X55N/A POA
006V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
007V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
008V61011511040BEARING,TB/51104N/A POA
009798150100100COVER,THRUSTN/A POA
010175255525010COVER/JACK COMPN/A POA
011V76015000000NIPPLE, GREASE£3.96 Add to
012V41126002000WASHER,PL/M20£2.73 Add to
013V58014040320PIN/SPRING/4X32 WN/A POA
014175255524000HANDLE COMPN/A POA
015V72010190080O-RING/1A,P8£3.06 Add to
016130272650200GRIPN/A POA
017784350101200RING/STOP/GRIP/8N/A POA
018V21136080350BOLT,SP/M8X35£1.84 Add to
019214411700200NUT/U/M8 (-100135)£2.57 Add to
019A171931200100U-NUT (100136-)£2.49 Add to
020361063100200HANGER,SUPPORT£9.20 Add to
021V21026060100BOLT/S M6X10 (292-)N/A POA
022V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
023175255526000PIN/12X86 COMPN/A POA
