JACK ASSY(REPAIR)(1752-555Z-0100)

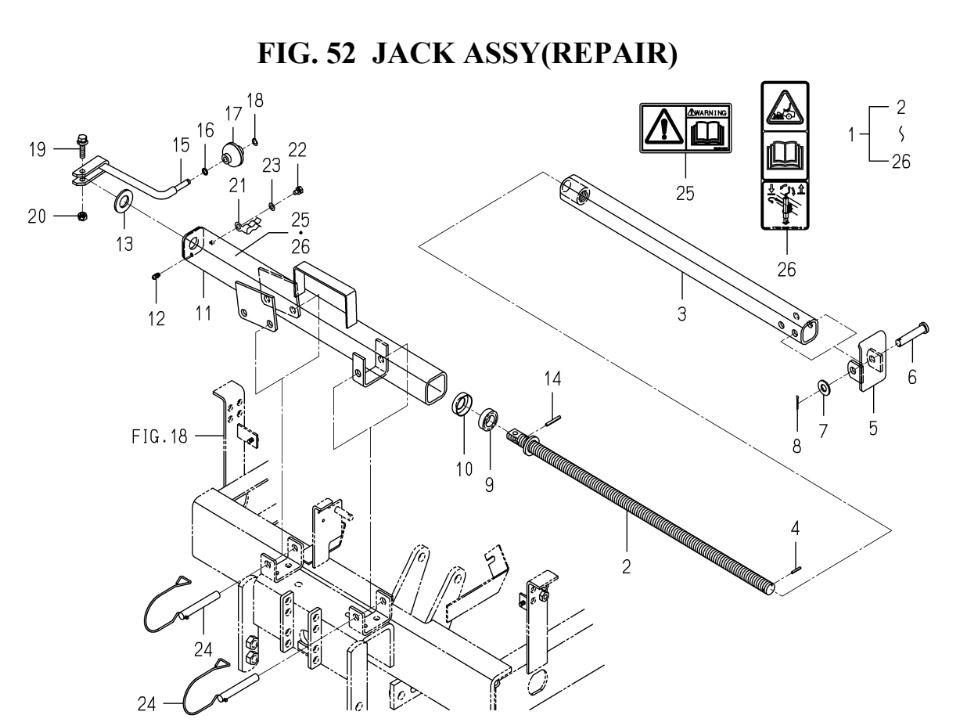

JACK ASSY(REPAIR)(1752-555Z-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-300-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175255530000JACK ASSYN/A POA
002175255521000SCREW/LH/TR20 COMPN/A POA
003175255523000TUBE/LH/TR20 COMPN/A POA
004V58014030200PIN/SPRING/3X20 WN/A POA
005175255522000STAND/LIFT COMPN/A POA
006218612405710PIN/12X55N/A POA
007V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
008V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
009V61011511040BEARING,TB/51104N/A POA
010798150100100COVER,THRUSTN/A POA
011175255525010COVER/JACK COMPN/A POA
012V76015000000NIPPLE, GREASE£3.96 Add to
013V41126002000WASHER,PL/M20£2.73 Add to
014V58014040320PIN/SPRING/4X32 WN/A POA
015175255524000HANDLE COMPN/A POA
016V72010190080O-RING/1A,P8£3.06 Add to
017130272650200GRIPN/A POA
018784350101200RING/STOP/GRIP/8N/A POA
019V21136080350BOLT,SP/M8X35£1.84 Add to
020214411700200NUT/U/M8 (-100135)£2.57 Add to
021361063100200HANGER,SUPPORT£9.20 Add to
022V21026060100BOLT/S M6X10 (292-)N/A POA
023V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
024175255526000PIN/12X86 COMPN/A POA
025177390401100LABEL/W/DRIVE/UN/A POA
026175290305200LABEL/C/JACK£5.91 Add to
