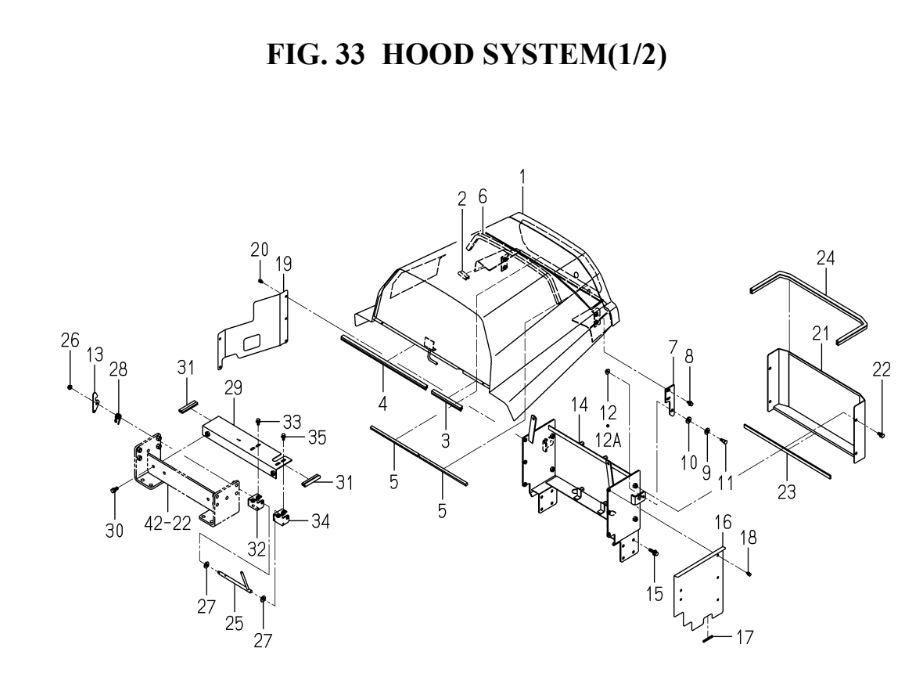

HOOD SYSTEM(1/2)(1752-601A-0100)

HOOD SYSTEM(1/2)(1752-601A-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-300-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175260121020HOOD/ENGINE COMP(620-)£1,158.90 Add to
002167378001100TRIM/50 (71-)N/A POA
003175260102400INSULATOR/170N/A POA
004175260102500INSULATOR/500N/A POA
005175260102100INSULATOR/10X10X280N/A POA
006175210200700INSULATOR/15X15X650N/A POA
007175260101000PLATE/1/50X150£19.43 Add to
008V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
009V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
010168962100700WASHER/12X26X04£4.04 Add to
011168962100810BOLT£5.13 Add to
012250260100500NUT/CONICAL WASHER (-100419)£2.10 Add to
012AV36326000800NUT/WASHER/M8 (SSM60 -100000)£2.30 Add to
013165060100300PLATE/HOOK£5.11 Add to
014175260124000FRAME/HOOD COMPN/A POA
015V21166100350BOLT/SP/M10X35/7TN/A POA
016175260100830PLATE/SIDE/LHN/A POA
017160060100200INSULATORN/A POA
018V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
019175260101510PLATE/MUFFLERN/A POA
020V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
021175260126010COVER/REAR COMP£245.35 Add to
022V21126100200BOLT,SEMS£2.30 Add to
023175260100500INSULATOR /15X510N/A POA
024175260102910INSULATOR/865 (131-)N/A POA
025175260127000LEVER COMPN/A POA
026V36226000800NUT/WASHER/M8£1.77 Add to
027V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
028111040400410SPRING/HT018N/A POA
029175260137000PLATE/L/435X95 COMPN/A POA
030V21126100250BOLT,S/M10X25£2.12 Add to
031165060100900TRIM/90N/A POA
032175260129010PLATE/L/85X90/A COMPN/A POA
033V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
034175260131010PLATE/L/85X90/B COMP (217-)N/A POA
035V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
