SEAT SYSTEM(1752-611-0100)

SEAT SYSTEM(1752-611-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-110-10) SZ330 model

Parts list

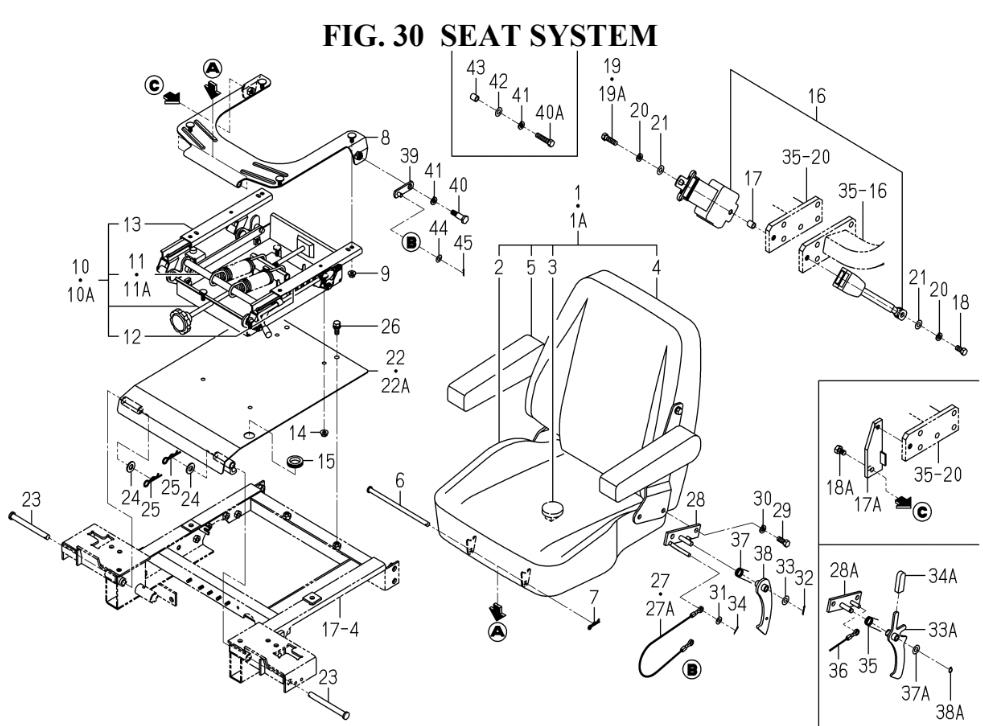

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175261120000SEAT/SZ ASSY(-609)N/A POA
001A175261120010SEAT/SZ ASSY(-100544)£666.08 Add to
002175261121000CUSHION ASSY (-100544)£287.81 Add to
003174261122200SWITCH/SEAT ASSY (-100544)£53.59 Add to
004175261122000BACK ASSY (-100544)N/A POA
005175261123000ARMREST ASSY (-100544)£88.00 Add to
006148861100310PIN,SEAT SET (100545-)£6.97 Add to
007130524100100PIN,HAIR (100545-)£1.92 Add to
008171961161020BRACKET/SEAT COMP (100545-)£99.83 Add to
009V36226000800NUT/WASHER/M8£1.77 Add to
010175261135000SUSPENSION/SEAT ASSY (-386)N/A POA
010A175261135010SUSPENSION/SEAT ASSY (387-) (-100119)N/A POA
011175261135100SUSPENSION/SEAT (-386)N/A POA
011A175261135110SUSPENSION/SEAT (387-) (-100119)N/A POA
012171961162200RAIL/SLIDE/SEAT/L (-100119)N/A POA
013171961162300RAIL/SLIDE/SEAT/R (-100639)N/A POA
014V36226000800NUT/WASHER/M8£1.77 Add to
015365043201400GROMMET (16X25X2) (100545-)N/A POA
016174261124000BELT/SEAT SET (100545-)£159.08 Add to
017163640200400COLLAR/10X14X15 (-114) (100545-)N/A POA
017A175261132000STAY/BELT/SEAT COMP (115-) (-100544)N/A POA
018V20146100200BOLT/M10X20 (-114)N/A POA
018A174161100300BOLT/M10X16/10T (115-) (100545-)N/A POA
019V20146100350BOLT/M10X35/9TN/A POA
019AV20146100250BOLT/M10X25/9T (-100544)£1.83 Add to
020V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
021V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
022175261125000PLATE/SEAT COMP (-248)N/A POA
022A175261125010PLATE/SEAT COMP (249-) (-100038)N/A POA
023175261100100PIN/12X124 (100545-)N/A POA
024V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
025130593100300PIN,HAIR (100545-)£3.96 Add to
026V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
027175261100900CABLE/480 (-115)£12.69 Add to
027A175261100910CABLE/480 (-194) (100545-)N/A POA
028175261127000HINGE COMP (-194)N/A POA
028A175261127010STAYHOOK COMP (195-) (-100544)N/A POA
029V20326100300BOLT M10X30 (-100038)N/A POA
030V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
032V50016300150PIN, SPLIT/3 X15 (-194)N/A POA
033V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
033A175261128010HOOK/SEAT COMP (195-) (-100544)N/A POA
034V50016250150PIN,SPLIT/2.5X15 (-194) (100545-)£1.60 Add to
034A360020101300GRIP,BRAKE (100545-)£7.47 Add to
035866435500700SPRING/HT020 (195-) (100545-)£6.21 Add to
035866435500700SPRING/HT020 (195-) (100545-)£6.21 Add to
036175261100910CABLE/480 (-194) (100545-)N/A POA
037AV41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
038175261128000HOOK COMP (-194)N/A POA
038AV70414001000RING,SNAP/28 C (195-) (100545-)N/A POA
039175261131000PLATE/IR/19X62 COMP (100545-)N/A POA
040368965001400PIN/12X40 (-114)N/A POA
040AV20146100450BOLT/M10X45 (115-) (100545-)N/A POA
041V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
042V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
043163640200400COLLAR/10X14X15 (-114) (100545-)N/A POA
045V50016250150PIN,SPLIT/2.5X15 (-194) (100545-)£1.60 Add to
