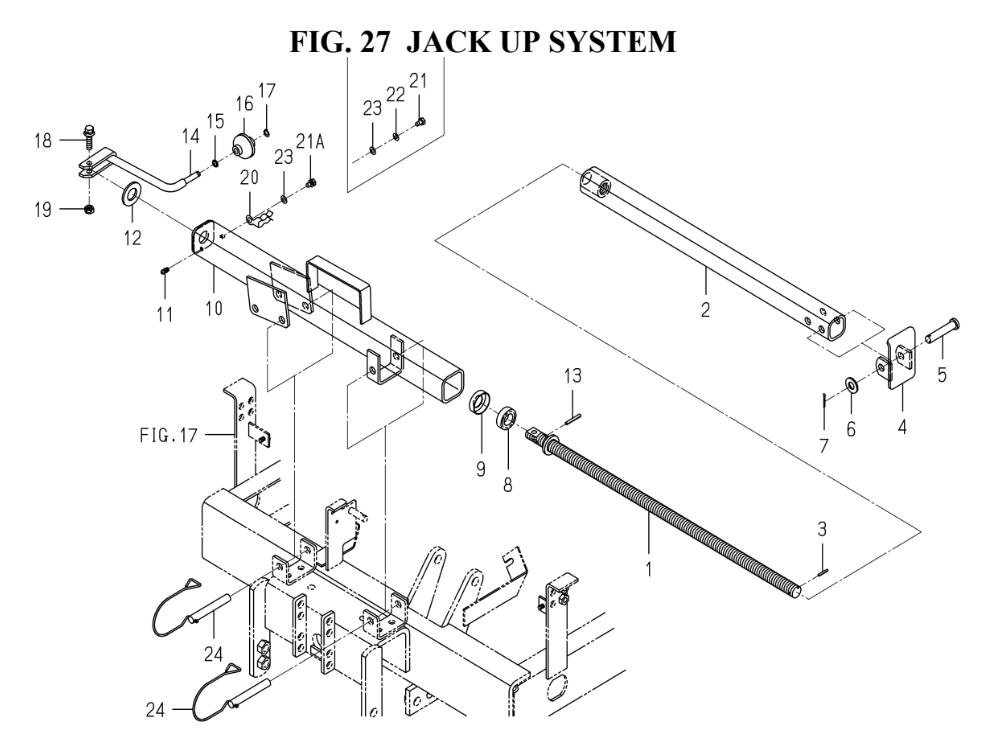

JACK UP SYSTEM(1752-555-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-110-10) SZ330 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 175255521000 | SCREW/LH/TR20 COMP | N/A | POA |
002 | 175255523000 | TUBE/LH/TR20 COMP | N/A | POA |
003 | V58014030200 | PIN/SPRING/3X20 W | N/A | POA |
004 | 175255522000 | STAND/LIFT COMP | N/A | POA |
005 | 218612405710 | PIN/12X55 | N/A | POA |
006 | V41126001200 | WASHER,PL/M12 (SSM54 100001-) | £2.64 | Add to |
007 | V50016250200 | PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-) | £1.64 | Add to |
008 | V61011511040 | BEARING,TB/51104 | N/A | POA |
009 | 798150100100 | COVER,THRUST | N/A | POA |
010 | 175255525010 | COVER/JACK COMP | N/A | POA |
011 | V76015000000 | NIPPLE, GREASE | £3.96 | Add to |
012 | V41126002000 | WASHER,PL/M20 | £2.73 | Add to |
013 | V58014040320 | PIN/SPRING/4X32 W | N/A | POA |
014 | 17525524000 | HANDLE COMP | N/A | POA |
015 | V72010190080 | O-RING/1A,P8 | £3.06 | Add to |
016 | 130272650200 | GRIP | N/A | POA |
017 | 784350101200 | RING/STOP/GRIP/8 | N/A | POA |
018 | V21136080350 | BOLT,SP/M8X35 | £1.84 | Add to |
019 | 214411700200 | NUT/U/M8 (-100135) | £2.57 | Add to |
020 | 361063100200 | HANGER,SUPPORT | £9.20 | Add to |
021 | V20026060100 | BOLT | N/A | POA |
021A | V21026060100 | BOLT/S M6X10 (292-) | N/A | POA |
022 | V40116000600 | WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-) | £1.64 | Add to |
023 | V41126000600 | WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-) | £1.64 | Add to |
024 | 175255526000 | PIN/12X86 COMP | N/A | POA |
