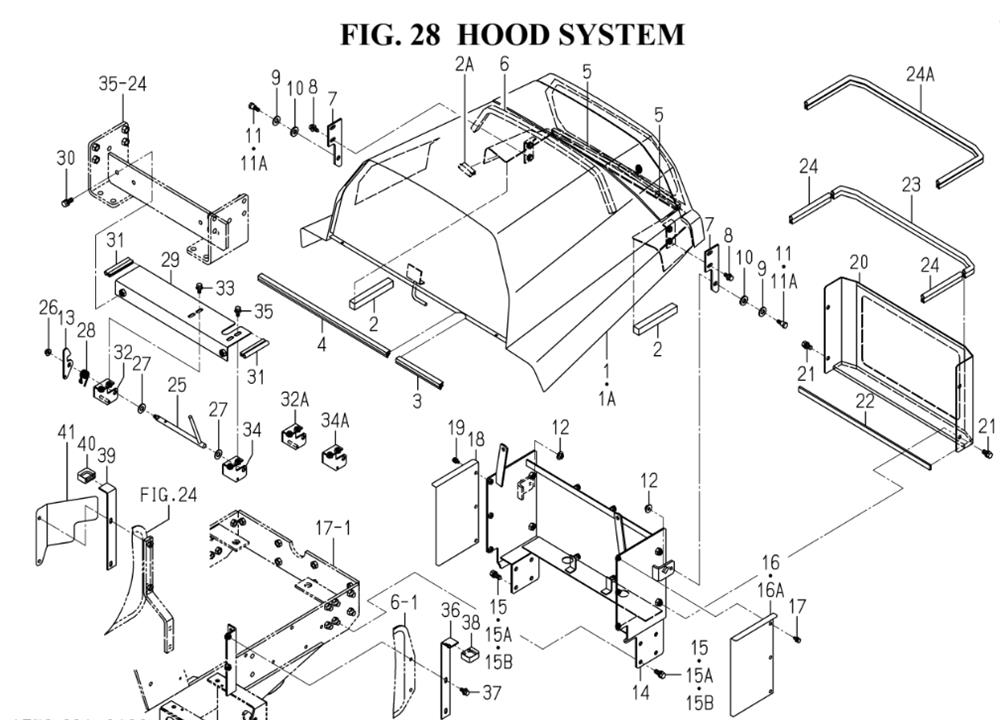

HOOD SYSTEM (1752-601-0100)

HOOD SYSTEM (1752-601-0100) assembly details for Iseki CHASSIS PC SZ330 (1752-097-110-10) SZ330 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001175260121010HOOD/ENGINE COMP(-619)£1,622.40 Add to
001A175260121020HOOD/ENGINE COMP(620-)£1,158.90 Add to
002175260101600INSULATOR/20X20X150 (-70)N/A POA
002A167378001100TRIM/50 (71-)N/A POA
003175260102400INSULATOR/170N/A POA
004175260102500INSULATOR/500N/A POA
005175260102100INSULATOR/10X10X280N/A POA
006175210200700INSULATOR/15X15X650N/A POA
007175260101000PLATE/1/50X150£19.43 Add to
008V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
009V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
010168962100700WASHER/12X26X04£4.04 Add to
011168962100800BOLT£8.49 Add to
011A168962100810BOLT£5.13 Add to
012250260100500NUT/CONICAL WASHER (-100419)£2.10 Add to
013165060100300PLATE/HOOK£5.11 Add to
014175260124000FRAME/HOOD COMPN/A POA
015V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
015AV21156100300BOLT,S/M10X30/7T (-469)N/A POA
015BV21166100350BOLT/SP/M10X35/7TN/A POA
016175260100800PLATE/SIDE/LH (-619)N/A POA
016A175260100810PLATE/SIDE/LH (620-)N/A POA
017V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
018175260101500PLATE/SIDE/RHN/A POA
019V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
020175260126010COVER/REAR COMP£245.35 Add to
021V21126100200BOLT,SEMS£2.30 Add to
022175260100500INSULATOR /15X510N/A POA
023175260100600INSULATOR/560 (-130)N/A POA
024175260102900INSULATOR/150 (-130)N/A POA
024A175260102910INSULATOR/865 (131-)N/A POA
025175260127000LEVER COMPN/A POA
026V36226000800NUT/WASHER/M8£1.77 Add to
027V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
028111040400410SPRING/HT018N/A POA
029175260128010PLATE/L/95X435 COMPN/A POA
030V21126100250BOLT,S/M10X25£2.12 Add to
031165060100900TRIM/90N/A POA
032175260129000PLATE/L/85X90/A COMP (-216)N/A POA
033V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
034175260131000PLATE/L/250X32 COMP (-216)N/A POA
034A175260131010PLATE/L/85X90/B COMP (217-)N/A POA
035V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
036175260133000PLATE/L/250X32 COMPN/A POA
037V21136080250BOLT,SP/M8X25£1.90 Add to
038159310101200STOPPER£9.90 Add to
039175260101400PLATE/L/250X32/RHN/A POA
040159310101200STOPPER£9.90 Add to
041175260103100PLATE/MUFFLER (265-)N/A POA
