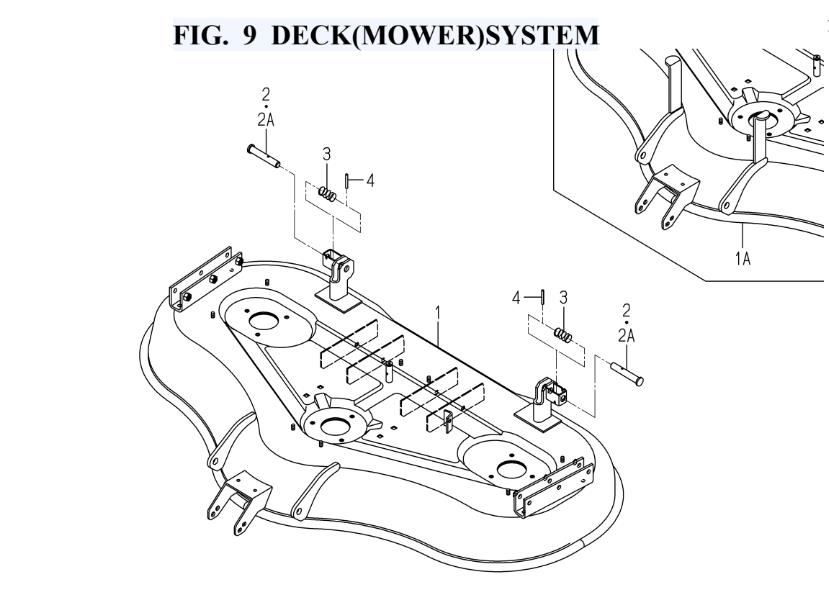

FIG. 9 DECK(MOWER)SYSTEM

FIG. 9 DECK(MOWER)SYSTEM assembly details for Iseki SMM54 SXG22E4 MOWER (8658-097-120-10) SXG323 + SXG326 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001865840231010DECK/MOWER/54/SXG£1,768.32 Add to
001A865840231020DECK/MOWER/54/SXGN/A POA
001A865840231021DECK/MOWER/54/SXGN/A POA
002859560808200PIN/16X96£31.15 Add to
002A859560808210PIN/16X96£6.10 Add to
003156060102800SPRING/HC042 (SSM54 100001-)£5.95 Add to
004V58014050400PIN,SPRING/5X40 W£3.01 Add to
