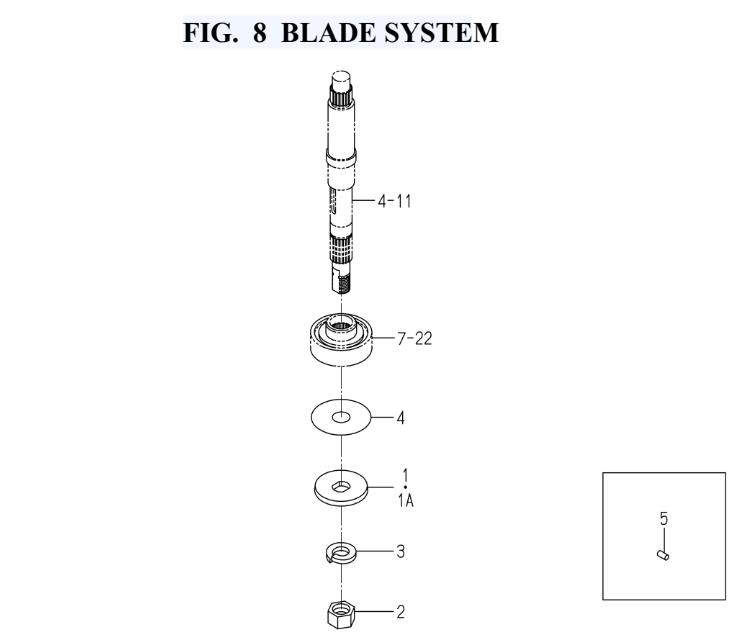

FIG. 8 BLADE SYSTEM

FIG. 8 BLADE SYSTEM assembly details for Iseki SMM54 SXG22E4 MOWER (8658-097-120-10) SXG323 + SXG326 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001859530600500WASHER/20X60X06N/A POA
001A859530600510WASHER/20X60X06£15.67 Add to
002859530600700NUT/M20X1.5£12.27 Add to
003V40116002000WASHER,SP/M20£1.78 Add to
004859530600600SHIM/1.2£11.96 Add to
005865830600300PIN/PARALLEL£2.85 Add to
