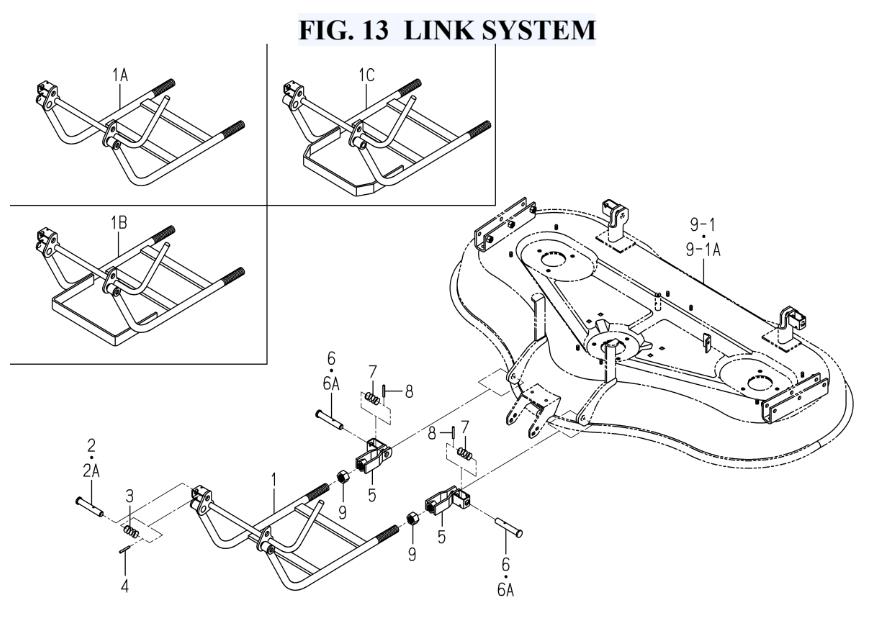

FIG. 13 LINK SYSTEM

FIG. 13 LINK SYSTEM assembly details for Iseki SMM54 SXG22E4 MOWER (8658-097-120-10) SXG323 + SXG326 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	866360821000	ARM/FRONT COMP	N/A	POA
001A	866360821010	ARM/FRONT COMP	£269.40	Add to
001B	866360821020	N/A	£293.19	Add to
001C	866360821030	ARM/FRONT COMP	£282.87	Add to
002	859560808200	PIN/16X96	£31.15	Add to
002A	859560808210	PIN/16X96	£6.10	Add to
003	156060102800	SPRING/HC042 (SSM54 100001-)	£5.95	Add to
004	V58014050400	PIN,SPRING/5X40 W	£3.01	Add to
005	865760872000	FORK/M22 COMP	£59.05	Add to
006	859560808200	PIN/16X96	£31.15	Add to
006A	859560808210	PIN/16X96	£6.10	Add to
007	156060102800	SPRING/HC042 (SSM54 100001-)	£5.95	Add to
008	V58014050400	PIN,SPRING/5X40 W	£3.01	Add to
009	V33446002200	NUT/M22	£6.21	Add to
