FIG. 8 CASE(BEVEL)SYSTEM(SCMA54)(NO.500001-)

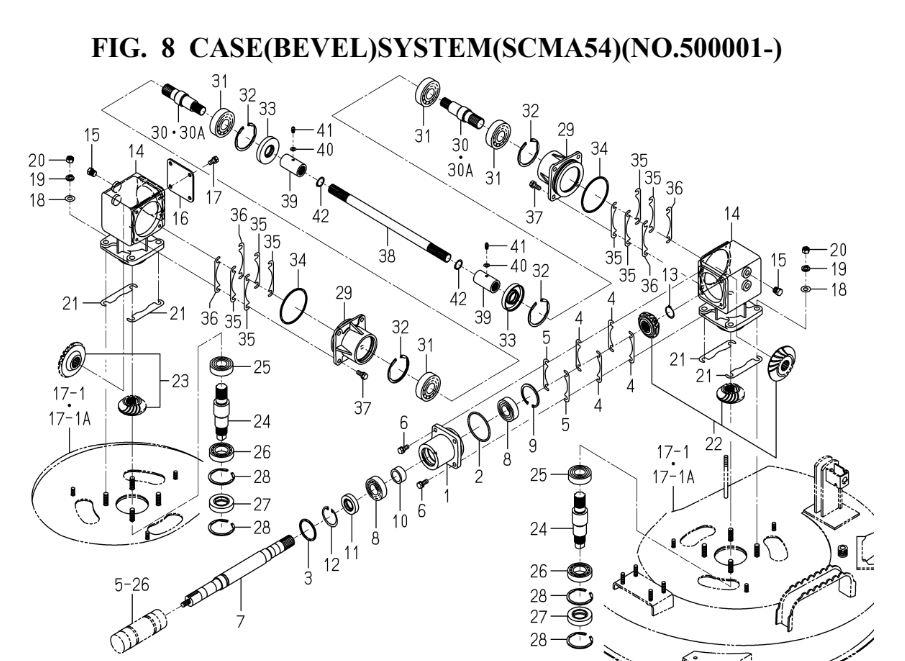

FIG. 8 CASE(BEVEL)SYSTEM(SCMA54)(NO.500001-) assembly details for Iseki PC SCMA48-54 (8663-097-130-20) SXG323 + SXG326 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001867420200120METAL/CASE£138.63 Add to
002V72110310650O-RING/1A,G65£4.79 Add to
003V72010350440O-RING/P44£6.56 Add to
004866320205500SHIM/0.1£2.86 Add to
005866320205600SHIM/0.2£2.86 Add to
006V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
007866520207100SHAFT/LH/54£132.26 Add to
008159422100100BEARING/BALL 6205SH2£19.53 Add to
010867420200300COLLAR/25X34X15£14.77 Add to
011V74412845110SEAL,OIL/TC284511 (SXG19 -6253) (SXG22 -2066)£8.40 Add to
012V70514004500RING,SNAP/45 C£3.60 Add to
013V70514002500RING,SNAP/25C£3.60 Add to
014867420200400CASE/BEVEL£528.01 Add to
015795520102600PLUG,DRAIN (1/4)£7.42 Add to
016867420200600COVER/CASEN/A POA
017V21126080160BOLT,S/M8X16£2.09 Add to
018V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
019V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
020V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
021867020100510SHIM/0.2£3.45 Add to
022867420221000GEAR/B/21-25-21 SET£249.12 Add to
023867420222000GEAR/BEVEL/25-2 SET£174.98 Add to
024867420200700SHAFT/BLADE£82.19 Add to
025159422100100BEARING/BALL 6205SH2£19.53 Add to
026V60011060060BEARING/BALL RB 6006£15.95 Add to
027V74413055120SEAL,OIL/TC305512£14.40 Add to
028V70514005500RING/SNAP£3.96 Add to
029866720100202METAL/INPUT£155.94 Add to
030867420200910SHAFT/CASE£57.81 Add to
030A867420200910SHAFT/CASE£57.81 Add to
031159421800100BEARING/BALL 6305SH2£23.24 Add to
033859520102500SEAL/OIL£11.39 Add to
035859520102100SHIM/0.1£7.23 Add to
036859520102200SHIM/0.2£7.23 Add to
037V21156080200BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)£2.69 Add to
038866520207300SHAFT/JOINT/54£51.57 Add to
039178212205100COUPLING/18X30X55£26.10 Add to
040V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
041V76015000000NIPPLE, GREASE£3.96 Add to
042867420201200RING/SNAP/CS20£2.04 Add to
