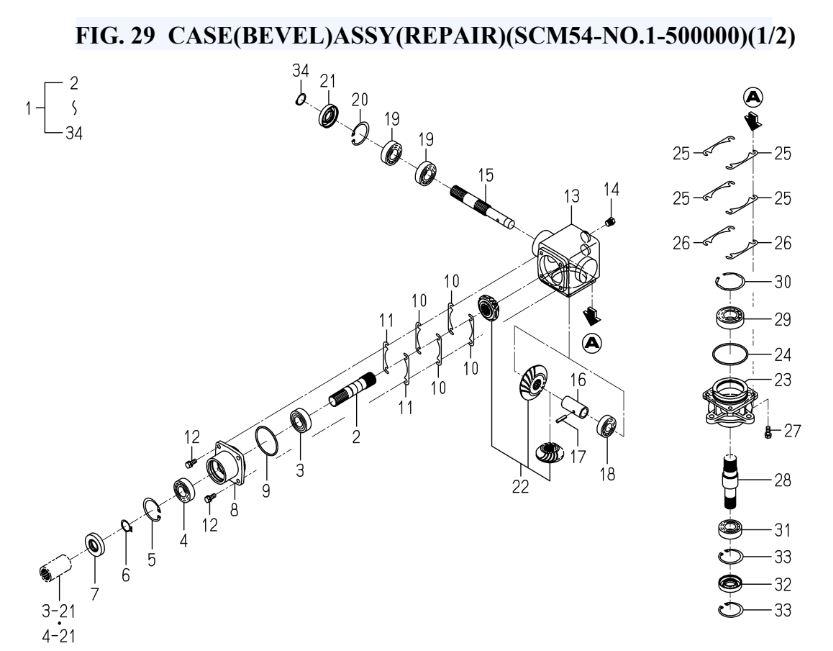

FIG. 29 CASE(BEVEL)ASSY(REPAIR)(SCM54-NO.1-500000)(1/2)

FIG. 29 CASE(BEVEL)ASSY(REPAIR)(SCM54-NO.1-500000)(1/2) assembly details for Iseki PC SCMA48-54 (8663-097-130-20) SXG323 + SXG326 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001866320256010CASE/BEVEL/LH ASSY£1,426.86 Add to
002866320205100SHAFT/LH/REAR£82.67 Add to
003159422100100BEARING/BALL 6205SH2£19.53 Add to
004V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
006V70414002500RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)£2.10 Add to
007V74412552100SEAL,OIL/TC255210£8.87 Add to
008866320205210METAL/BEVELCASE£95.53 Add to
009V72110310650O-RING/1A,G65£4.79 Add to
010866320205500SHIM/0.1£2.86 Add to
011866320205600SHIM/0.2£2.86 Add to
013866320205710CASE/BEVEL/LH£210.89 Add to
014795520102600PLUG,DRAIN (1/4)£7.42 Add to
015866320205810SHAFT/CASE£80.18 Add to
016866320205900HUB/SPACER£10.03 Add to
017V58014060280PIN,SPRING/6X28 W£2.12 Add to
018V60011062040BEARING,RB/6204£14.87 Add to
019V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
021V74412552100SEAL,OIL/TC255210£8.87 Add to
022866320261000GEAR/B/21-25-21 SET£378.53 Add to
023866330105130METAL/BLADE/B£114.49 Add to
024V72110310750O-RING/G75£5.44 Add to
025859520102100SHIM/0.1£7.23 Add to
026859520102200SHIM/0.2£7.23 Add to
028866330105210SHAFT/BLADE/B£96.14 Add to
029V60011062060BEARING,RB/6206 (SXG19 -4724) (SXG22 -1588)£19.53 Add to
031V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
032V74412552100SEAL,OIL/TC255210£8.87 Add to
034172521800600RING/SNAP/CS25£1.77 Add to
035866320257010CASE/BEVEL/RH ASSY£1,043.04 Add to
036866320206210CASE/BEVEL/RH£193.06 Add to
037795520102600PLUG,DRAIN (1/4)£7.42 Add to
038866320205810SHAFT/CASE£80.18 Add to
039866320205900HUB/SPACER£10.03 Add to
040V58014060280PIN,SPRING/6X28 W£2.12 Add to
041V60011062040BEARING,RB/6204£14.87 Add to
042V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
044V74412552100SEAL,OIL/TC255210£8.87 Add to
045866320262000GEAR/BEVEL/25-2 SET£268.45 Add to
046866330105130METAL/BLADE/B£114.49 Add to
047V72110310750O-RING/G75£5.44 Add to
048859520102100SHIM/0.1£7.23 Add to
049859520102200SHIM/0.2£7.23 Add to
051866330105210SHAFT/BLADE/B£96.14 Add to
052V60011062060BEARING,RB/6206 (SXG19 -4724) (SXG22 -1588)£19.53 Add to
054V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
055V74412552100SEAL,OIL/TC255210£8.87 Add to
057172521800600RING/SNAP/CS25£1.77 Add to
