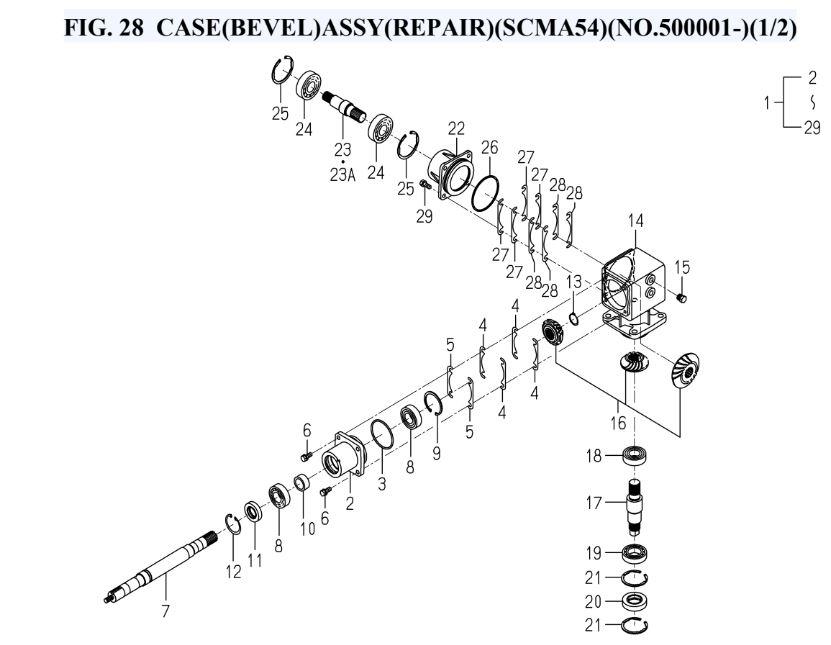

FIG. 28 CASE(BEVEL)ASSY(REPAIR)(SCMA54)(NO.500001-)(1/2)

FIG. 28 CASE(BEVEL)ASSY(REPAIR)(SCMA54)(NO.500001-)(1/2) assembly details for Iseki PC SCMA48-54 (8663-097-130-20) SXG323 + SXG326 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	866520271000	CASE/BEVEL/LH ASSY	£1,370.57	Add to
002	867420200120	METAL/CASE	£138.63	Add to
003	V72110310650	O-RING/1A,G65	£4.79	Add to
004	866320205500	SHIM/0.1	£2.86	Add to
005	866320205600	SHIM/0.2	£2.86	Add to
006	V21156080200	BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)	£2.69	Add to
007	866520207100	SHAFT/LH/54	£132.26	Add to
008	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
010	867420200300	COLLAR/25X34X15	£14.77	Add to
011	V74412845110	SEAL,OIL/TC284511 (SXG19 -6253) (SXG22 -2066)	£8.40	Add to
012	V70514004500	RING,SNAP/45 C	£3.60	Add to
013	V70414002500	RING,SNAP/25 C (SXG19 -6253) (SXG22 -2066)	£2.10	Add to
014	867420200400	CASE/BEVEL	£528.01	Add to
015	795520102600	PLUG,DRAIN (1/4)	£7.42	Add to
016	867420221000	GEAR/B/21-25-21 SET	£249.12	Add to
017	867420200700	SHAFT/BLADE	£82.19	Add to
018	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
019	V60011060060	BEARING/BALL RB 6006	£15.95	Add to
020	V74413055120	SEAL,OIL/TC305512	£14.40	Add to
021	V70514005500	RING/SNAP	£3.96	Add to
022	866720100202	METAL/INPUT	£155.94	Add to
023	867420200910	SHAFT/CASE	£57.81	Add to
023A	867420200910	SHAFT/CASE	£57.81	Add to
024	159421800100	BEARING/BALL 6305SH2	£23.24	Add to
027	859520102100	SHIM/0.1	£7.23	Add to
028	859520102200	SHIM/0.2	£7.23	Add to
029	V21156080200	BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)	£2.69	Add to
030	867420232000	CASE/BEVEL/RH ASSY	£908.10	Add to
031	867420200400	CASE/BEVEL	£528.01	Add to
032	795520102600	PLUG,DRAIN (1/4)	£7.42	Add to
033	867420200600	COVER/CASE	N/A	POA
034	V21126080160	BOLT,S/M8X16	£2.09	Add to
035	867420222000	GEAR/BEVEL/25-2 SET	£174.98	Add to
036	867420200700	SHAFT/BLADE	£82.19	Add to
037	159422100100	BEARING/BALL 6205SH2	£19.53	Add to
038	V60011060060	BEARING/BALL RB 6006	£15.95	Add to
039	V74413055120	SEAL,OIL/TC305512	£14.40	Add to
040	V70514005500	RING/SNAP	£3.96	Add to
041	866720100202	METAL/INPUT	£155.94	Add to
042	867420200910	SHAFT/CASE	£57.81	Add to
042A	867420200910	SHAFT/CASE	£57.81	Add to
043	159421800100	BEARING/BALL 6305SH2	£23.24	Add to
046	859520102100	SHIM/0.1	£7.23	Add to
047	859520102200	SHIM/0.2	£7.23	Add to
048	V21156080200	BOLT,S/M8X20/7T (SXG19 -4724) (SXG22 -1590)	£2.69	Add to
