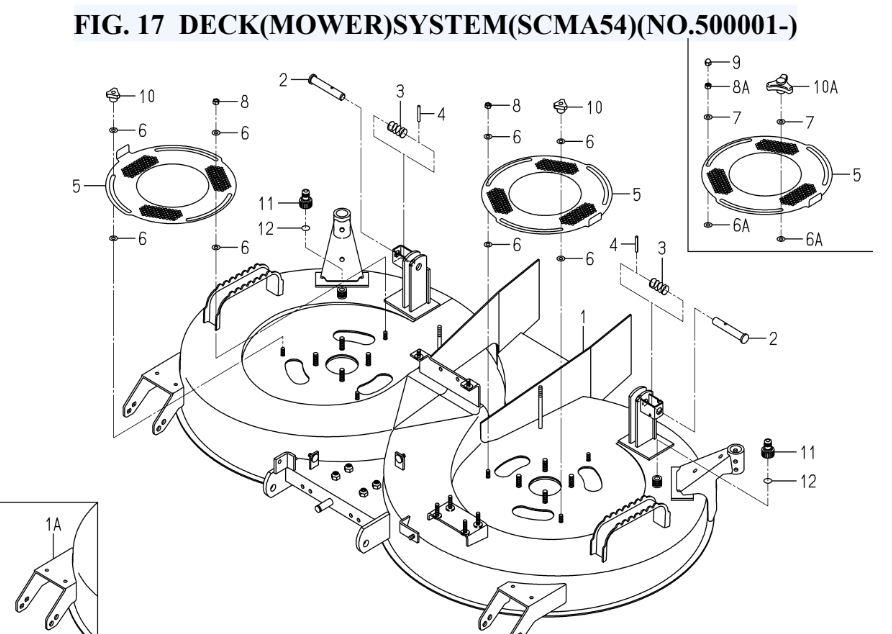

FIG. 17 DECK(MOWER)SYSTEM(SCMA54)(NO.500001-)

FIG. 17 DECK(MOWER)SYSTEM(SCMA54)(NO.500001-) assembly details for Iseki PC SCMA48-54 (8663-097-130-20) SXG323 + SXG326 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001866540271000DECK/MOWER/54/326(500001-)£1,515.64 Add to
001A866540271020DECK/MOWER/54/326£1,857.60 Add to
001A866540271021DECK/MOWER/54/326£1,705.20 Add to
002859560808210PIN/16X96£6.10 Add to
003156060102800SPRING/HC042 (SSM54 100001-)£5.95 Add to
004V58014050400PIN,SPRING/5X40 W£3.01 Add to
005867440200100COVER/METAL£215.64 Add to
005867440200101COVER/METALN/A POA
007V41170000800WASHER,PL/M8£2.88 Add to
008171931200100U-NUT (100136-)£2.49 Add to
008AV30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
009V34112000800NUT, CAP/M8 (104713-)(-630)£2.57 Add to
010325670200200NUT, KNOB£8.00 Add to
010A250050102210NUT/KNOB/M08£6.64 Add to
011866340200210PLUG/HOSE/A£9.30 Add to
012867440200200PLATE/PIPE£13.20 Add to
