CASE(BEVEL)SYSTEM

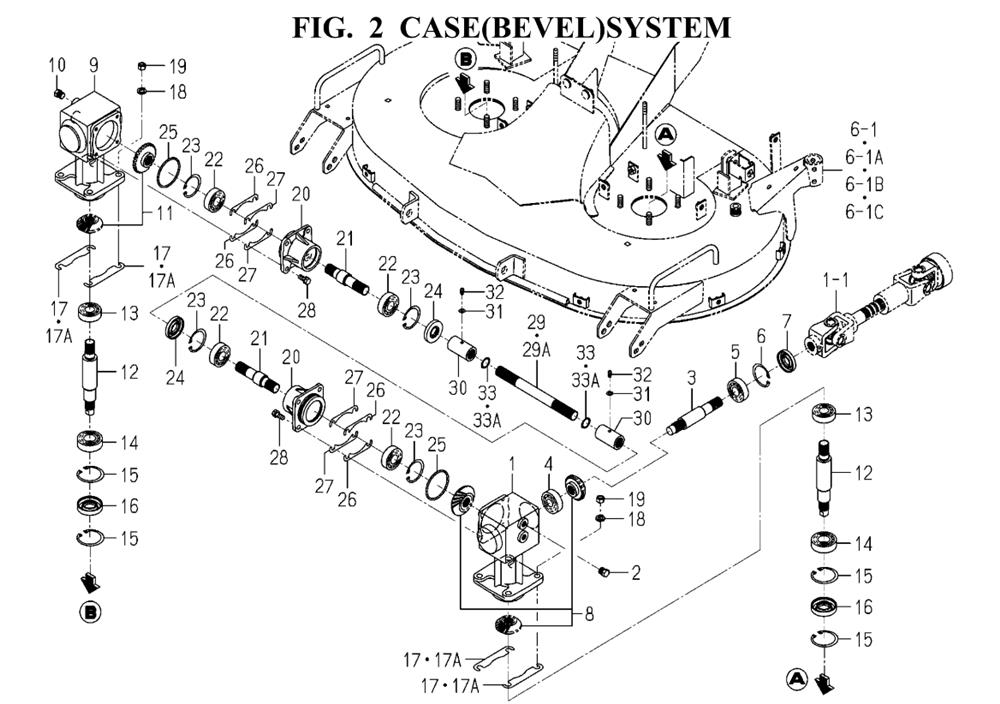

CASE(BEVEL)SYSTEM assembly details for Iseki Mower SCMA40-SXG216E4(8670-097-210-20) SXG216 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001867020100100CASE/BEVEL/LH£235.05 Add to
002795520102600PLUG,DRAIN (1/4)£7.42 Add to
003867020100200SHAFT/INPUT£100.73 Add to
004V60011063030BEARING,RB/6303£11.16 Add to
005V60011062040BEARING,RB/6204£14.87 Add to
006V70514004700RING,SNAP/47 C£2.98 Add to
007V74412047070SEAL,OIL/TC20477£7.48 Add to
008867020121000GEAR/BEVEL/19-23-19£258.69 Add to
009867020100300CASE/BEVEL/RH£203.60 Add to
010795520102600PLUG,DRAIN (1/4)£7.42 Add to
011867020122000GEAR/BEVEL/23-1 SET£153.02 Add to
012867020100400SHAFT/BLADE£128.59 Add to
013V60011062040BEARING,RB/6204£14.87 Add to
014V60011062050BEARING,RB/6205 (SXG19 -4724) (SXG22 -1588)£16.47 Add to
015V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
016V74412552100SEAL,OIL/TC255210£8.87 Add to
017867020100500SHIM/0.2£2.92 Add to
017A867020100510SHIM/0.2£3.45 Add to
018V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
019V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
020867020100600METAL/CASE£73.89 Add to
021867020100700SHAFT/CASE£92.67 Add to
022V60011062040BEARING,RB/6204£14.87 Add to
023V70514004700RING,SNAP/47 C£2.98 Add to
024V74412047070SEAL,OIL/TC20477£7.48 Add to
025V72110310600O-RING/G60£3.49 Add to
026866320205500SHIM/0.1£2.86 Add to
027866320205600SHIM/0.2£2.86 Add to
028V21126080200BOLT,S/M8X20£2.09 Add to
029867020100800SHAFT/JOINT£69.15 Add to
029A867020100810SHAFT/JOINT£59.71 Add to
030178212205100COUPLING/18X30X55£26.10 Add to
031V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
032V76015000000NIPPLE, GREASE£3.96 Add to
033V70414002000RING,SNAP/20C£1.92 Add to
033A867220201200RING/SNAP/CS20N/A POA
