INJECTION PUMP

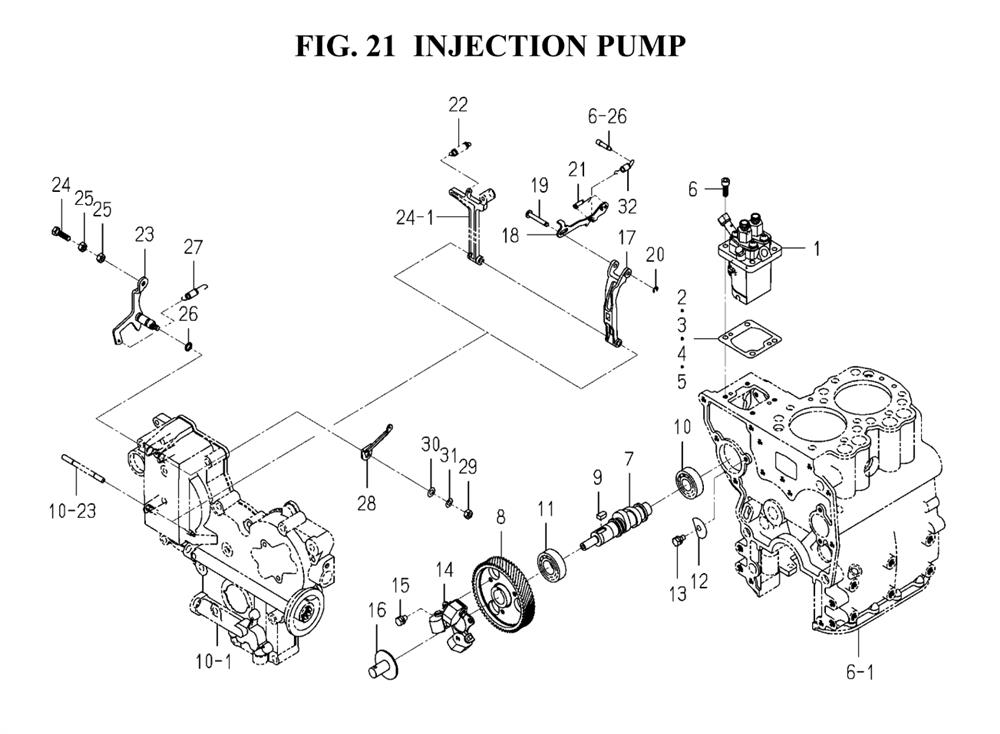

INJECTION PUMP assembly details for Iseki Engine E269G(NO.1-30000)SXG216H5(1782-097-320-10) SXG216 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001621560014700INJECTIONPUMP ASSY£668.63 Add to
002621975203600SHIM/INJECTIONPUMP£3.27 Add to
003621975203700SHIM/INJECTIONPUMP£3.27 Add to
004621975203800SHIM/INJECTIONPUMP£3.27 Add to
005621975203900SHIM/INJECTIONPUMP£3.27 Add to
006620905600100BOLT/M6X18N/A POA
007621562103610CAMSHAFT/INJECTION PN/A POA
008621252400240GEAR/INJECTIONPUMPN/A POA
009620973000500KEY/07X05X09 (20508)£4.04 Add to
010V60011062030BEARING,RB/6203£13.01 Add to
011172920200100BEARING/BALL (211435-)N/A POA
012621253501010PLATE/THRUST/INJECTIONN/A POA
013V21056060120BOLT, S/M6X12/7T (20508)£1.53 Add to
014621552000100FLYWEIGHTN/A POA
015620903004300BOLT/M6X10N/A POA
016621552600400THRUSTPIECE£41.10 Add to
017621554100110ARM/FLOATING COMP£32.58 Add to
018621554300320LINK/CONTROLN/A POA
019621554200200PIN, CONTROL LINKN/A POA
020V71014000400RING, SNAP/4 E£1.43 Add to
021621554900300SPRING, SETTING£3.77 Add to
022621553100100SPRING GOVERNORN/A POA
023621554100310LEVER,CONTROL£19.78 Add to
024620904400100BOLT/M6X18£3.03 Add to
025V30226000600NUT/M6£1.35 Add to
026V72010190080O-RING/1A,P8£3.06 Add to
027620958000210SPRING,RETURN£3.37 Add to
028621554900710ARM/CONTROL (-180997)N/A POA
029V30126000600NUT/M6£1.64 Add to
030V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
031V40116000600WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)£1.64 Add to
032621554900810SPRING/STARTING£6.00 Add to
