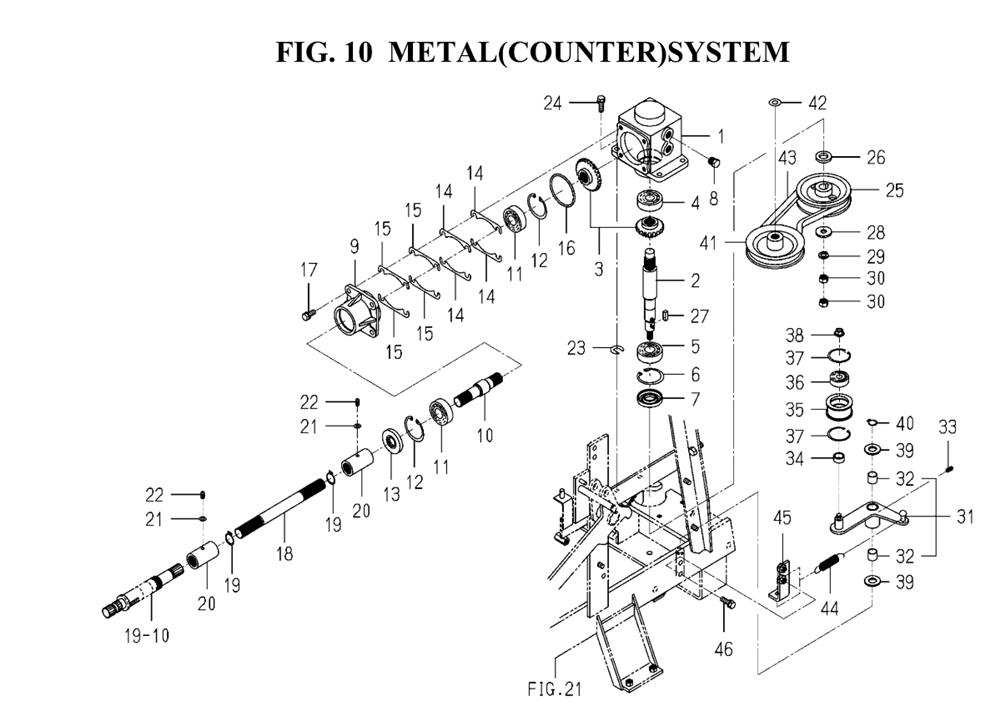

METAL(COUNTER)SYSTEM assembly details for Iseki Chassis (1782-097-320-10) SXG216 model
Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
001 | 178212200110 | METAL/COUNTER | N/A | POA |
002 | 178212200210 | SHAFT/OUTPUT | £164.00 | Add to |
003 | 867020122000 | GEAR/BEVEL/23-1 SET | £153.02 | Add to |
004 | V60011063030 | BEARING,RB/6303 | £11.16 | Add to |
005 | V60011062040 | BEARING,RB/6204 | £14.87 | Add to |
006 | V70514004700 | RING,SNAP/47 C | £2.98 | Add to |
007 | V74412047070 | SEAL,OIL/TC20477 | £7.48 | Add to |
008 | 795520102600 | PLUG,DRAIN (1/4) | £7.42 | Add to |
009 | 867020100600 | METAL/CASE | £73.89 | Add to |
010 | 867020100700 | SHAFT/CASE | £92.67 | Add to |
011 | V60011062040 | BEARING,RB/6204 | £14.87 | Add to |
012 | V70514004700 | RING,SNAP/47 C | £2.98 | Add to |
013 | V74412047070 | SEAL,OIL/TC20477 | £7.48 | Add to |
014 | 866320205500 | SHIM/0.1 | £2.86 | Add to |
015 | 866320205600 | SHIM/0.2 | £2.86 | Add to |
016 | V72110310600 | O-RING/G60 | £3.49 | Add to |
017 | V21126080200 | BOLT,S/M8X20 | £2.09 | Add to |
018 | 867020100810 | SHAFT/JOINT | £59.71 | Add to |
019 | 867420201200 | RING/SNAP/CS20 | £2.04 | Add to |
020 | 178212205100 | COUPLING/18X30X55 | £26.10 | Add to |
021 | V41126000600 | WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-) | £1.64 | Add to |
022 | V76015000000 | NIPPLE, GREASE | £3.96 | Add to |
023 | 212034000400 | SHIM, PLANTING B/0.5 | £2.02 | Add to |
024 | V21166080250 | BOLT,SP/M8X25/7T | N/A | POA |
025 | 178212200300 | PULLEY/VB097 | £55.58 | Add to |
026 | 178212201300 | WASHER/17X30X05 | N/A | POA |
027 | 375012101100 | KEY | £7.58 | Add to |
028 | 365917000300 | WASHER/11X30X3 | £2.89 | Add to |
029 | V40116001000 | WASHER,SP/M10 (100545-) | £1.64 | Add to |
030 | V30426001000 | NUT/M10 (SXG19 3624-) (SXG22 1179-) | £2.10 | Add to |
031 | 178212270010 | ARM/TENSION/HST ASSY | £73.23 | Add to |
032 | 367613301300 | BUSH,15X17X15 | £5.94 | Add to |
033 | V76015000000 | NIPPLE, GREASE | £3.96 | Add to |
034 | 178212205200 | COLLAR/15X20X09 | £7.98 | Add to |
035 | 178212201400 | PULLEY/FT045X020 | £35.03 | Add to |
036 | V60015062020 | BEARING,RB/6202SS | £16.42 | Add to |
037 | V70514003500 | RING,SNAP/35 C (-100295) | £2.64 | Add to |
038 | V36226000800 | NUT/WASHER/M8 | £1.77 | Add to |
039 | V41126001400 | WASHER,PL/M14 (SSM60 100001-) | £1.91 | Add to |
040 | V70414001500 | RING,SNAP/15 C | £1.76 | Add to |
041 | 178212221010 | PULLEY/VB101 COMP | £47.48 | Add to |
042 | V41126001000 | WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-) | £1.52 | Add to |
043 | 178212201200 | BELT/VB027 | £43.16 | Add to |
044 | 110441000700 | SPRING/HE074 | £9.15 | Add to |
045 | 178212272000 | PLATE/L/25X81 COMP | N/A | POA |
046 | V21156080250 | BOLT,S/M8X25/7T (SXG19 -6253) (SXG22 -2066) | £2.59 | Add to |
