PTO(MOWER)SYSTEM

PTO(MOWER)SYSTEM assembly details for Iseki Chassis (1782-097-320-00) SXG216 model

Parts list

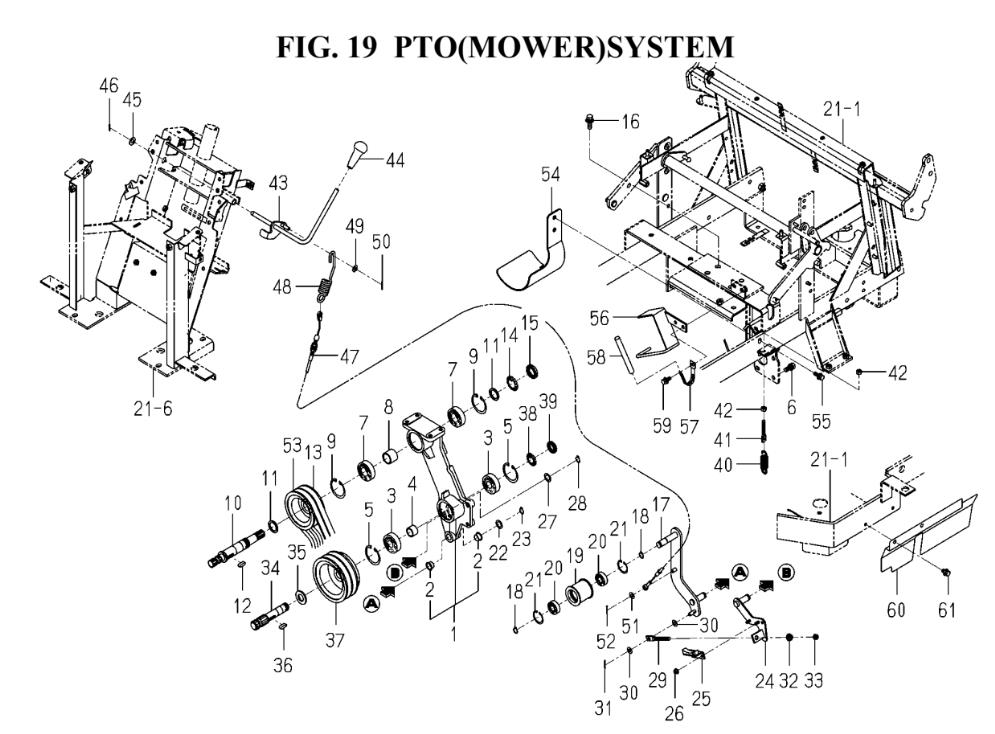

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001178233431020METAL/PTO ASSY£138.63 Add to
002250240700110BUSH/15X17X11£10.96 Add to
003V60015063040BEARING,RB/6304SS£13.28 Add to
004178233400600COLLAR/21X25X18£4.82 Add to
005V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
006V21156100250BOLT,S/M10X25/7T (SXG19 -6253) (SXG22 -2066) (-100050)£3.49 Add to
007172920201500BEARING/BALL£8.90 Add to
008178233400300COLLAR/26X32X25£5.48 Add to
009V70514005200RING,SNAP/52C (SXG19 -6253) (SXG22 -2066)£3.96 Add to
010178233402300SHAFT/INPUT£108.38 Add to
011367052000800WASHER/25X34X02N/A POA
012111871600100KEY/7X7X22£2.70 Add to
013178233402100PULLEY/V2B104£104.30 Add to
014V67140000500WASHER, ADAPTOR/AW05£3.78 Add to
015V67020000500NUT,ADAPTER/AN05£6.56 Add to
016V21166100300BOLT,SP/M10X30/7T (470-)£2.65 Add to
017178233441000ARM/TENSION COMP£54.59 Add to
018V70414001500RING,SNAP/15 C£1.76 Add to
019866320106210PULLY/FT050X046£84.02 Add to
020V60015062020BEARING,RB/6202SS£16.42 Add to
021V70514003500RING,SNAP/35 C (-100295)£2.64 Add to
022351720500700WASHER£2.18 Add to
023V70414001500RING,SNAP/15 C£1.76 Add to
024178233427010ARM/PTO/BRAKE COMP£27.02 Add to
025172833428000LINING/PTOBRAKE COMP£18.32 Add to
026V36026000600NUT/WASHER/M6£1.47 Add to
027351720500700WASHER£2.18 Add to
028V70414001500RING,SNAP/15 C£1.76 Add to
029381411400100ROD/M8X92N/A POA
030V41126000800WASHER, PL/M8£1.64 Add to
031V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
032V36226000800NUT/WASHER/M8£1.77 Add to
033V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
034178233402400SHAFT/PTO£87.73 Add to
035797050500500WASHER£5.95 Add to
036111871600100KEY/7X7X22£2.70 Add to
037178233402200PULLEY/V2B123£122.77 Add to
038V67140000400WASHER,ADAPTER/AW04£4.57 Add to
039V67020000400NUT,ADAPTER/AN04£5.21 Add to
040110541000300SPRING/HE067£8.87 Add to
041383820300100ROD/08X057£8.86 Add to
042V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
043172833491000LEVER/PTO COMPN/A POA
044170533300100GRIP/PTO£7.70 Add to
045V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
046V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
047178233453010CABLE/PTO ASSY£24.68 Add to
048170533200600SPRING/HE138£15.02 Add to
049V41126000800WASHER, PL/M8£1.64 Add to
050V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
051V41126000800WASHER, PL/M8£1.64 Add to
052V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
053178233402500BELT/VB031£69.35 Add to
054178233471000GUIDE/BELT/LOWE COMP£32.59 Add to
055V21136080250BOLT,SP/M8X25£1.90 Add to
056178233444000STOPPER/BELT COMPN/A POA
057165065001500CLAMPN/A POA
058165065001700TUBE/120£2.25 Add to
059V21136080200BOLT,SP/M8X20 (SXG19 -9113) (SXG22 -3049)£2.10 Add to
060178233401430COVER/JOINT£20.31 Add to
061V21136080160BOLT,SP/M8X16£2.10 Add to
