METAL(COUNTER)SYSTEM

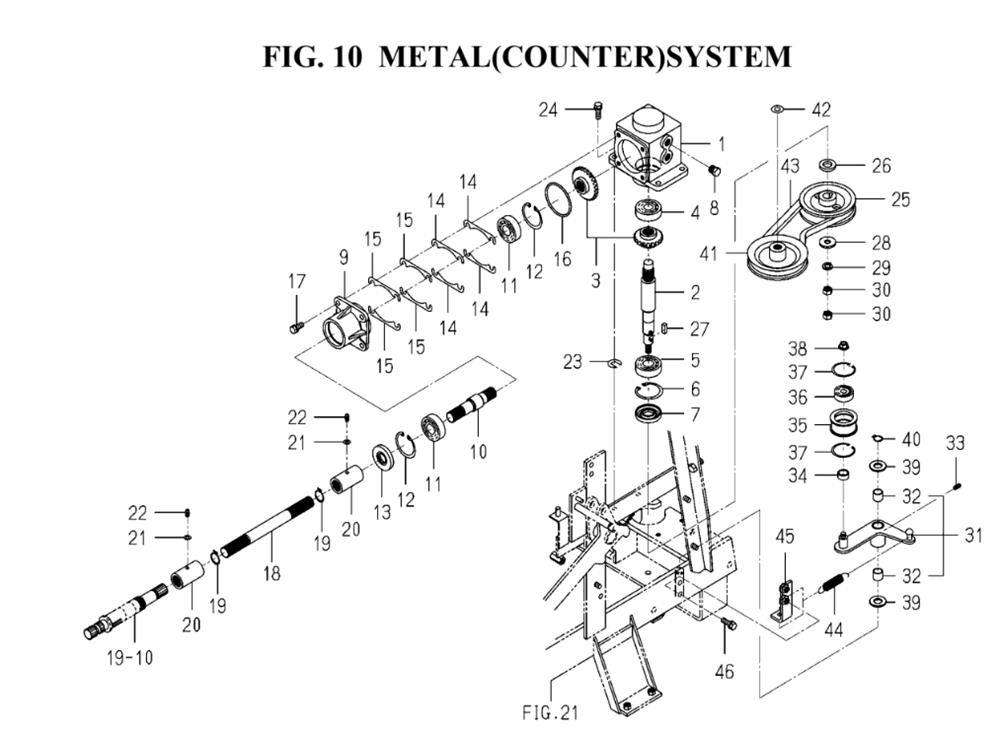

METAL(COUNTER)SYSTEM assembly details for Iseki Chassis (1782-097-320-00) SXG216 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001178212200110METAL/COUNTERN/A POA
002178212200210SHAFT/OUTPUT£164.00 Add to
003867020122000GEAR/BEVEL/23-1 SET£153.02 Add to
004V60011063030BEARING,RB/6303£11.16 Add to
005V60011062040BEARING,RB/6204£14.87 Add to
006V70514004700RING,SNAP/47 C£2.98 Add to
007V74412047070SEAL,OIL/TC20477£7.48 Add to
008795520102600PLUG,DRAIN (1/4)£7.42 Add to
009867020100600METAL/CASE£73.89 Add to
010867020100700SHAFT/CASE£92.67 Add to
011V60011062040BEARING,RB/6204£14.87 Add to
012V70514004700RING,SNAP/47 C£2.98 Add to
013V74412047070SEAL,OIL/TC20477£7.48 Add to
014866320205500SHIM/0.1£2.86 Add to
015866320205600SHIM/0.2£2.86 Add to
016V72110310600O-RING/G60£3.49 Add to
017V21126080200BOLT,S/M8X20£2.09 Add to
018867020100810SHAFT/JOINT£59.71 Add to
019867420201200RING/SNAP/CS20£2.04 Add to
020178212205100COUPLING/18X30X55£26.10 Add to
021V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
022V76015000000NIPPLE, GREASE£3.96 Add to
023212034000400SHIM, PLANTING B/0.5£2.02 Add to
024V21166080250BOLT,SP/M8X25/7TN/A POA
025178212200300PULLEY/VB097£55.58 Add to
026178212201300WASHER/17X30X05N/A POA
027375012101100KEY£7.58 Add to
028365917000300WASHER/11X30X3£2.89 Add to
029V40116001000WASHER,SP/M10 (100545-)£1.64 Add to
030V30426001000NUT/M10 (SXG19 3624-) (SXG22 1179-)£2.10 Add to
031178212270010ARM/TENSION/HST ASSY£73.23 Add to
032367613301300BUSH,15X17X15£5.94 Add to
033V76015000000NIPPLE, GREASE£3.96 Add to
034178212205200COLLAR/15X20X09£7.98 Add to
035178212201400PULLEY/FT045X020£35.03 Add to
036V60015062020BEARING,RB/6202SS£16.42 Add to
037V70514003500RING,SNAP/35 C (-100295)£2.64 Add to
038V36226000800NUT/WASHER/M8£1.77 Add to
039V41126001400WASHER,PL/M14 (SSM60 100001-)£1.91 Add to
040V70414001500RING,SNAP/15 C£1.76 Add to
041178212221010PULLEY/VB101 COMP£47.48 Add to
042V41126001000WASHER,PL/M10 (SXG19 -6253) (SXG22 -2066) (100545-)£1.52 Add to
043178212201200BELT/VB027£43.16 Add to
044110441000700SPRING/HE074£9.15 Add to
045178212272000PLATE/L/25X81 COMPN/A POA
046V21156080250BOLT,S/M8X25/7T (SXG19 -6253) (SXG22 -2066)£2.59 Add to
